101364 Model FT2
3.2.5. Remote Switch Wiring
A remote switch can be used to reset the Totalizer and elapsed time, if enabled by the
programming mode. The switch contacts are de-bounced on the FT2 board. There is no polarity
requirement on these connections. Use TS2-12 and TS2-13.
When the 2 curve option is ordered the switch can be used to switch between curves.

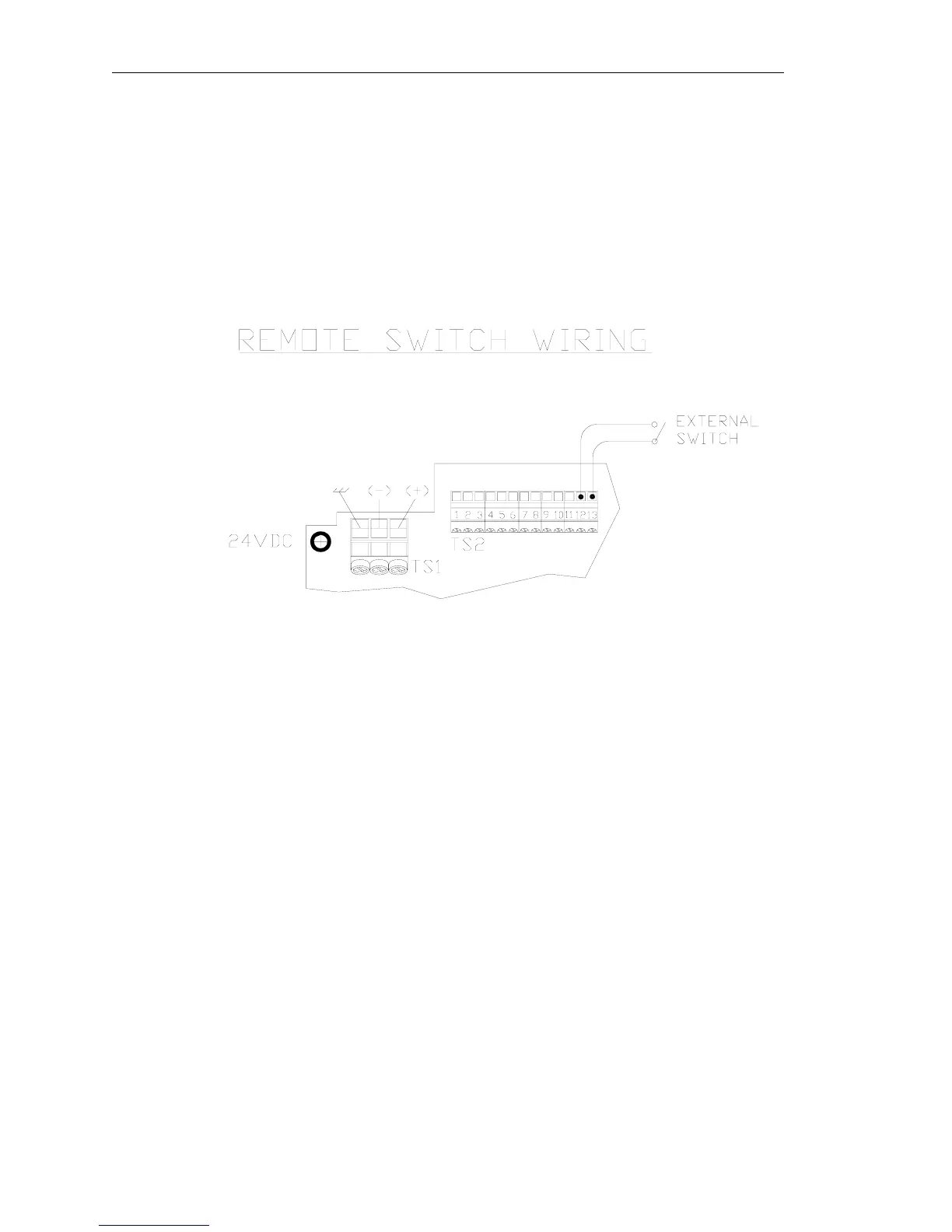

Figure 3-6 Remote Switch Wiring
Fox Thermal Instruments Inc., 399 Reservation Road, Marina, CA 93933 Page 21
