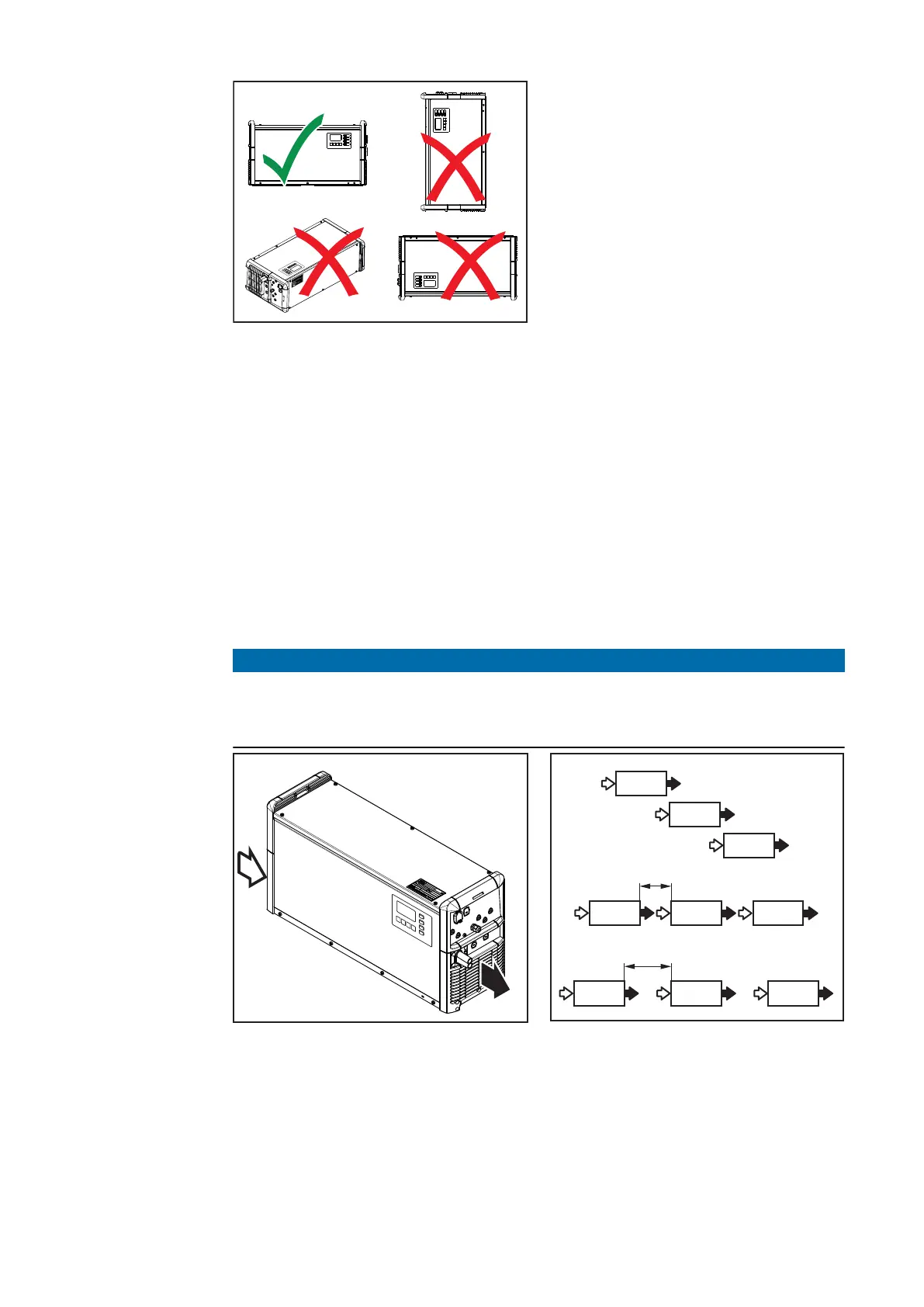

The device may only be operated in a
horizontal position.
The air surrounding the charger must be kept free from battery acid vapours. You
should therefore avoid mounting the device directly above the battery that is to
be charged.
Cooling air
The charger must be set up in such a way that the cooling air can flow unim-
peded through the vents in the housing that are provided for that purpose. En-
sure that there is always a minimum clearance of 0.2 m (7.874 in.) around the air
inlets and outlets. The surrounding air must be free from
-
Excessive dust
-
Electrically conductive particles (carbon black or swarf)
-
Heat sources
Cooling air is drawn in and flows out as indicated by the arrows in the following
illustrations.
NOTE!
Danger due to partially or fully covered air inlets and outlets.
This can result in damage to property.
▶
If several chargers are set up one behind the other, they should be offset.
If the chargers are arranged in a line one behind the other without being offset,
the space between the chargers must be as follows:
a)
8 kW: Minimum distance 30 cm (11.81 in.)
b)
16 kW: Minimum distance 60 cm (1 ft. 11.62 in.)
