Download
-
The data relating to the logged charging parameters stored in the device's
datalogger is saved to the USB flash drive for the I-SPoT VIEWER.
-
Additionally, events as well as the device settings and user curves (configura-
tion) are saved.
-
The following time ranges can be selected for the datalogger:
1 month
3 months
Everything
Since last time
Download optional
The following options are available:
-
I-SPoT VIEWER
The logged data is saved in the same way as for the "Download" function, but
saving only the I-SPoT VIEWER data.
-
Save datalogger
The logged data is saved in the same way as for the "Download" function, but
is saved as "csv" files rather than in the I-SPoT VIEWER format.
(Automatically created folder structure for the ".csv" files: *
Fronius\<device serial number>\Charges\<yyyymmdd>\<hhmmss.csv>)
-
Save events.
Events are saved to the USB flash drive.
-
Save configuration.
The device settings are saved to the USB flash drive.
Load configuration
-
Loads a suitable device configuration stored on the USB flash drive onto the
device.
Load dealer text
-
A text file can be loaded from the USB flash drive that is displayed as soon
as the device enters an error state.
-
The text file can, for example, contain the contact details of the distributor.
-
The file must be saved on the USB flash drive as a ".txt" file in "unicode"
format.
-
The file name must be "dealer.txt".
-
The number of characters is restricted to 99.
* If a USB flash drive is connected while charging is in progress, the csv
files are saved directly to the USB flash drive. In this case, the folder
structure is also created automatically and differs due to the presence of
the "Datalog" folder instead of the "Charges" folder.

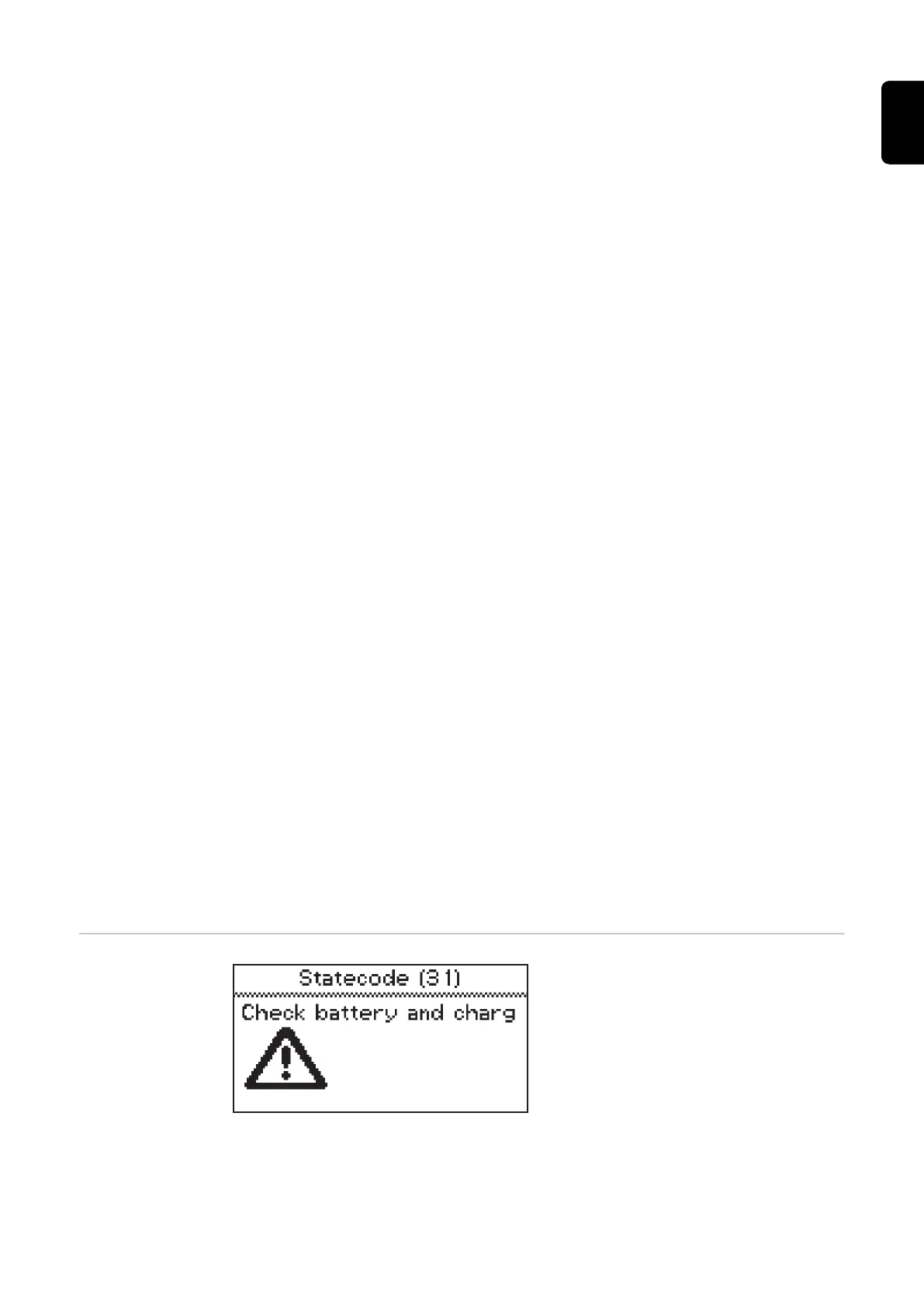

Status codes
If a fault occurs during operation, specific status codes may be displayed. Faults
can result from the following:
51
EN
