The consumed energy display is a standard value and can deviate from the actual
amount of energy by up to 5% at nominal output. At lower power levels the devi-
ation may be higher.
History mode History mode provides information about the parameters for all the stored char-

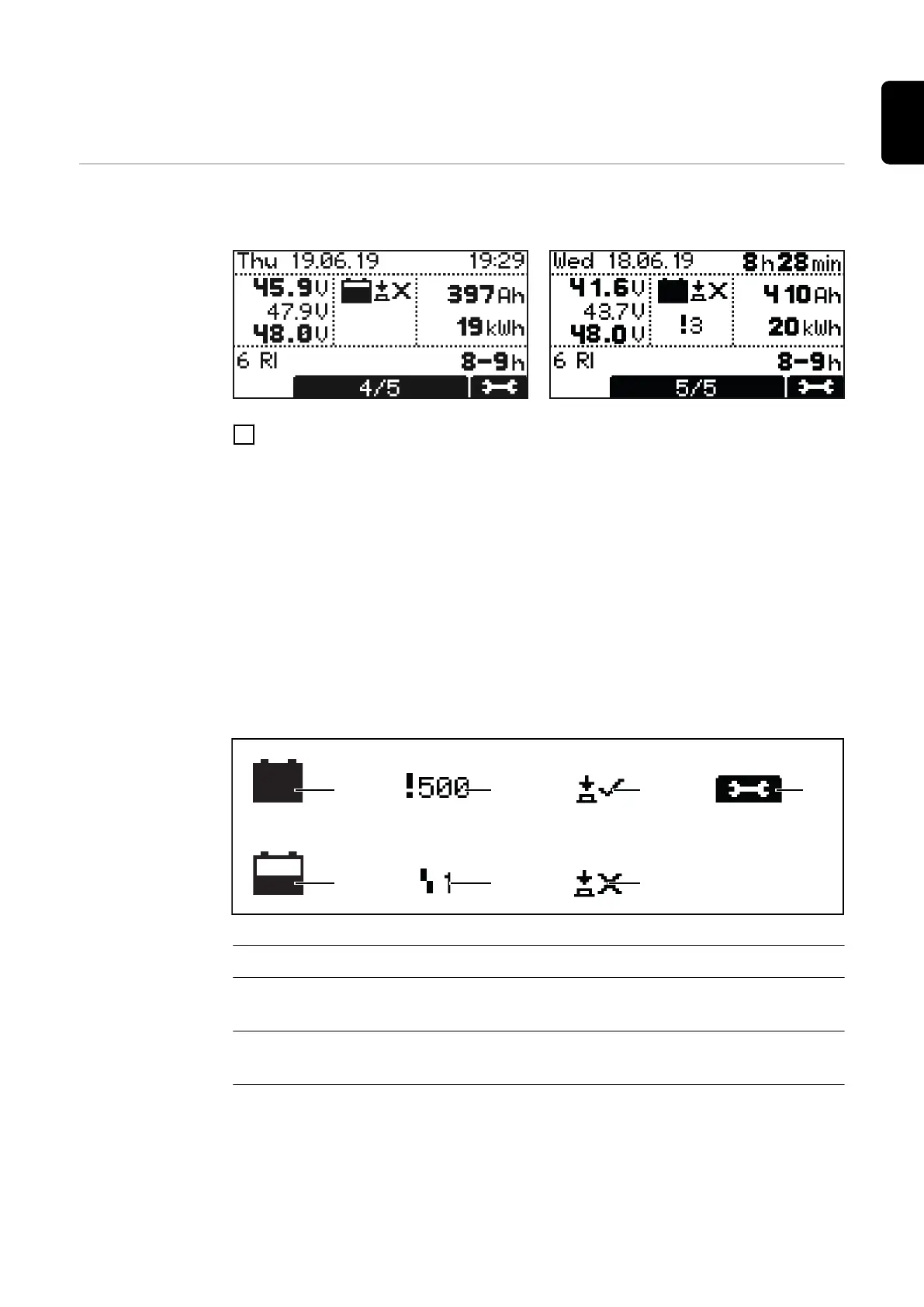

ging processes. In order to show changing or different displays, two versions of
the display window are shown below:
1
Use the "Up/Down" keys to switch between the pages for each stored char-
ging process.
Contents of the display window
-
Charge start date, e.g.: Thursday, 19/06/14.
-
Charge start time, e.g.: 19:29 or charging time, e.g.: 8 h 28 min.
-
Voltage at charge start, e.g.: 45.9 V.
-
Voltage after 5 minutes, e.g.: 47.9 V.
-
Voltage at charge end, e.g.: 48.0 V.
-
Ah consumed, e.g.: 397 Ah.
-
kWh consumed, e.g.: 19 kWh.
-
Charging characteristic, e.g.: 6 RI.
-
Set charging time, e.g.: 8 - 9 h or set Ah, e.g.: 400 Ah or set charge end time
(not shown).
Symbols shown
No. Function
(1) Full battery
Charging has been completed.
(2) Empty battery
Charging has not been completed.
(3) Exclamation mark with number
Warning has been issued with the corresponding status code. More in-
formation can be found in the "Status codes" section.
