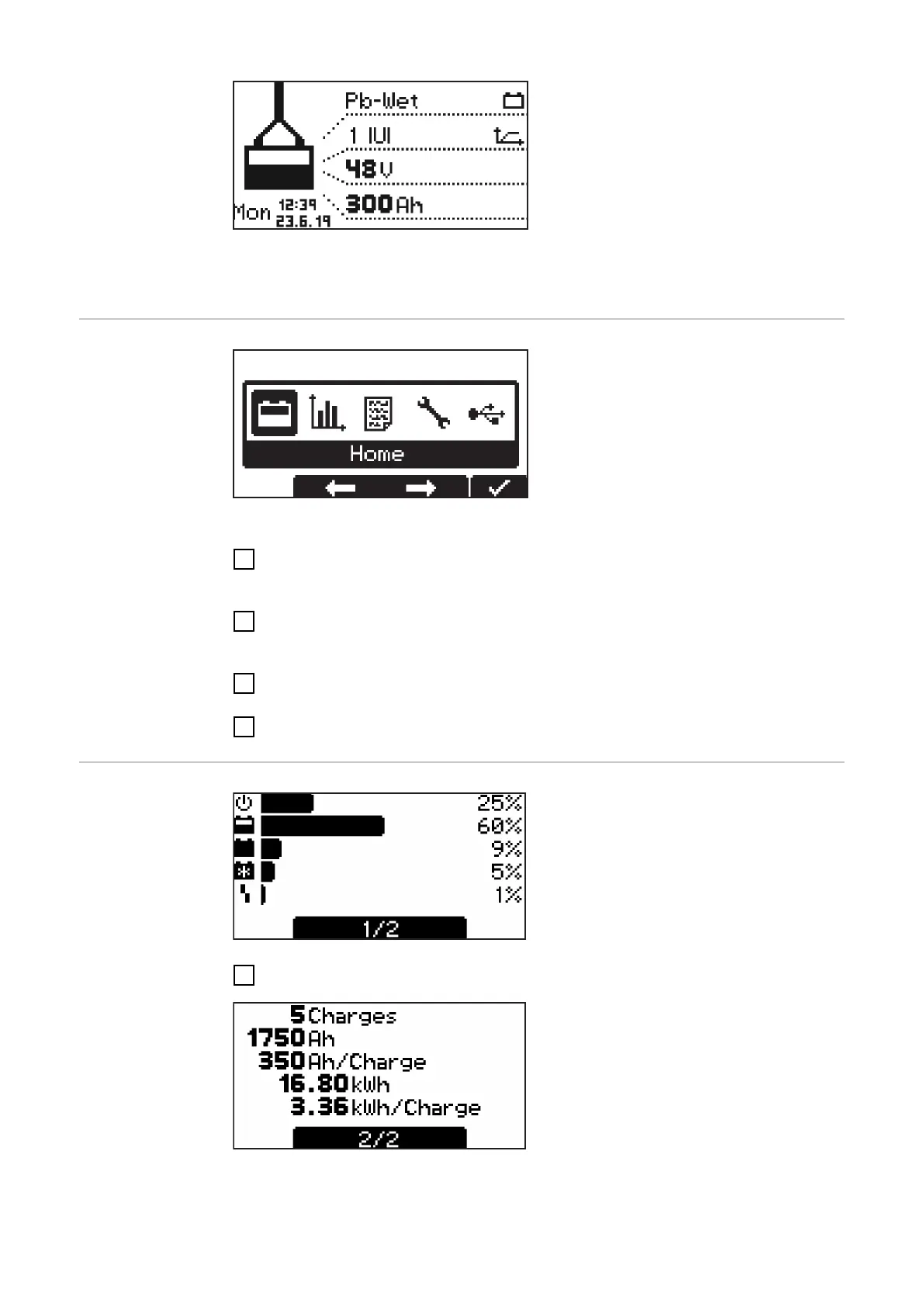

In standard mode, the display shows
the following charger parameters:
-
Type of battery (e.g. Pb-WET)
-
Charging characteristic (e.g. IUI)
-
Nominal voltage (e.g. 48 V)
-
Capacity (e.g. 300 Ah)
-
Day of the week, date and time
The charger parameters can be set individually. More information can be found in
the "Configuration mode" section.
Menu selection
Change from standard mode to the menu selection as follows:
1
Press and hold the "Menu" key for approx. 5 seconds.
Change from all other modes to the menu selection as follows:
1
Briefly press the "Menu" key.
To select the desired mode:
2
Use the "Up/Down" keys to select the symbol for the desired mode.
-
e.g. the battery symbol for standard mode
3
Use the "Pause/Start" key to confirm the "Tick" symbol.
Statistics mode In statistics mode, horizontal bars dis-
play the frequency of the following
device operating statuses:
-
Idle
-
Charging
-
Floatingcharge
-
Cooldown
-
Error
1
Use the "Up/Down" keys to toggle between page 1/2 and page 2/2.
Page 2/2 shows the following values:
-
Total number of charges.
-
Total Ah output.
-
Average Ah output per charge.
-
Total energy consumed (kWh).
-
Average energy consumed (kWh)
per charge.
