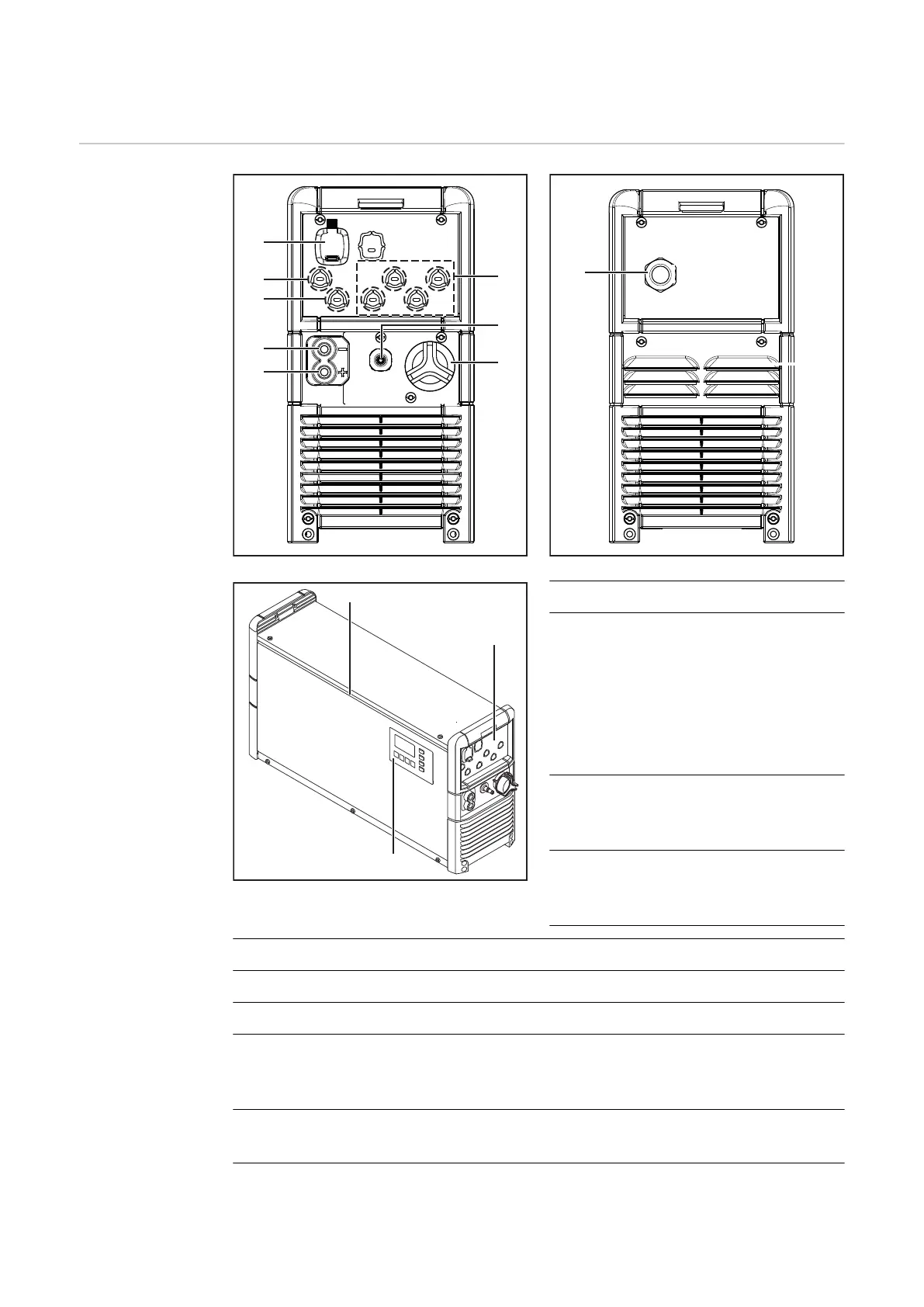

Control elements and connections
Controls and
connections
No. Function
(1) USB port
The USB port allows a USB
flash drive to be used to update
the device and also to log the
charging parameters while char-
ging is in progress. The maxim-
um supply current is 0.5 A.
(2) Position for the remote control
system or 13 V charging lights
options.
(3) Position for the external start/
stop option or temperature-
controlled charging option.
No. Function
(4) (-) Charging lead
(5) (+) Charging lead
(6) Positions for the relay-related options.
(e.g. Aquamatic control)
More information can be found in the "Options" chapter.
(7) Position for the internal electrolyte circulation option.
Compressed air outlet
(8) Position for the internal electrolyte circulation option.
Air intake with air filter
20
