17 G / 2 13V / 1
Y / 3 R / 4
B
Dete
C2 G
C1 G 13V O
C1 L C2 L
C1 H C2 H
- St + St
Pin Pin
Plug
Code
Plug
Code
Plug
18p
15
13
11
9
7
5
3
1
18
16
14
12
10
8
6
4
2

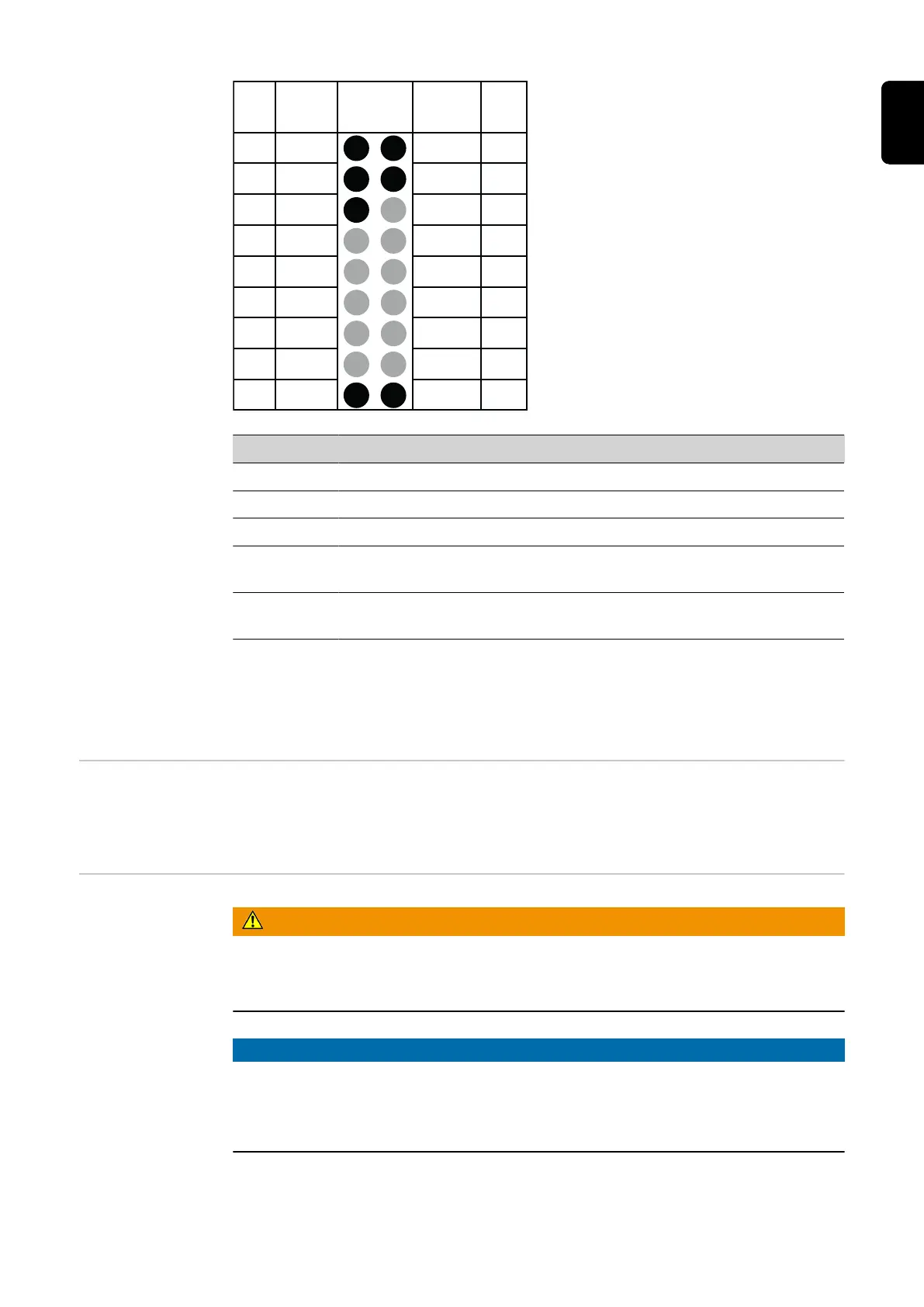

Connections for the charging lights on
the option plug
Pin Function Colour
18 13 V power supply.
17 Battery is fully charged. Green
16 An error has occurred (common error). Red
15 On: battery is being charged.
Flashing: charging has been interrupted.
Yellow
13 The battery has already cooled down and is ready for
use.
Blue
If the RGB setting (LED strip) is set in the menu, connection (15) (yellow) is not
supported. The normal setting (conventional external lamps) or RGB (LED strip)
for the "External lamp" function is explained under "Additional functions" in the
"Display" chapter.
Temperature-
controlled char-
ging
The temperature-controlled charging option always adjusts the charging voltage
according to the current temperature of the battery. This results in considerably
longer battery-life, especially where batteries are used in cold stores.
Relay board
WARNING!
Danger from using the relay board for safety-critical functions.
This can result in serious injury and damage to property.
▶
Do not use the relay board for safety-critical functions.
NOTE!
Danger due to non-observance of the permissible mains voltage tolerance.
This can cause malfunctions and damage.
▶
For the relay board option, a restricted L-N input voltage of a maximum of
250 V applies in relation to the charger.
59
EN
