Fronius TransTig 1700 User Manual

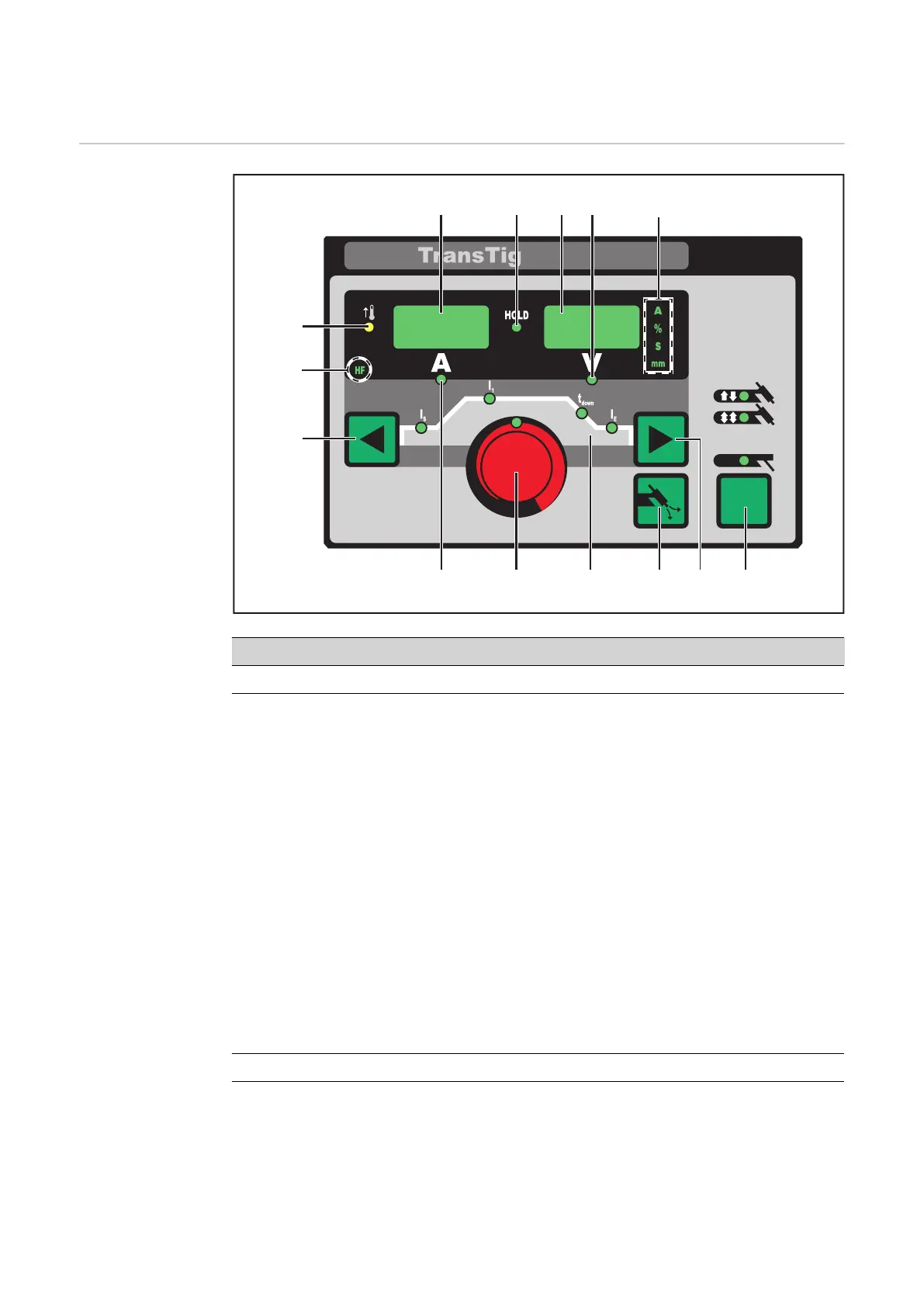

TransTig control panel
TransTig control
panel
(2)
(10)
(5)
(7)
(9) (8)
(3)
(11)
(1) (4)
(6)
(12)
(14)
(13)
No. Function
(1) Left digital display
(2) HOLD indicator
at the end of each welding operation, the actual values for the welding
current and voltage are stored and the Hold indicator lights up.
The Hold indicator refers to the last value reached by the main current
I
1
. As soon as any other welding parameter is selected, the Hold indic-
ator goes off. The Hold values will continue to be available, however, if
welding parameter I
1
is selected again.
The Hold indicator is cleared when:
-
a new welding operation is started
-
the welding current I
1
is set
-
the mode is changed
-
the welding process is changed
IMPORTANT! Hold values are not output if
-
the main current phase was never reached,
or
-
a pedal remote control was used.
(3) Right digital display
