Fronius TransTig 1700 User Manual

MagicWave
2500 / 3000
(1)
(2)
(3)
(4)
(5)

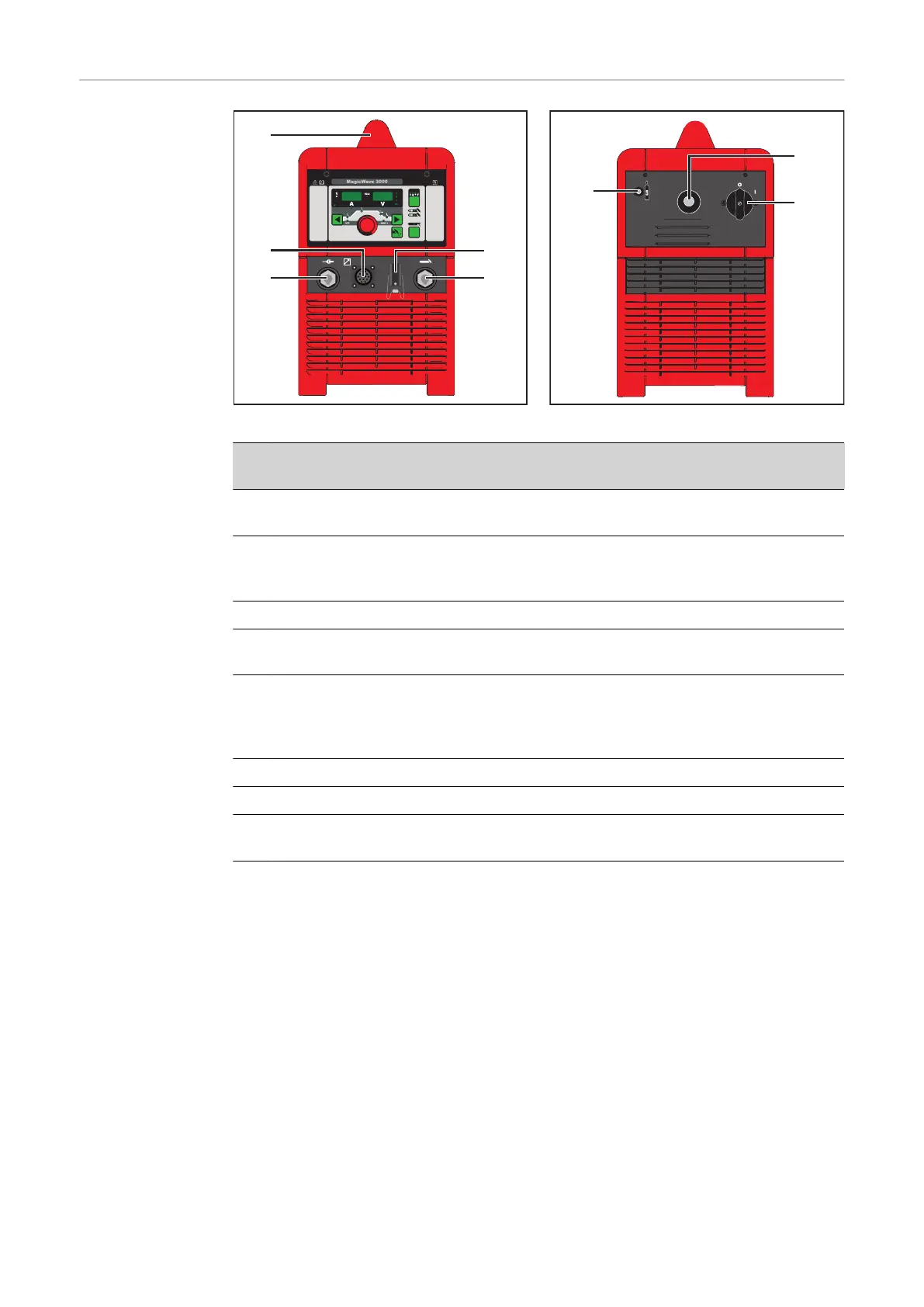

MagicWave 2500 / 3000 - front
(6)
(7)
(8)
MagicWave 2500 / 3000 - rear
No
.
Function
(1) Grounding (earthing) cable connection
for connecting the grounding (earthing) cable
(2) LocalNet connection
standardised connection socket for system add-ons (e.g. remote control,
JobMaster TIG welding torch, etc.)
(3) Handle
(4) Torch control connection
for connecting the control plug of a conventional welding torch
(5) Welding torch connection
for connecting:
-
the TIG welding torch
-
the electrode cable for manual metal arc welding
(6) Shielding gas connection
(7) Mains cable with strain relief device
(8) Mains switch
for switching the power source on and off
