TransTig

4000 / 5000

(1)

(4)

(3)

(2)

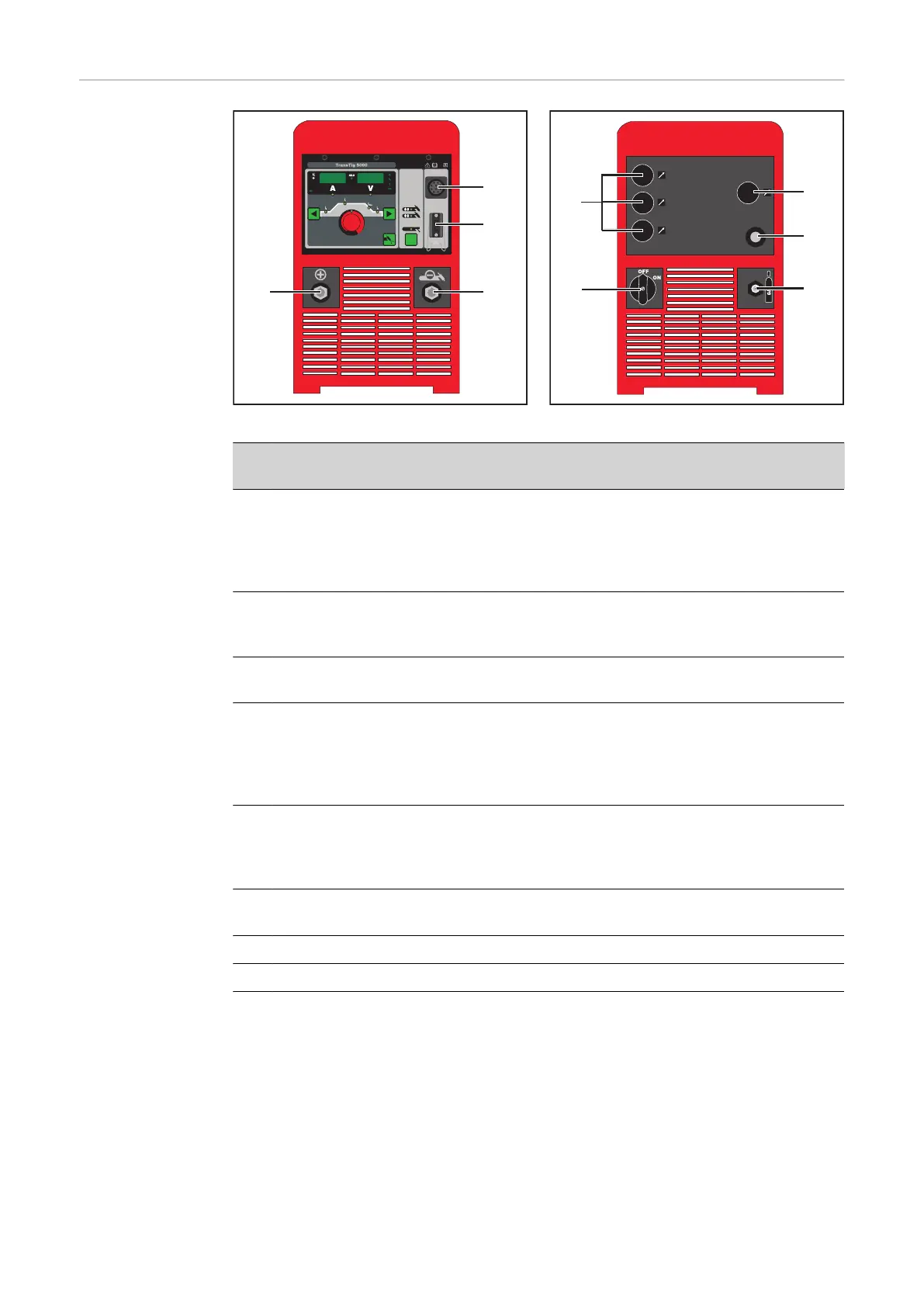

TransTig 4000 / 5000 - front

(7)

(6)

(5)

(8)

(6)

TransTig 4000 / 5000 - rear

Function

(1) (+) current socket with bayonet latch

for connecting

the grounding (earthing) cable when TIG welding

the electrode cable or grounding (earthing) cable during MMA weld-

ing (depending on the type of electrode)

(2) LocalNet connection

standardised connection socket for system add-ons (e.g. remote control,

JobMaster TIG welding torch, etc.)

(3) Torch control connection

for connecting the control plug of a conventional welding torch

(4) (-) current socket with bayonet latch

for connecting

the TIG welding torch

the electrode cable or grounding (earthing) cable during MMA weld-

ing (depending on the type of electrode)

(5) Mains switch

for switching the power source on and off

OFF = - O -

ON = - I -

(6) Blanking cover

reserved for LocalNet connection

(7) Mains cable with strain relief device

(8) Shielding gas connection
