Pressure
(mbar)
Gas
Single
Vat
Natural Gas Lacq
(G20) under 20 mbar
7
Natural Gas Gronique
*
(G25) under 25 mbar
10
Natural Gas Gronique
(G25) under 20 mbar
10
Butane/Propane
(G30) at 28/30 or 50 mbar
17
Propane
(G31) under 37 or 50 mbar
20
CE Standard
Burner Manifold Gas Pressures
* Belgian G25 = 7,0 mbar
Gas Pressure
Natural
3" W.C.
0.73 kPa
Propane
8.25" W.C.
2.5 kPa
Non-CE Standard
Burner Ma nifold Ga s Pressure s
6. To adjust the burner gas pressure, remove the cap from the gas valve regulator and adjust to the correct pressure.
Non-CE
Valve
CE
Valve

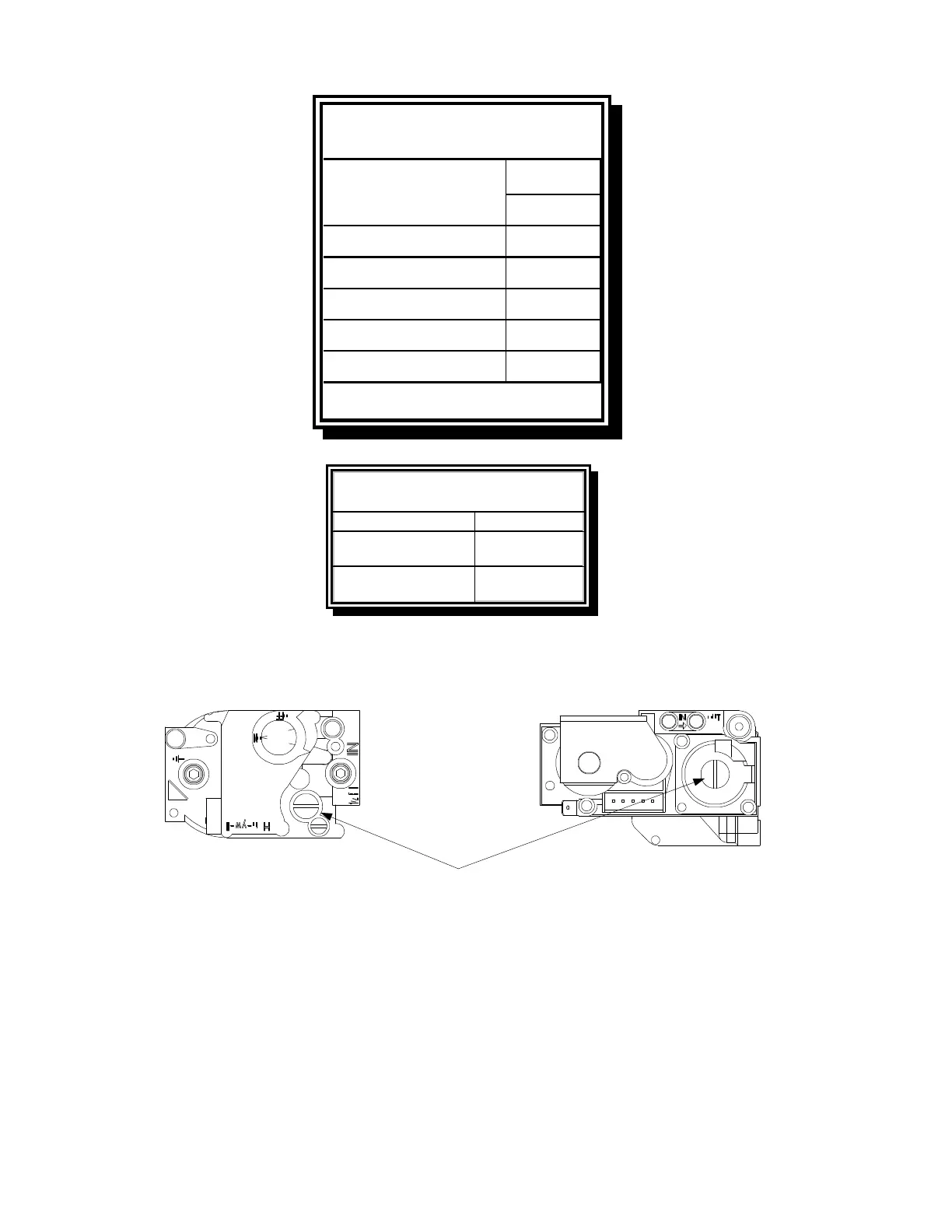

GAS VALVE REGULATOR CAP
7. Place the fryer power switch (and the gas valve in non-CE fryers) in the OFF position. Remove the fitting from
the pressure tap hole and reinstall the pressure tap plug.
1.8 Measuring Flame Current
When the burner flame is properly adjusted, it will produce a current between 2.5 A and 3.5 A. Flame current is
measured by placing a microamp (not milliamp) meter in series with the sensing wire on the ignitor. This is
accomplished as follows:
1. Place the fryer power switch in the OFF position.
