1-9

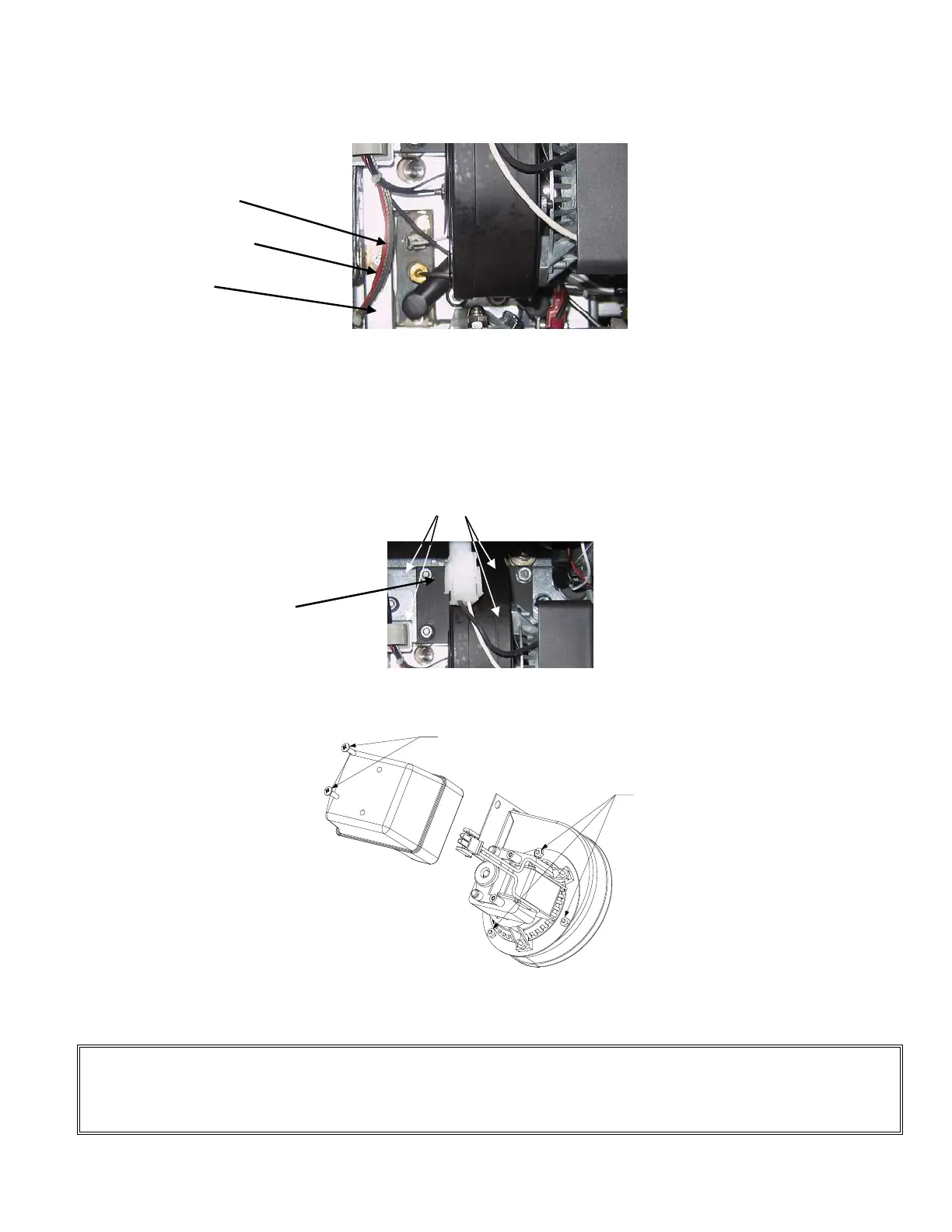

2. Disconnect the flame sensor wire by carefully pulling its push-on terminal from the terminal strip on the ignitor.
Disconnect the gas enrichment tube at the ignitor-end compression fitting. Disconnect the ignition cable from the
ignitor by grasping its boot and gently pulling toward you. (See photo below)
3. Remove the sheet metal screws securing the ignitor to the mounting plate and pull the ignitor from the fryer.
4. Reverse the procedure to install the replacement ignitor.
1.9.6 Replacing or Cleaning a Combustion Air Blower
1.
Disconnect the blower wiring harness, remove the blower assembly mounting nuts, and remove the blower
assembly from the fryer. If cleaning the motor, continue with Step 2; otherwise, install the replacement blower,
reconnect the wiring harness, and then go to Step 6.
2. Remove the blower motor shield and separate the blower motor from the housing as shown in the illustration
below.
Remove these screws to
remove the shield from the
blower assembly.
Remove these nuts to
separate the blower
motor from the housing.
3. Wrap the motor with plastic wrap to prevent water from entering it. Spray degreaser or detergent on the blower
wheel and the blower housing. Allow it to soak for five minutes. Rinse the wheel and housing with hot tap water,
then dry with a clean cloth.
NOTICE- Australia Only
The air pressure switch on the combustion blower should read: Full Vat units-122pa (0.5
inches W.C.) and for Split Vat units-180pa (0.72 inches W.C.).
Flame Sensor Wire
Gas Enrichment Tube
Ignition Cable
Wiring connection
Blower assembly
mounting nuts
To Next Page
