2.13 Auto Top-Off Components

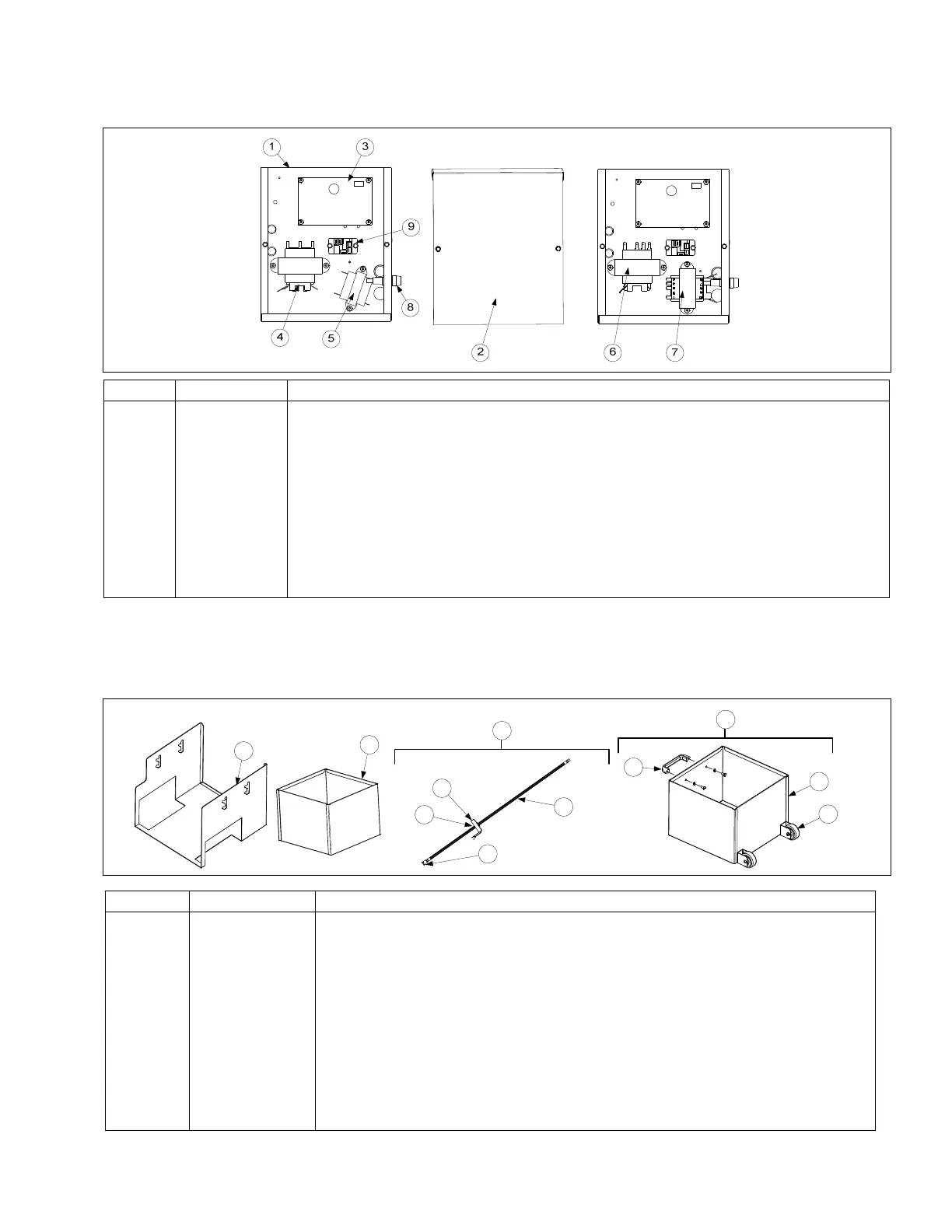

2.13.1 Automatic Top-Off Box Assembly
ITEM PART # COMPONENT
1 108-2556 Box, Assembly Auto Top Off Board
2 220-5679 Cover, Top Off Board Box
√ 3 108-2805 PCB Board, Automatic Top Off OCF
√ 4 807-2181 Transformer, 100-120V/24V 62VA
√ 5 807-0855 Transformer, 120V 50/60-12V 20VA
√ 6 807-2180 Transformer, 208-240V/24V 50VA
√ 7 807-2191 Transformer, 208/230/240 -12V 30VA
8 807-1321 Holder, Fuse AGC Panel Mount ¼”
√ * 807-1597 Fuse, 3A Slow-Blow
√ 9 807-1683 Relay, 12VDC (Top off pump)
* Not illustrated.
√ Recommended parts.
NOTE: Top off boxes for vats 4 and 5 have either item 4 or item 6, both have item 3.
2.13.2 JIB (Jug In Box) Cradle, JIB Cap and Pick Up Assembly
7
4
1
6
5
2
3
8
9
10
11
ITEM PART # COMPONENT
1 260-0197 Cradle, JIB, Stainless Steel (Uses 809-0402 Thumb Screw ¼-20 x ½” )
2 824-2298 Box, JIB
3 108-1049SP Cap, JIB Assembly (use 106-9495SP for Intl. BIB)
4 823-7575 Cap, JIB (use 823-6812 for Intl. BIB)
5 810-3664 Bushing, Heyco
6 810-3663 Hose, JIB
7 810-3300 Inlet, Oil Reservoir Tube
8 108-6895 Box Assembly, JIB w/ Handle
9 810-0180 Handle
10 823-9145 Box, W/A JIB w/ handle
11 812-2337 Caster, 2”
108-2557SP
120V Assy
108-2558SP
208-240V
A
ss
y
