2.4.2 Drain Tube Sections and Associated Parts cont.
ITEM PART# COMPONENT
1 823-8135 Drain Tube, Dump Full-Vat Left Closed/Right End Open
2 823-8136 Drain Tube, Dump Dual-Vat Left Closed/Right End Open
3 823-8137 Drain Tube, Dump Full-Vat Left Closed Both Ends
823-7959 Drain Tube, Dump Single Full-Vat Left Closed Both Ends
4 823-8138 Drain Tube, Dump Dual-Vat Left Closed Both Ends
823-7946 Drain Tube, Dump Single Dual-Vat Left Closed Both Ends
5 823-8139 Drain Tube, Dump Full-Vat Left Closed Both Ends
* 823-8130 Drain Tube, Dump Full-Vat Left Closed/Right End Open
6 823-7943 Drain Tube, Dump Dual-Vat Left Closed Both Ends
* 823-8131 Drain Tube, Dump Dual-Vat Left Closed/Right End Open
7 823-4643 Drain Tube, Full-Vat, Short, Open Both Ends
8 823-7905 Drain Tube, Dual-Vat, Short, Open Both Ends
9 810-3550 Drain Tube, Short, Open Both Ends
10 810-3551 Drain Tube, Long, Open Both Ends
11 823-4625 Drain Tube, Short Full-Vat Left Open/Right End Closed
12 823-7906 Drain Tube, Short Dual-Vat Left Open/Right End Closed
13 823-4639 Drain Tube, Long Full-Vat Left Open/Right End Closed
14 823-7908 Drain Tube, Long Dual-Vat Left Open/Right End Closed
15 823-4641 Drain Tube, Long Full-Vat Open Both Ends
16 823-7907 Drain Tube, Long Dual-Vat Open Both Ends
17 816-0772 Sleeve
18 809-0969 Clamp
* 816-0630 Vinyl Cap
* 811-1071 Tubing, ¼-inch OD Teflon Vent (sold by the foot)
19 823-7915 Guard, Filter Lid Splash
* Not illustrated.

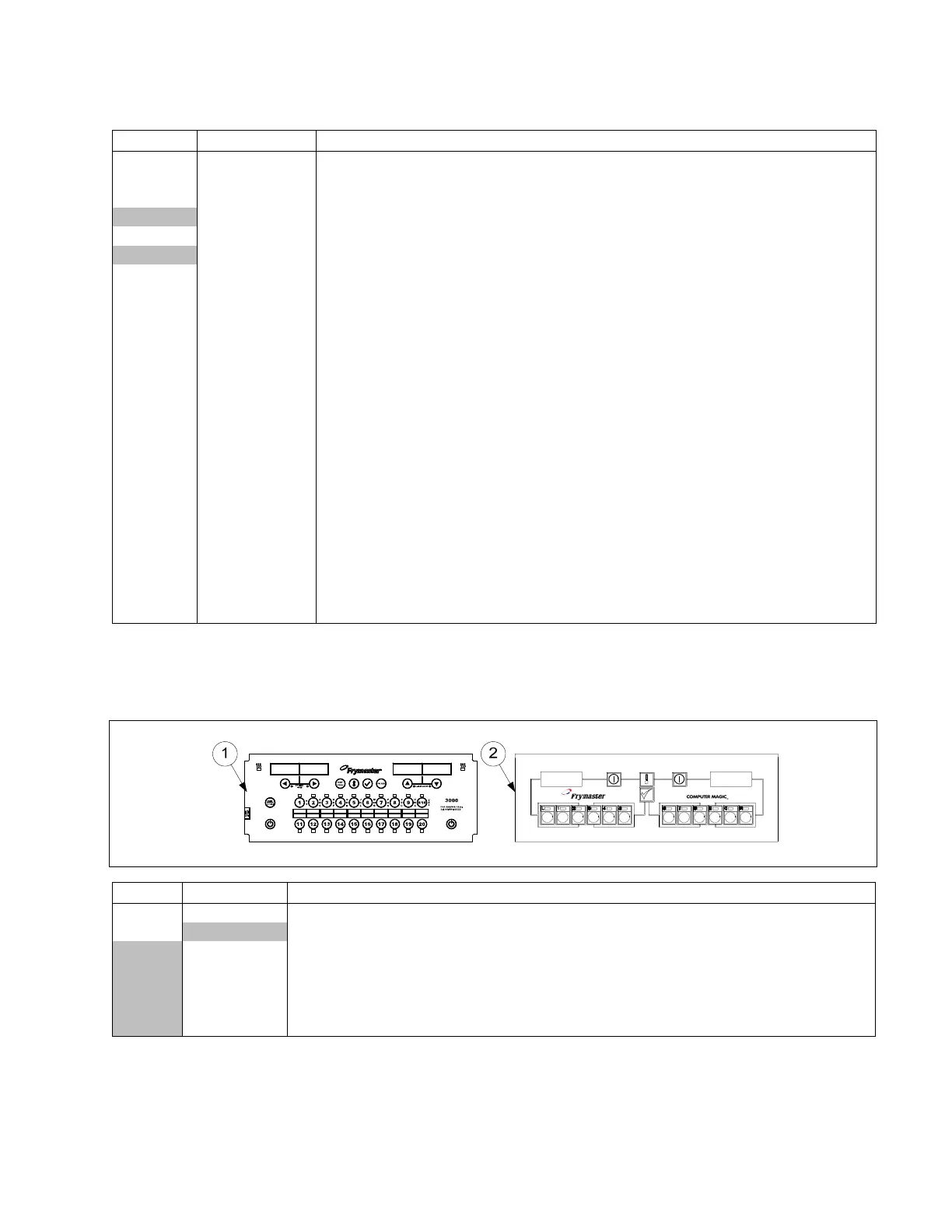

2.5 Electronics and Electrical Components
2.5.1 Controllers and Associated Components
NOTE: See Page 2-20 for Interface Board to Controller Wiring Harness
ITEM PART # COMPONENT
√ 1 826-3107 Replacement 3000 Controller
√ 2 Replacement CM 3.5 Controller
826-2380
Non-CE CM3.5 (For use in US, Canada, Mexico and all other non-CE coun-
tries)
826-2381
CE CM3.5 (For use in European CE countries)
826-2382
CE CM3.5 (For use in non-CE countries with 8 sec. melt cycle)
810-3141 Sound Device, Universal SMT
√ Recommended parts.
