Frymaster FPGL330CA - ATO (Automatic Top-Off) Pump Assembly

2-26

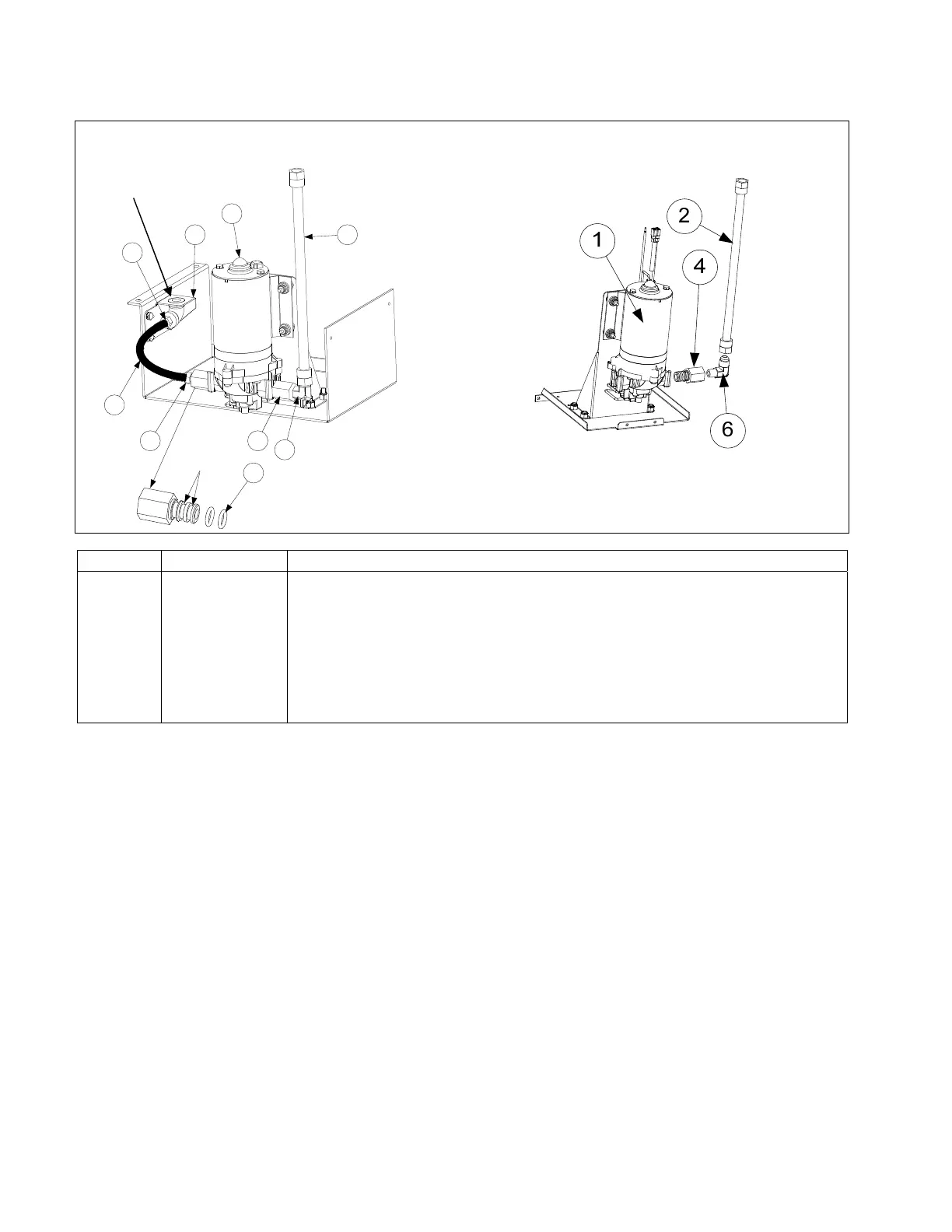

2.13.3 ATO Pump Assembly
1
2
6
4
INSTALL
O-RINGS
HERE
5
8
3
8
7
ITEM PART # COMPONENT
√ 1 108-0639 Pump, Shurflo 24VAC
2 810-3265 Flexline, ½” OD x 24-inch (Out to top off manifold)
3 811-1139 Hose, Silicone Braided (sold by the foot)
4 810-3578 Fitting, Shurflow Pump OCF
5 816-0782 O-Ring, Viton #111
6 813-0940 Elbow, ¼” NPT x ⅜ Flare
7 823-7167 Bracket, JIB Elbow
8 816-0708 Fitting, ¼” NPT Male Barb
√ Recommended parts.
JIB hose
connects
here.
Liquid Shortening Semi/Solid Shortening
See page 2-28 for
inlet plumbing
