Frymaster FPGL330CA - Bulk Oil Plumbing

2-30

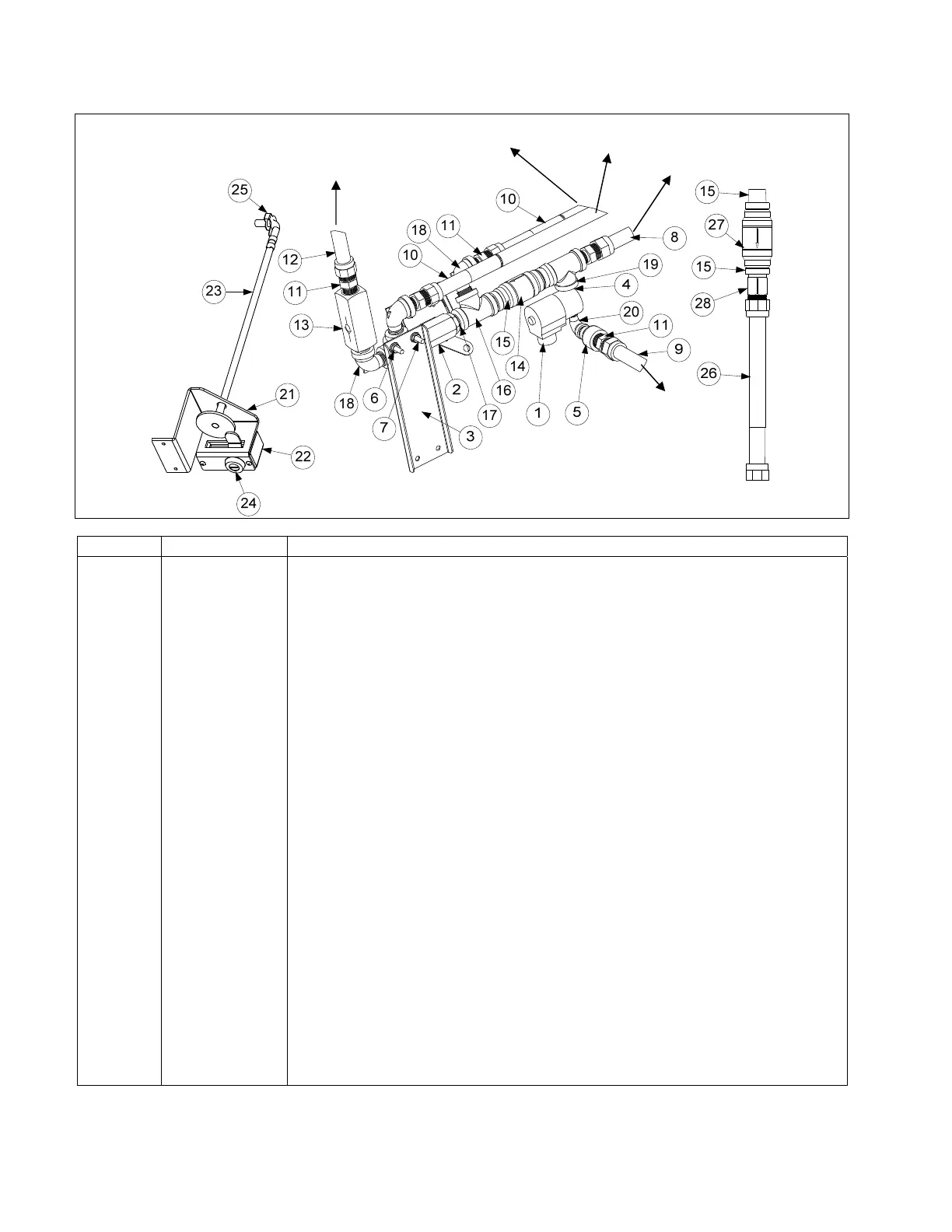

2.13.7 Bulk Oil Plumbing
ITEM PART # COMPONENT
√ 1 106-6830 Solenoid Assy
2 108-3368 Valve, Assy Waste Dispose (see next page for valve assembly)
3 220-8661 Brace, Front Bulk Plumbing
4 813-0838 Nipple, ¼” NPT
5 810-0555 Reduce, Bell ½” to ¼” NPT
6 809-0417 Nut, Flange ¼” - 20
7 809-0949 U- Bolt ¼” – 20 x 1 ¼
8 810-1055 Flexline, ⅝” OD x 11.50”
9 810-1069 Flexline, ⅝” OD x 29.50” 3, 4 and 5 battery (use 810-1055 for two battery)
10 810-1400 Flexline, ⅝” OD x 21.00”
11 810-1668 Adaptor, Male ⅝” OD x ½”
12 810-1680 Flexline, ⅝” OD x 6.50”
√ 13 810-3531 Valve, Check 20 PSI (Bypass)
14 810-3583 Valve, Check 4 PSI (Manifold)
15 800-3738 Adapter, Check Valve
16 813-0003 Tee, ½” x ½” x ½”
17 813-0022 Nipple, ½” x Close NPT
18 813-0165 Elbow, St ½” x ½” NPT 90° BM
19 813-0304 Bushing, ½” x ¼: BM Flush
20 813-0543 Elbow, Street ¼” NPT
21 220-5656 Brace, Handle (use 220-8633 for 2-battery (Assembly 108-3387))
22 220-5657 Cover, Handle (use 220-8664 for 2-battery)
23 823-8118 Handle, Waste Pull
24 810-3587 Lock and Key, Waste Handle
25 809-0657 Clip, Clevis Right Rod End
26 810-1067 Flexline, ⅝” OD x 8.50”
√ 27 810-0667 Valve, Check 1 PSI (Pump Motor)
28 810-1669 Adapter, Female ⅞” OD x ½”
* Not illustrated.
√ Recommended parts.
To Oil Return
Manifold
To Bulk Oil Waste
Connection
To Drain
To JIB
To Bulk Oil Fresh
Connection
