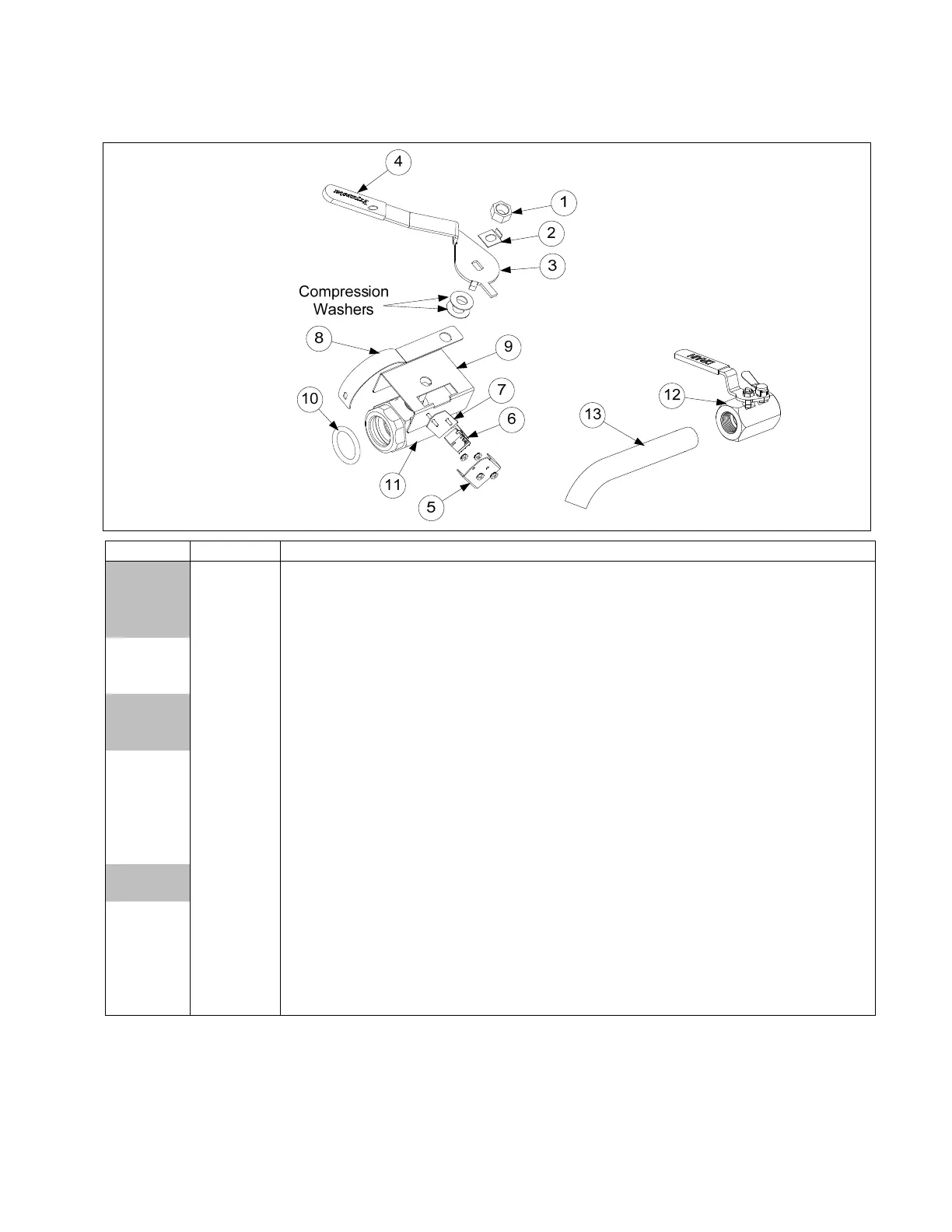

2.4 Drain System Components
2.4.1 Drain Valves and Associated Parts
ITEM PART # COMPONENT
108-2509
Valve, Assy Drain FV/DV Left with Filter and Auto Top Off (use 108-2510 for Right)
108-2507
Valve, Assy Drain DV Left with Filter ( No Top Off) (use 108-2508 for Right)
108-2593 Valve, Assy Drain FV Single with Filter (No Top Off)
108-2449
Valve, Assy Drain DV Left Single with Filter (No Top Off) (use 108-2450 for Right)
1 809-0540 Nut, ½-13 2-Way Hex Lock
2 900-2936 Retainer, Nut Drain Valve
3 230-8556 Handle, Drain Valve FV with Filter
230-8557
Handle, Drain Valve DV Left with Filter (use 230-8558 for Right)
824-2188 Handle, Drain Valve Long FV Single and DV Left with Filter & auto top off
824-2189 Handle, Drain Valve Long DV Single Right and DV Left With Filter
4 814-0047 Cap, Vinyl Red
5 901-2348 Cover, Safety Switch
6 807-4936 Switch, Micro Gold Plated
7 816-0220 Insulation, RF Switch
8 200-6496 Support, Drain Tube
9 108-2506 Bracket Assy, Drain Switch FV and DV Left
108-2537 Bracket Assy, Drain Switch DV Right
220-8162 Bracket, Single 1¼-inch Drain Valve (used on FV Single with Filter)
10 816-0135 O-Ring, Round Drain Seal
11 810-1018 Valve, 1¼-inch Drain with Filter
12 810-1569 Valve, 1¼-inch Drain Non-Filter
13 812-1226
Drain Extension 1¼-inch (use with 810-1569)
* 807-5159
Harness, Drain FV (connects from drain switch to rear of 3000 controller only)
* 807-5160
Harness, Drain DV(connects from drain switch to rear of 3000 controller only)
