Frymaster FPGL330CA - Filter Pump, Motor and Associated Components

2-22

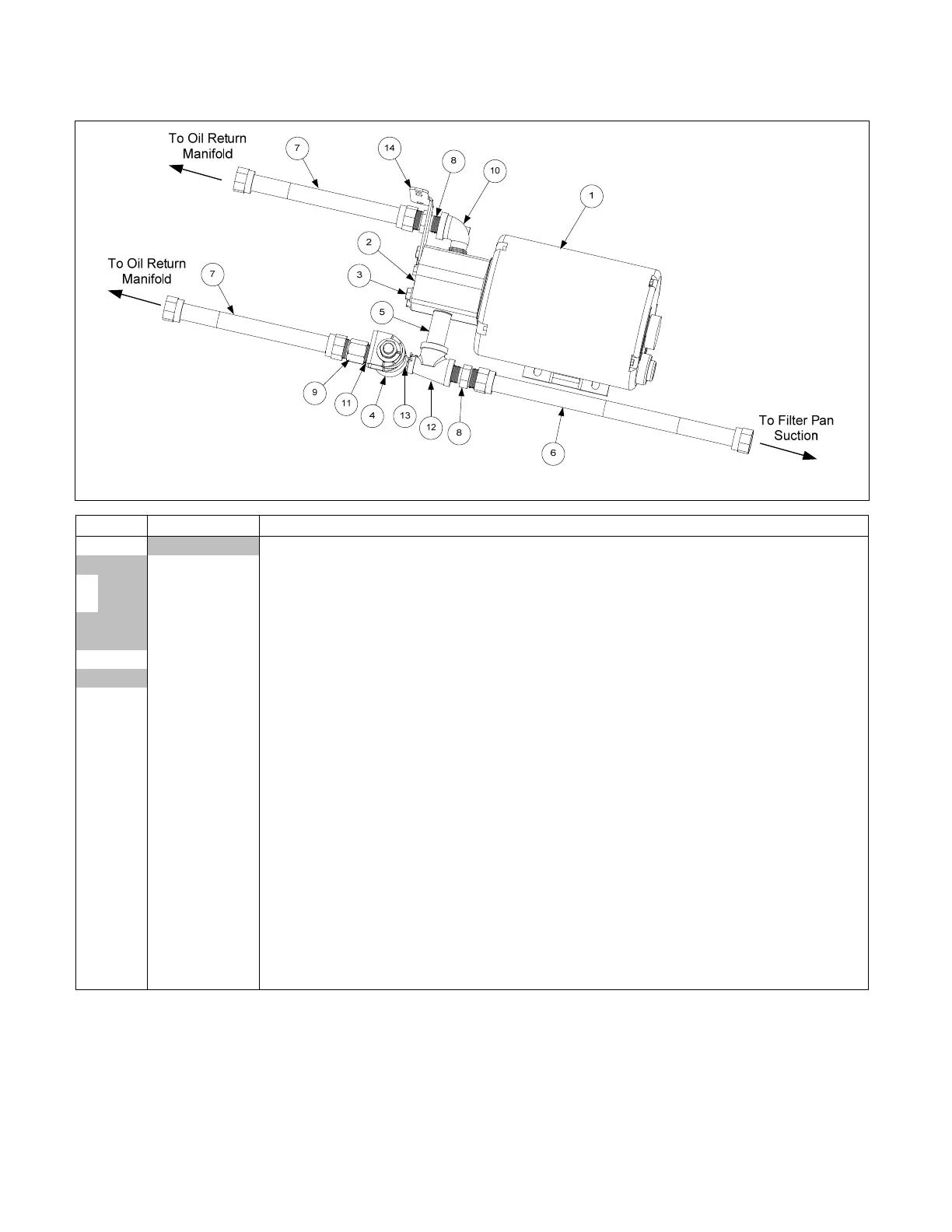

2.10 Filter Pump, Motor and Associated Components
ITEM PART # COMPONENT
1 Motor and Gasket Kit
826-1785 100V 50/60 Hz
√ 826-1712 115V 50/60 Hz
√ 826-1756 208V 50/60 Hz
826-1270 220-240V 50/60 Hz
826-1755 250V 50/60 Hz
2 826-3191 Pump and Gasket Kit, Viking 4 GPM (includes gasket and cap screws below)
816-0093 Gasket, Pump/Motor
3 809-1062 Cap Screw, 5/16-inch-18 4.00” NC Hex (Connects pump to motor.)(use 8090194
washers)
* 108-0649 Heater Strip Assembly, 100-120V 25W 18”
* 106-5912 Heater Strip Assembly, 208-250V 25W 18”
4 106-7598SP Valve, Solenoid ¼-inch” NPT
5 813-0265 Nipple, ½-inch x 2.50-inch NPT BM
6 810-1057 Flexline, 13-inch Oil Return
7 810-1067 Flexline, 8.5-inch Oil Return
8 810-1668 Adapter, ⅝-inch to ½-inch NPT Male
9 810-1669 Adaptor, Female ⅞-inch OD x ½-inch
10 813-0165 Elbow, ST ½-inch x ½-inch NPT 90° BM
11 813-0304 Bushing, ½-inch x ¼-inch BM Flush
12 813-0530 Tee, Reducing ½-inch x ¼-inch x½-inch
13 813-0838 Nipple, ¼-inch NPT BM Close
14 220-6191 Brace
* 106-1020 Wiring, Pump
* Not illustrated.
√ Recommended parts.
