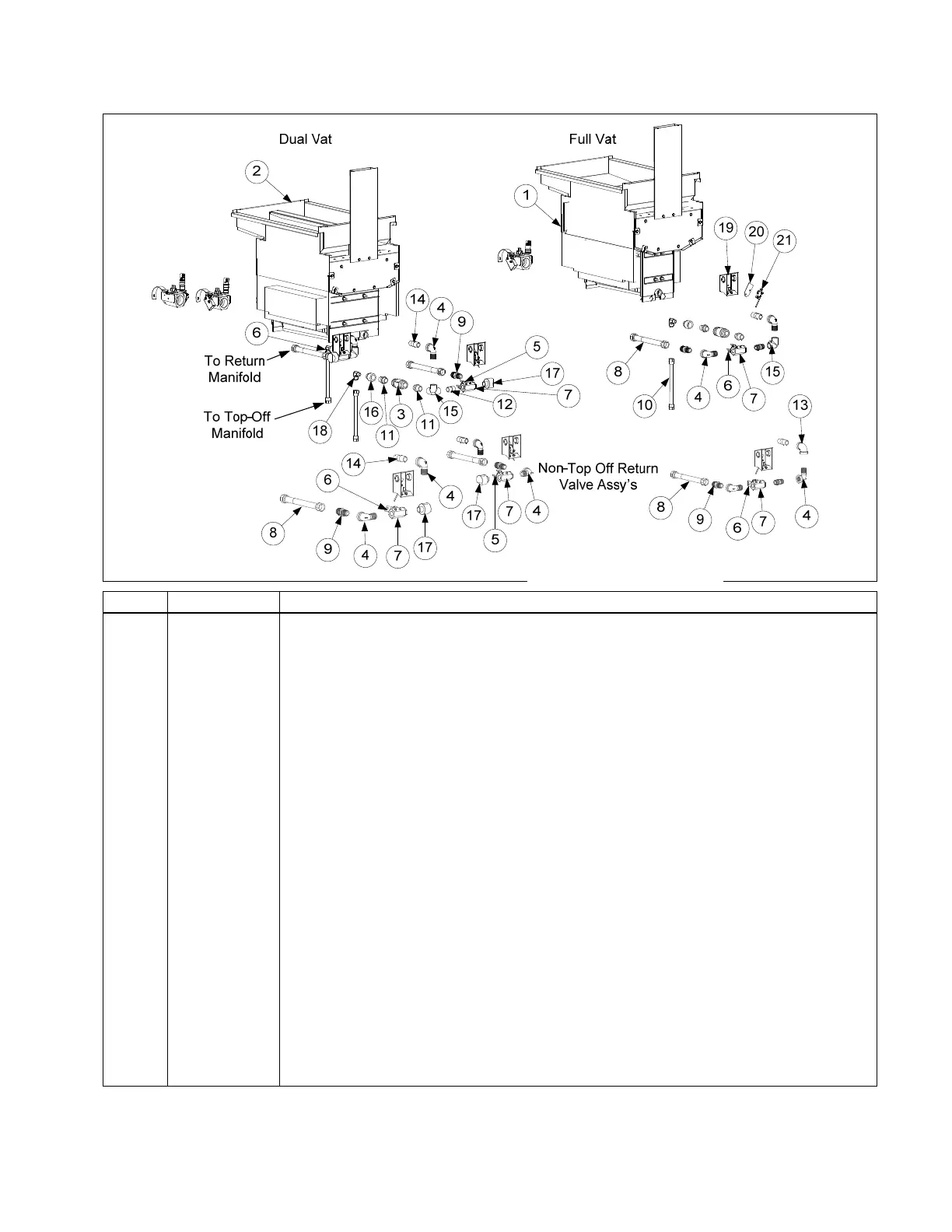

2.11 Frypot Assemblies and Associated Parts
ITEM PART # COMPONENT
1 823-7824
Frypot, Full-Vat OCF with filter (use 823-8022 for frypot with no filter) prior to 07/2014
823-8975
Frypot, Full-Vat OCF with filter (use 823-8976 for frypot with no filter) after 06/2014
2
823-7862
Frypot, Dual-Vat OCF with filter (use 823-8020 for frypot with no filter) prior to 07/2014
823-8973
Frypot, Dual-Vat OCF with filter (use 823-8974 for frypot with no filter) after 06/2014
* 824-1796 Riser, DV Frypot
3 810-0667 Valve, Check ½” 1 PSI
4 813-0165 Elbow, St ½” x ½” NPT 90° BM
5 901-2772 Handle, Valve Rear Flush LT
6 902-2772 Handle, Valve Rear Flush RT
* 900-2935 Retainer, Nut Oil Return Valve
7 810-2201 Valve, Return ½” Ball LT
8 810-1067 Flexline, ⅝” OD x 8.50” Long Return Oil
9 810-1668 Adaptor, Male ⅝” OD x ½”
10 810-3591 Flexline, ½” OD x 8.00” Long Top Off
11 810-3738 Adaptor, Check Valve Close NPL
12 813-0022 Nipple, ½” Close NPT BM
13 813-0062 Elbow, ½” BM x 90°
14 813-0298 Nipple, ½” x 2.00” NPT BM Pipe
15 813-0331 Elbow, V-Side Outlet ½” NPT
16 813-0555 Reducer, Bell ½” to ¼” NPT BM
17 813-0908
Adapter, ½” NPT 90° (also used in DV non-Top Off manifolds in place of item 4)
18 813-0940 Elbow, ¼” NPT x ⅜” Flare
19 2208540 Cover, Oil Return Microswitch
20 816-0220 Insulation, RF Switch
21 807-4101 Switch, Micro
* Not illustrated.
√ Recommended parts.
See Page 2-5 for Drain
Valve Assemblies.
