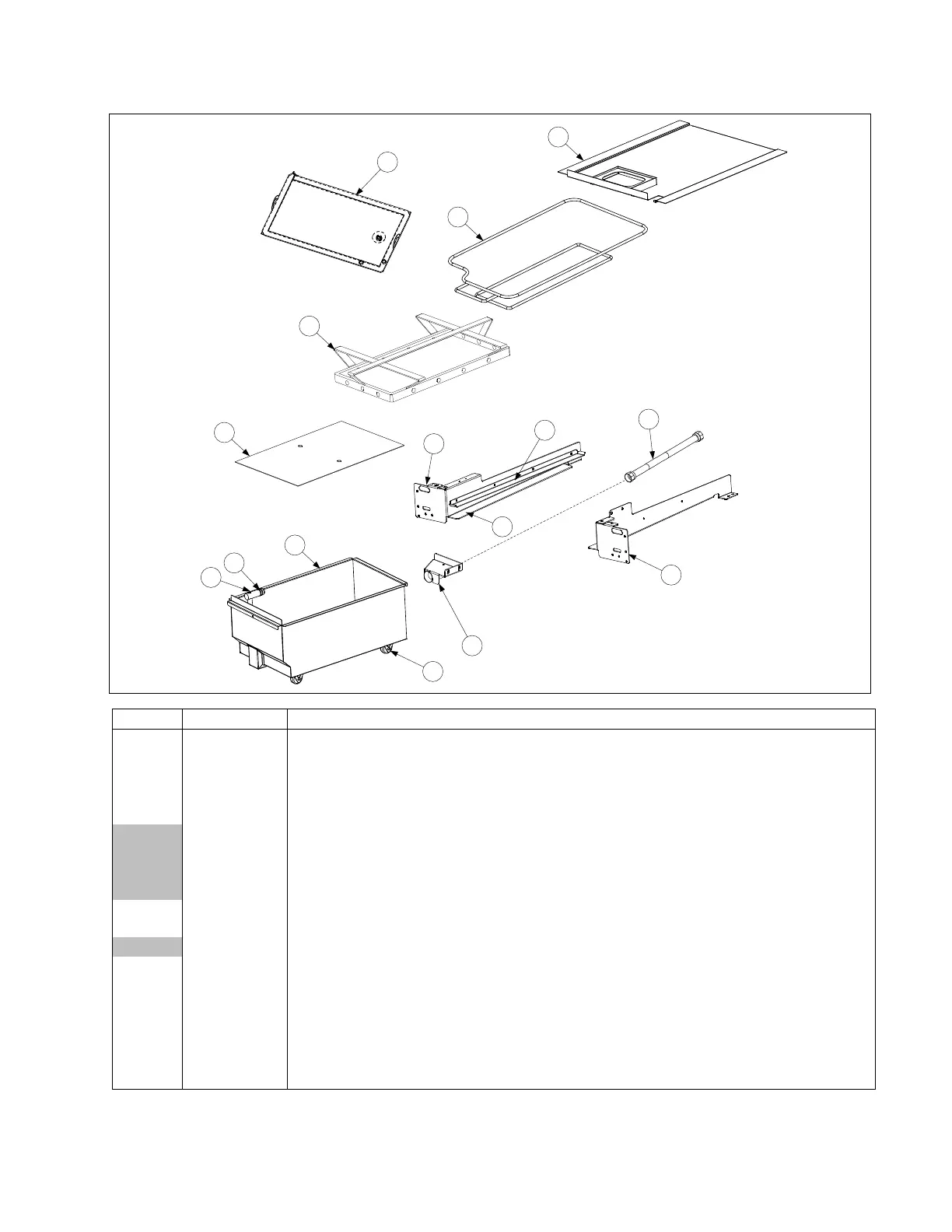

2.9 Filtration System Components
5
8
6
10
11
1
2
3
4
7
9
5b
5a
12
13
ITEM PART # COMPONENT
1 823-8028 Lid, Filter Pan (use 823-7976 for Single Fryer Lid)
2 810-3288 Crumb Tray
3 810-3289 Hold-Down Ring 11.20 x 19.10,
4 812-2025 SanaGrid Filter Screen
5 108-2880SP Pan, Filter with casters
108-6976SP
Pan, Filter with casters (Only for use with Filter Leaf 810-4492)
106-8211SP Pan, Filter without casters prior to May 2012
806-9255 Pan, Filter Single Fryer
813-0568 Plug, ⅛-inch Socket Head Pipe (used with Item 5; two required)
√ * 826-1392 O-Ring (Pkg. of 5; used with Item 5)
6 823-6458 Suction Tube Assembly
823-5591
Suction Tube Assembly (Single Fryer Only)
7 810-1067 Flexline, 8.50-inch Oil Return
8 230-8373 Rail, Upper Filter Pan Left/Right
9 230-8372 Rail, Lower Filter Pan Left/Right
10 823-8030 Support, Left Filter Pan
11 220-8368 Support, Right Filter Pan 3,4 and 5 battery (use 108-2872 for 2 battery)
12 810-4137 Caster, 2”
13 810-4492
Leaf Assy, Filter (Only for use with Filter Pan 108-6976SP)
* Not illustrated.
√ Recommended parts.
To Next Page
