Fuji Xerox ApeosPort-V 4070

2 Product Overview
66
Product Overview
2

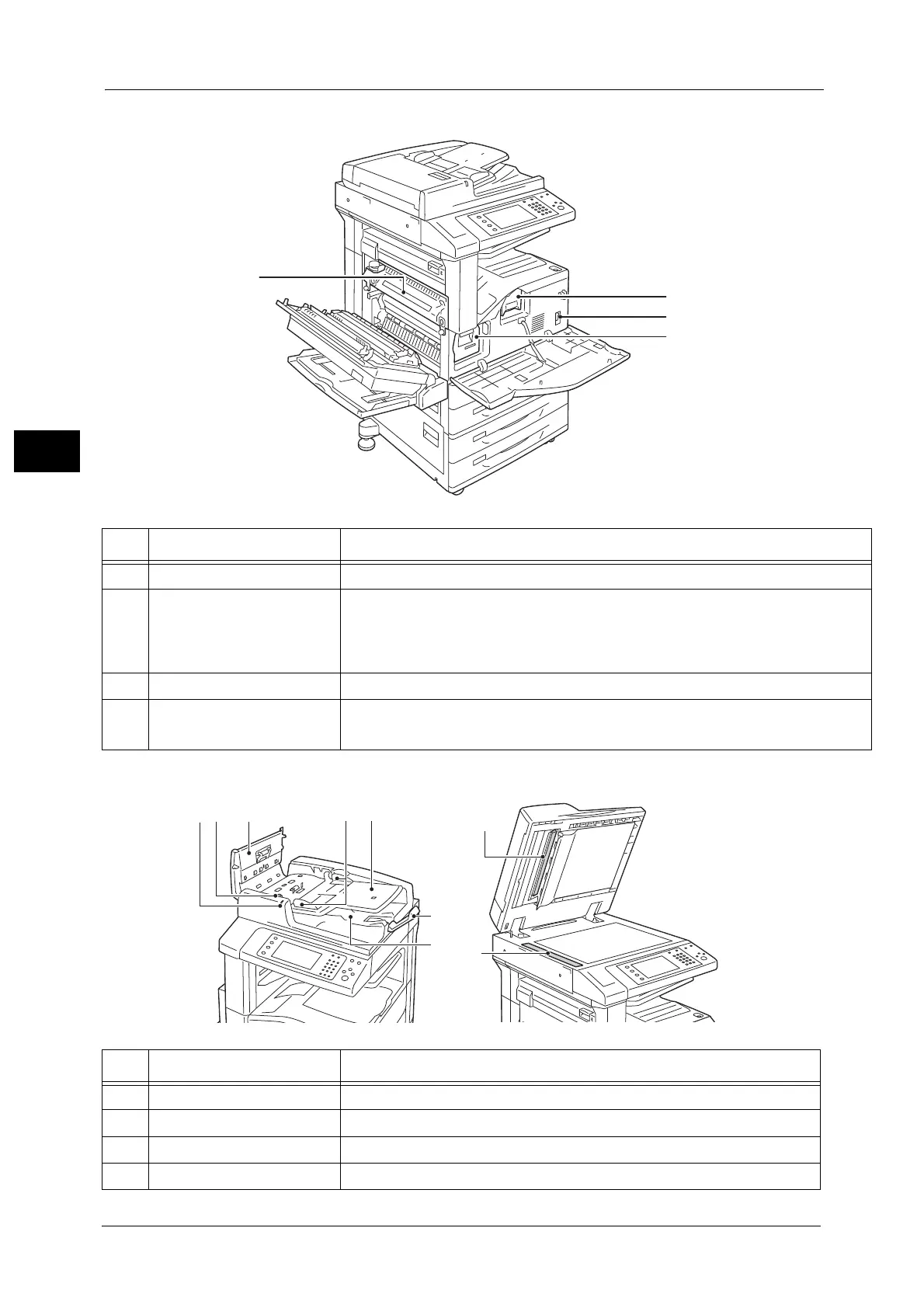

 Inside
 Duplex Automatic Document Feeder
1
2
4
3
No. Component Function
1 Toner cartridge Contains toner (image forming powder).
2 Main power switch Switches the main power of the machine on and off. Always follow the instructions
of the system administrator.
Important • Always switch the power off before switching the main power off. For details, refer
to "Power Source" (P.73).
3 Drum cartridge Contains a photoconductor.
4 Fusing unit Fuses toner on paper.
Important • Do not touch this unit as it is extremely hot.
7
12
4
5
3
6
9
8
No. Component Function
1 Confirmation indicator Lights up when a document is loaded correctly.
2 Lever Turn this lever to clear paper jams.
3 Left cover Open this cover to clear paper jams.
4 Document guides Use these guides to align the edges of documents.
