246 7 Maintenance
Replacement Procedure (Bypass Feed Roller Unit)
Bypass Feed Roller and Bypass Retard Roller

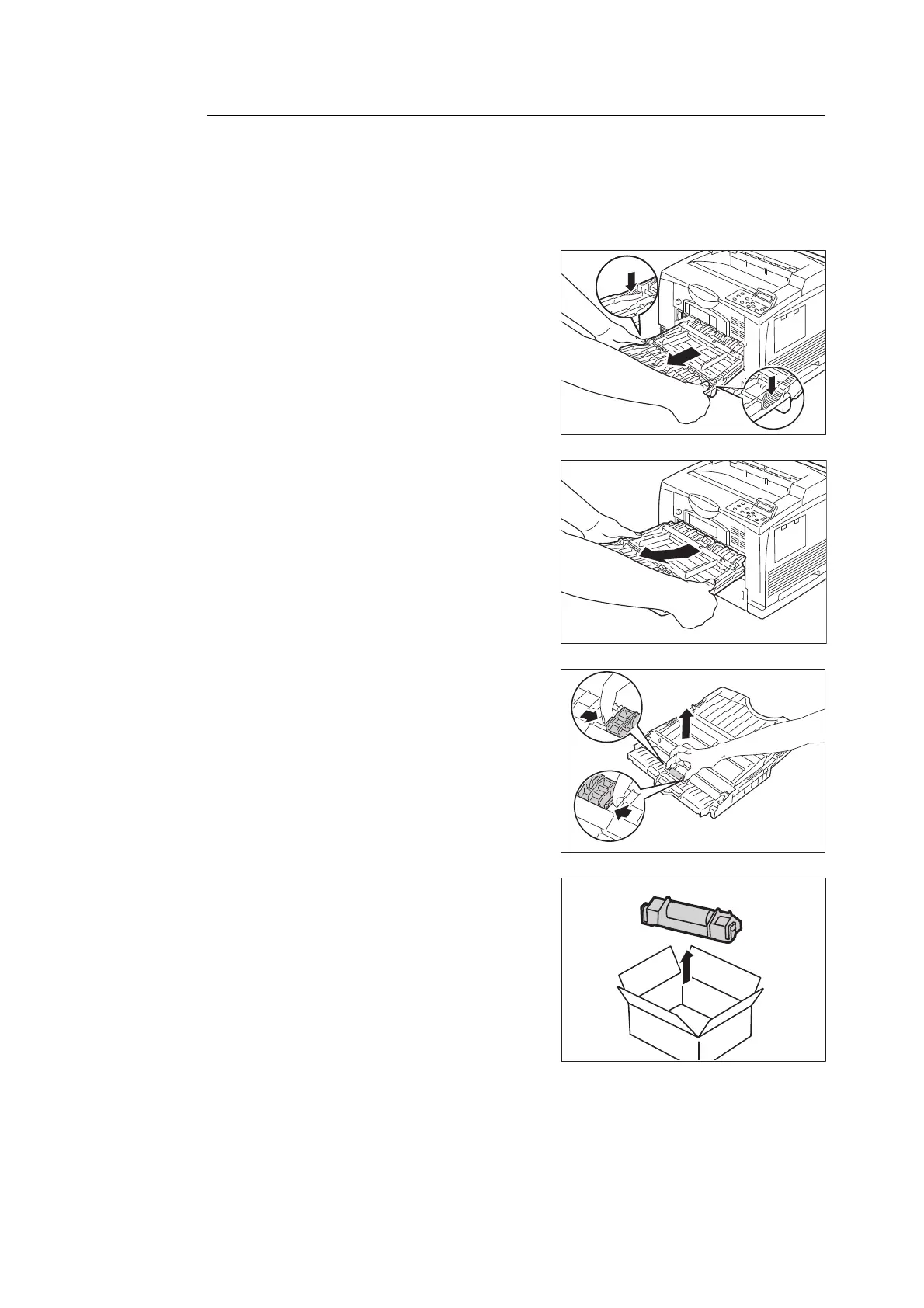

Use the following procedure to replace the Bypass Feed Roller Unit
1. Open the bypass tray.
2. Grasping the indentations on both sides of
the bypass tray, pull out the tray up to the
position where it stops.
3. Reposition your hands as shown in the
illustration and pull up the bypass tray at an
angle.
4. While lightly pinching the edges of the
Bypass Retard Roller, remove it from its
holder.
5. Take the new Bypass Retard Roller out of
the box.
To Next Page
