7.1 Replacing Consumables 253

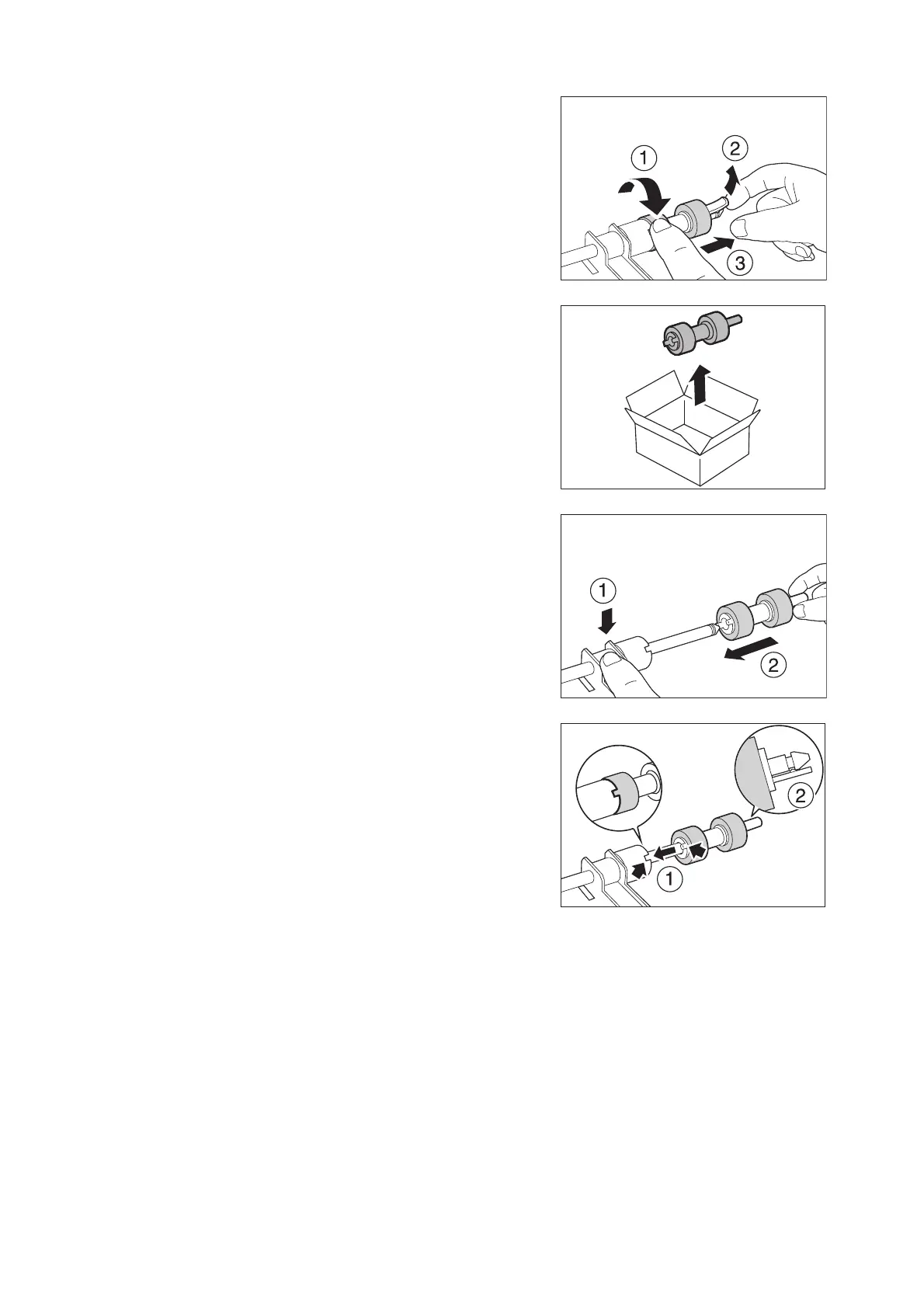

3. While pressing down the retard portion
(right illustration) with your left hand (1) and
lightly pulling up the hook on the roller with
your right index finger (2), slide the tray
retard roller to the side from the shaft of the
paper tray, and then slowly remove it (3).
4. Take tray feed roller out of the box.
5. In the groove of the paper tray’s shaft (1),
slowly insert the hook of the new tray retard
roller (2).
6. Align the groove of the tray retard roller with
that of the shaft (1), and firmly insert the
roller (2).
To Next Page
