REPLACEMENT OF CONSUMABLES
5.6 Replacing the Brake roller
1. Move the Hopper down to the "low" position if it is set in an upper level.
For details, refer to “2.5 Setting the Hopper Height” on page 15.
2. Open the ADF cover.
Refer to “2.3 Opening and Closing ADF” on page 12.
3. Open the Pad cover on the lower transport path.

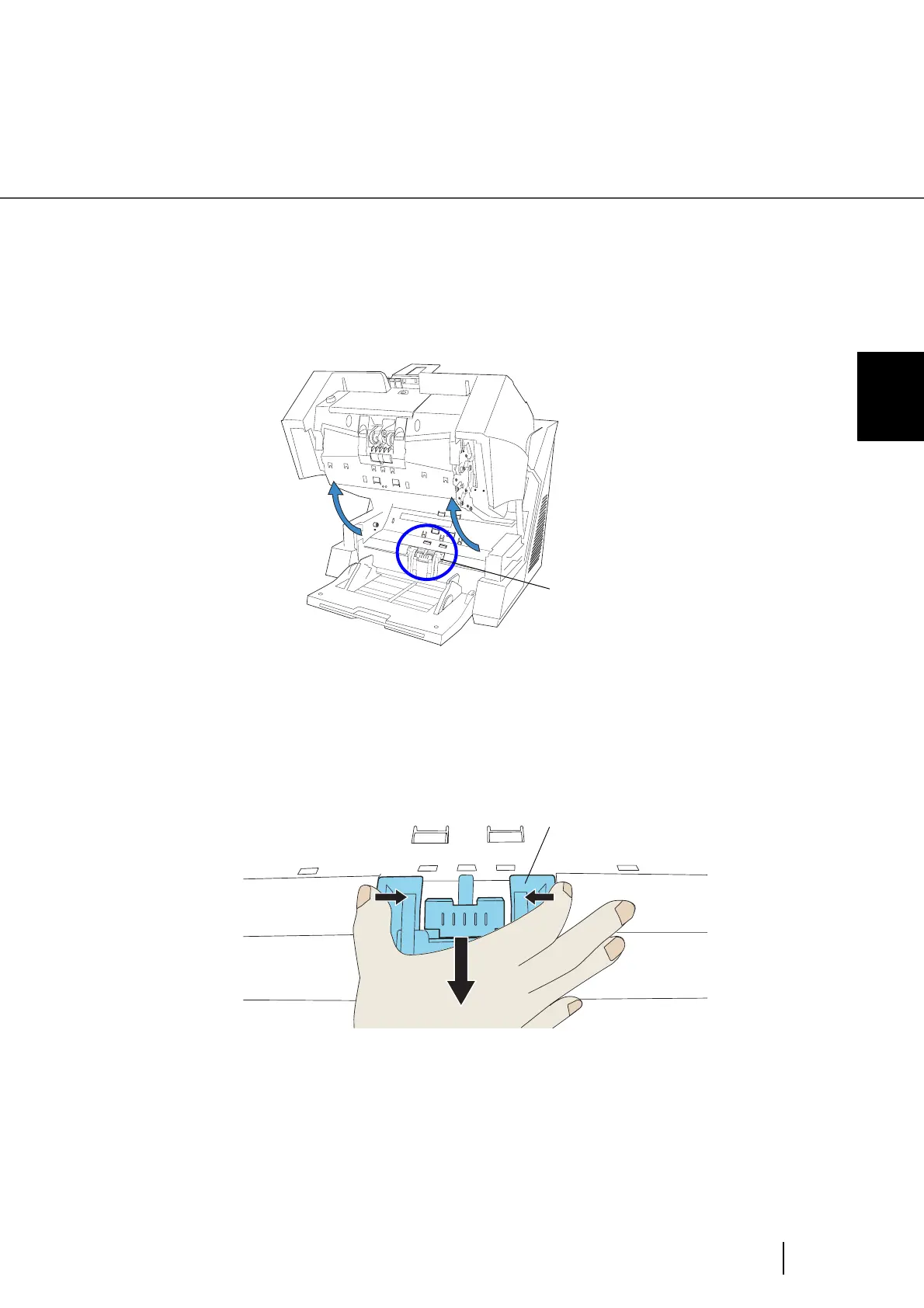

Grab both sides of the cover, press to the inside and pull down (towards you), as shown in the
illustration below.
Pad cover
Pad Cover
