3
1.1 Names and Functions of Parts
1
NAMES AND FUNCTIONS OF PARTS

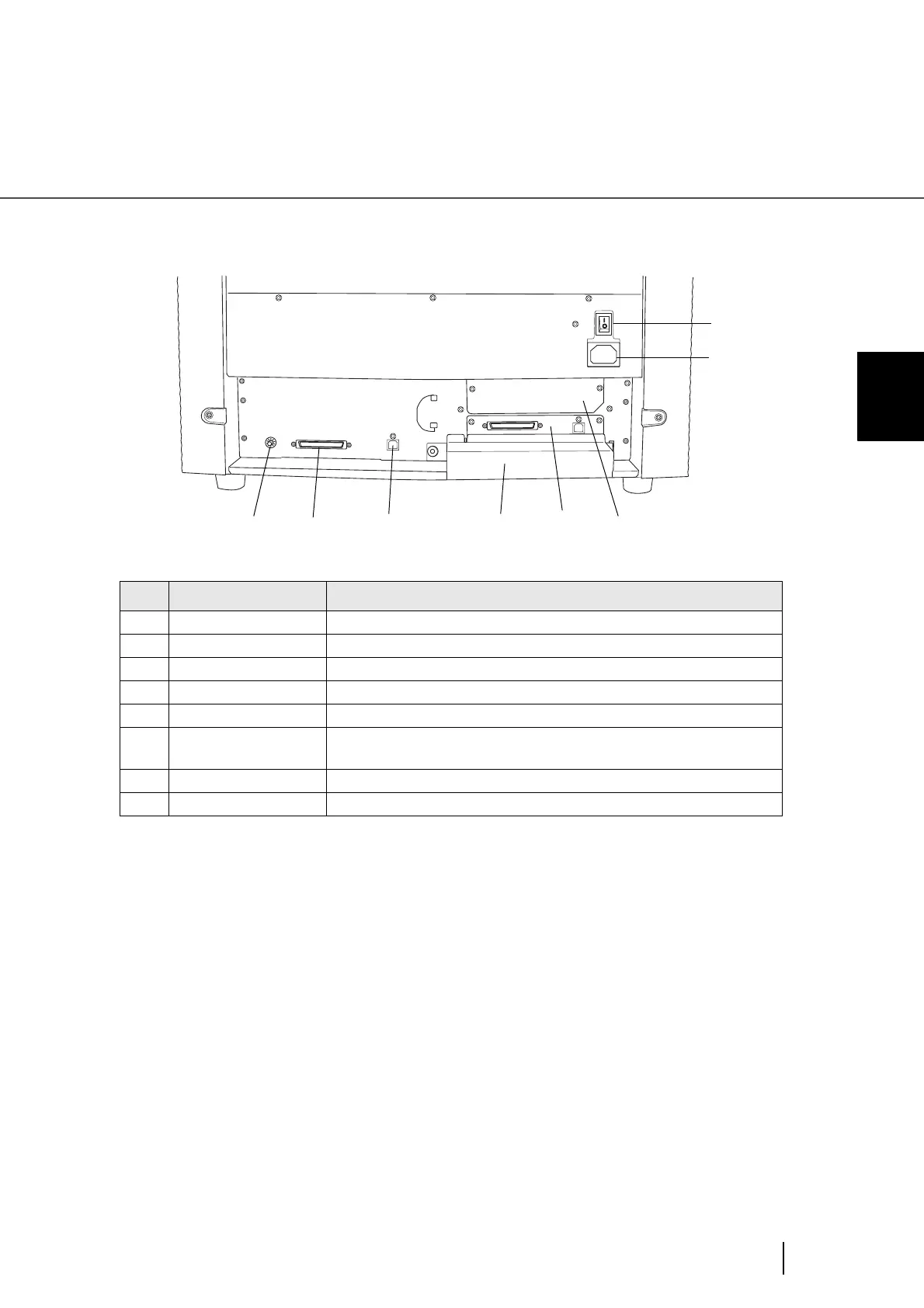

■ Rear side
No. Name Function
1 Main power switch For switching the power supply ON/OFF.
2 Power connector For connecting the AC cable.
3 SCSI ID Switch Sets the scanner’s SCSI ID.
4 SCSI connector For connecting the SCSI cable.
5 USB connector For connecting the USB cable.
6 Extended memory
slot
For connecting an extension memory (sold separately). For details see
section 9.4.
7 VRS slot The VRS board has been installed in this slot.
8 Extended slot A spare slot for a third party board
1
2
3
4
5
6
7
8
