Checking and Clearing the Consumable Counters

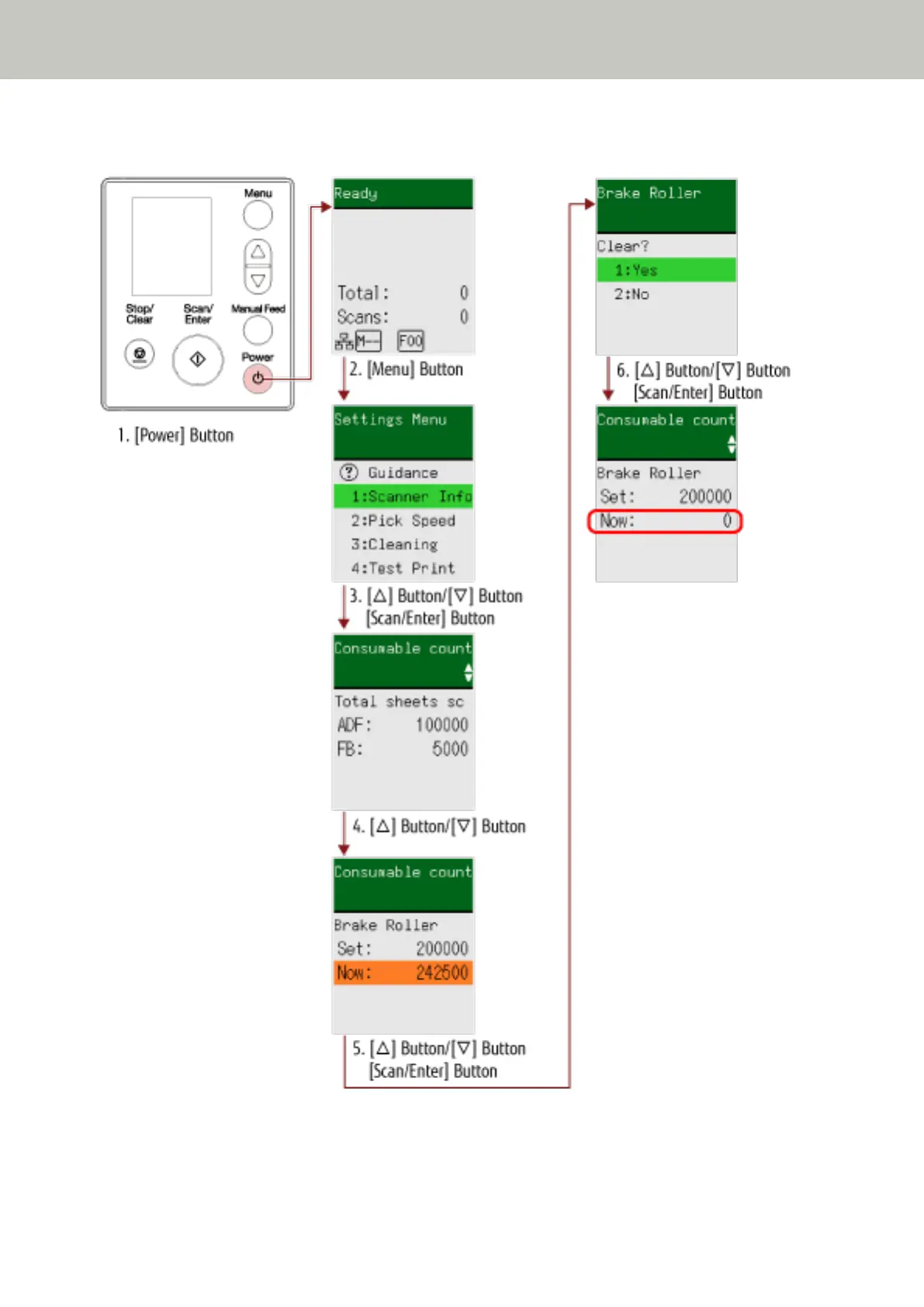

1 Press the [Power] button on the scanner.

The [Ready] screen is displayed on the LCD.

How to Use the Operator Panel [fi-8190/fi-8290/fi-8170/fi-8270]

157
