Replacing the Brake Roller
Replace the brake roller in following procedure.
1 Turn off the scanner, unplug the power cable and wait for at least 15 minutes.
For details, refer to How to Turn the Power OFF (page 73).
2 Remove all documents from the ADF paper chute (feeder).
3 Open the ADF.
For details, refer to How to Open the ADF (page 77).
When the ADF is open, it might close accidentally. Be careful not to get your fingers
caught.
4 Remove the brake roller.

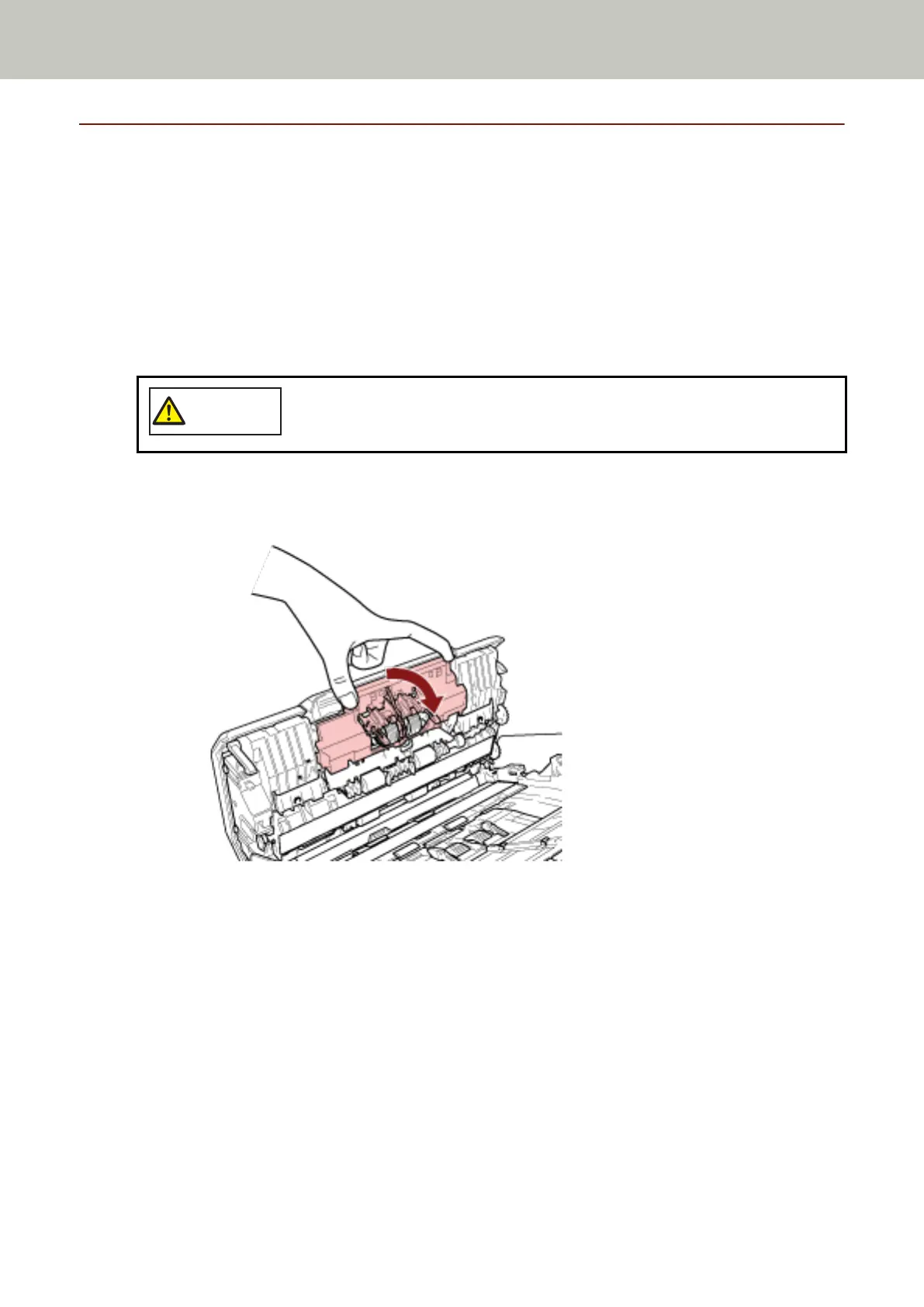

a Hold both ends of the cover, and open it in the direction of the arrow.
