Fujitsu fi-8190

To Next Page

To Previous Page

HINT

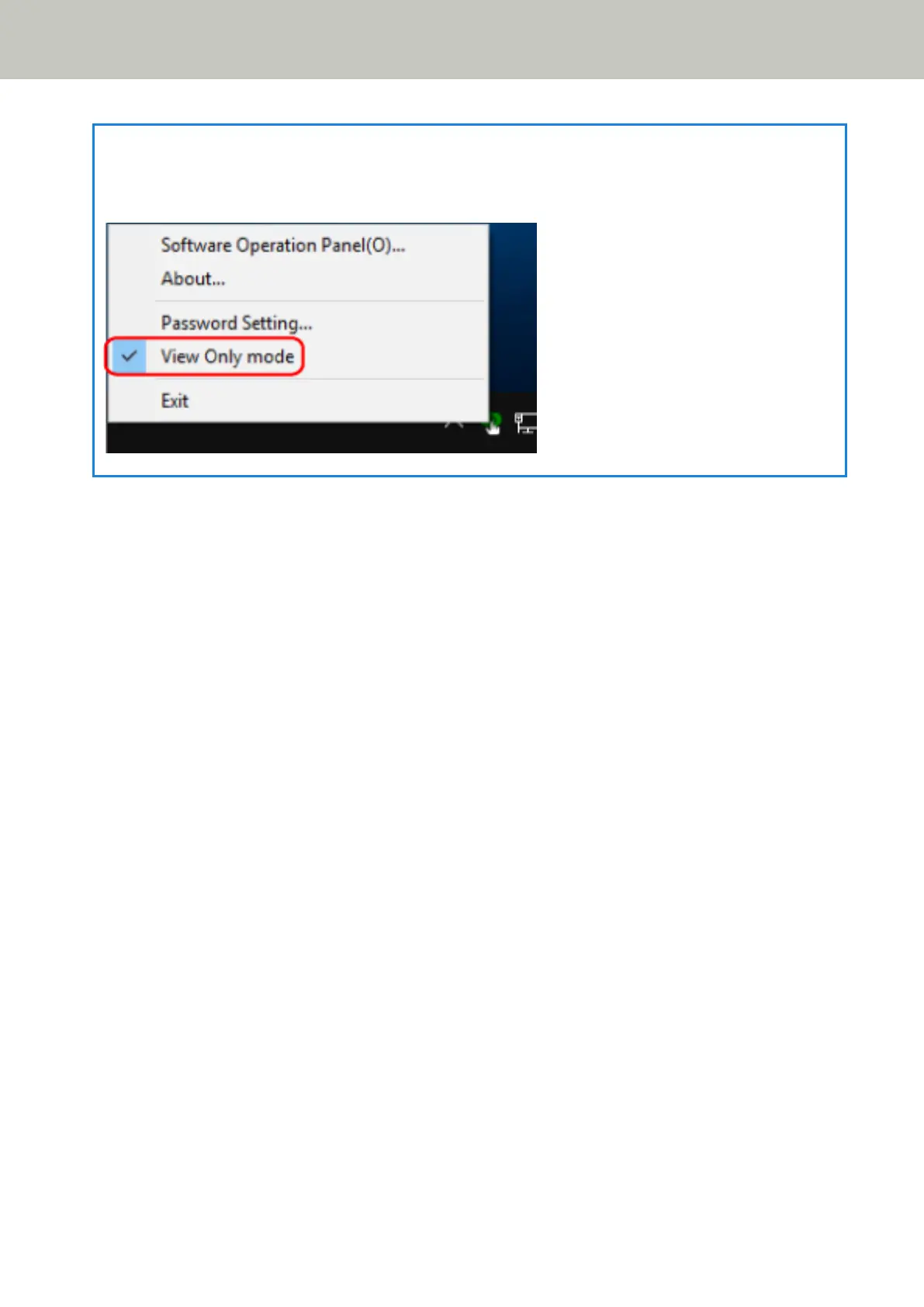

In [View Only mode], a check mark appears next to [View Only mode] in the menu that is displayed by right-

clicking the Software Operation Panel icon in the notification area.

Scanner Settings (Software Operation Panel)

337
