Fujitsu M10 User Manual

㩿㪉㪀
㩿㪈㪀
㩿㪊㪀
㩿㪋㪀
㩿㪌㪀
FRONT
Number in
figure
Description
1M12 hexagon head bolt
2Upper connecting bracket
3Lower connecting bracket
4M6 flat-head screw
5 Leveling foot
Note -
Be careful when attaching the side plate because it weighs about 13 kg.
flat-head screws.
c. Finally, tighten the M12 hexagon head bolts for securing the upper connecting
brackets that have temporarily joined the racks.

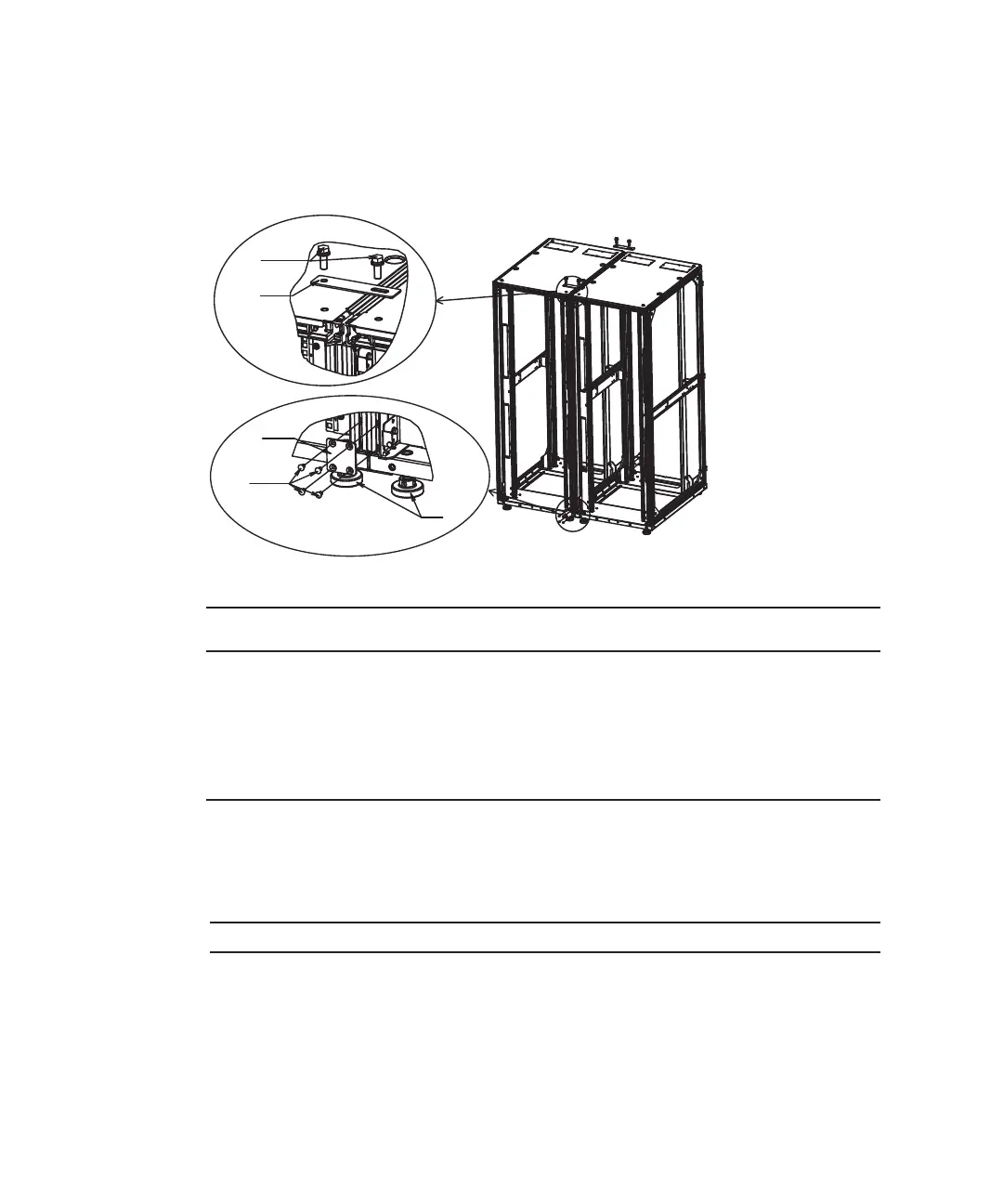

Figure 3-23
Attaching connecting brackets
10.
Attach the side plate to expansion rack 2.
Attach the side plate removed from expansion rack 1 with the 10 screws of the
side
plate removed from expansion rack 1.
Fujitsu M10/SPARC M10 Systems Installation Guide
･
July 201594
