Fujitsu M10 User Manual

㪌㪇 㪌㪇㪏
㪏
㩿㪋㪀
㩿㪊㪀
㩿㪋㪀
㩿㪈㪀
㩿㪉㪀
㩿㪊㪀
FRONT
REAR
Number in
figure
Description
1M12 screw
2Top cover
3M6 core spring nut
4 Vertical column
Note -
Confirm that the heights of expansion racks 1 and 2 are aligned. If not, adjust the
heights by using the leveling feet.
Note -
Be careful because work on the top cover section is done high off the ground. Never
do anything dangerous, such as putting your foot on the rack, which would be very dangerous.
Note -
If a connecting packing protrudes or is recessed when you align expansion racks 1 and
2, adjust it by pulling or pushing it with your fingers.

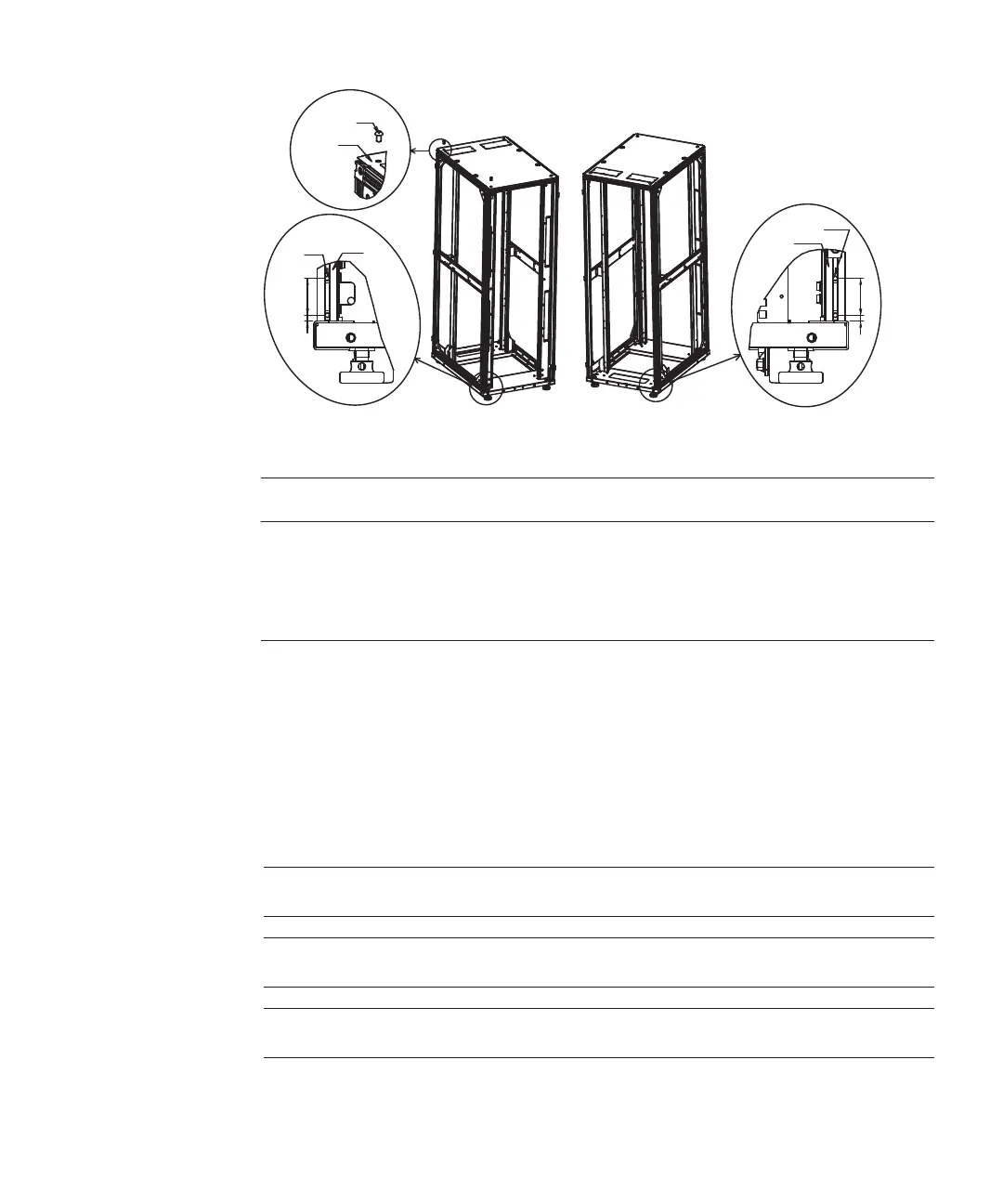

Figure 3-22
Attaching core spring nuts (expansion rack 2 side)
8.
Align the heights of expansion racks 1 and 2.
a. Arrange expansion rack 2 next to expansion rack 1.
b. Adjust the leveling feet of expansion rack 2 to align its height with that of
expansion rack 1.
9.
Attach the upper and
lower connecting brackets.
a. Align the upper connecting brackets with the top covers of expansion racks 1
and 2, and temporarily join them using M12 hexagon head bolts.
b. Using the M6 core spring nuts attached to the front and rear vertical columns
of the rack in steps 5 and 7,
secure the lower connecting brackets with M6
Chapter 3 Installing the System 93
