c. The latch clicks when the inner rail is secured to the chassis.
d. Confirm that the attached inner rail is firmly locked and does not come loose
by shaking it gently.
e. Attach the inner rail on the other side in the same manner.

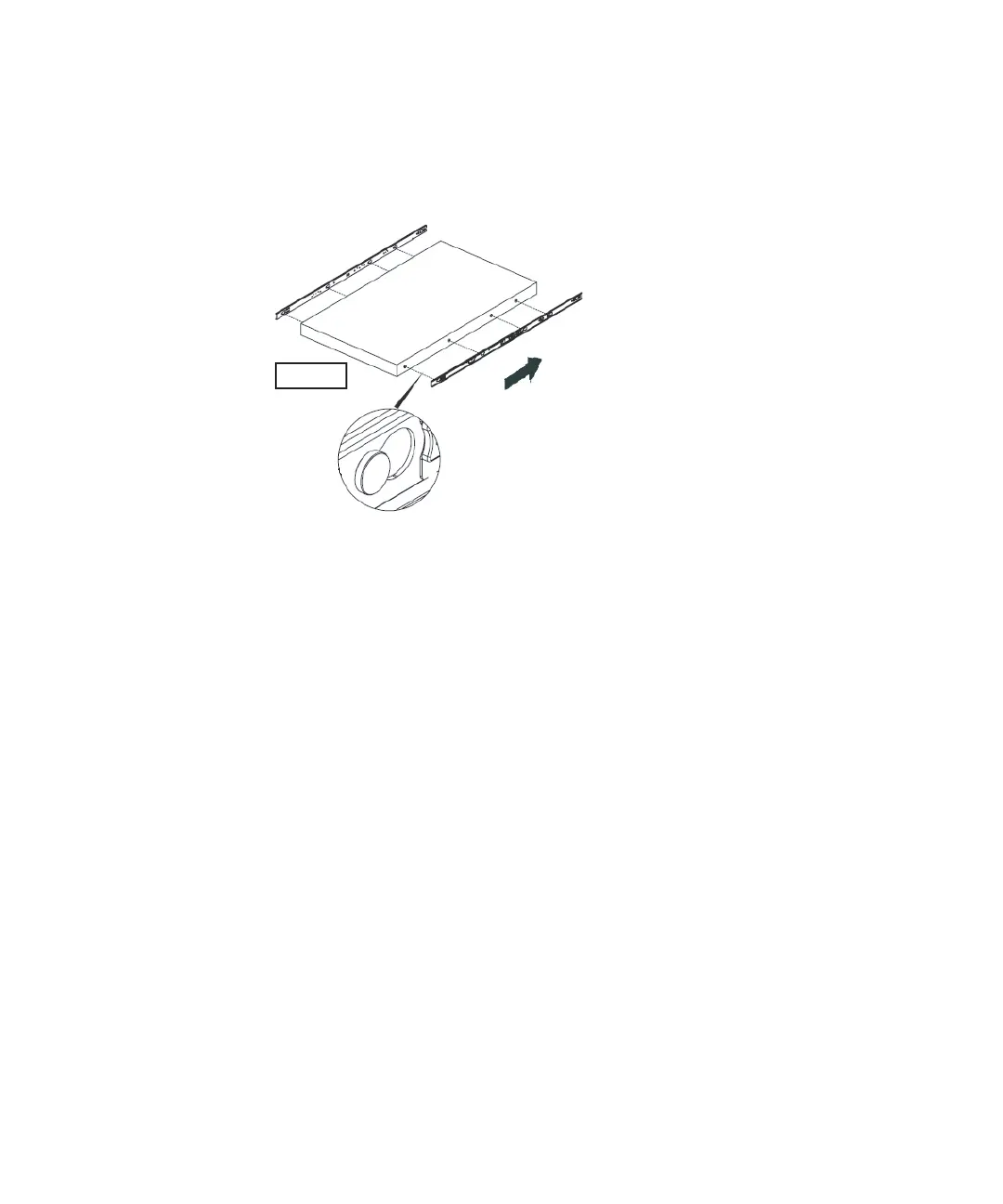

Figure 3-29
Attaching the inner rail
7.
Mount
the chassis in the rack.
a. Align the edge of the inner rail attached to the chassis with the edge of the
middle rail on the rack (A in Figure 3-30), and insert the chassis.
b. While you insert the chassis, the rail will click when locked. Move the green
lock
lever (B in Figure 3-30) on the inner rail forward to release the lock, and
insert the chassis into the rack.
Fold out the green levers on the side edges of the front of the chassis, and
push in the chassis farther, all the way. Then, release the levers to
lock the
chassis.
c. Confirm that the chassis is secured to the rack by gently shaking the chassis.
Chapter 3 Installing the System 99
