Note -
After removing its screw, hold the rail level with both hands. If the rail tilts, it may
stretch.
FRONTFRONT
REAR
1U top
1U bottom
2U top
Mounting
area (4U)
Mounting
area (4U)
REAR
2U bottom
FRONT
FRONT

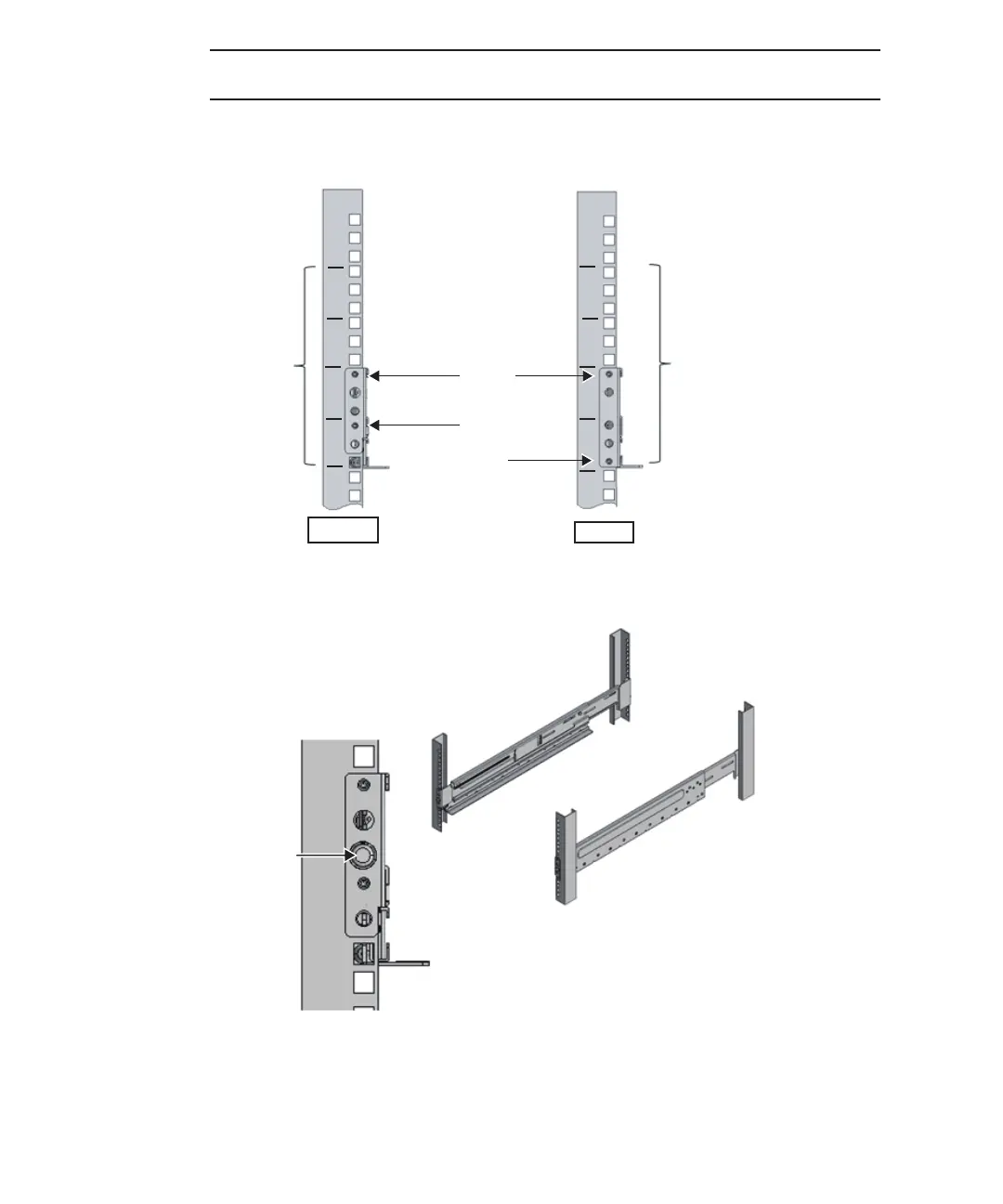

Figure 3-43
Attaching the rail: Locations of protrusions
Figure 3-44
Attaching the rail: Fixing location of the screw
7.
Attach the cable support fixing brackets to the rear supporting columns of the
rack.
