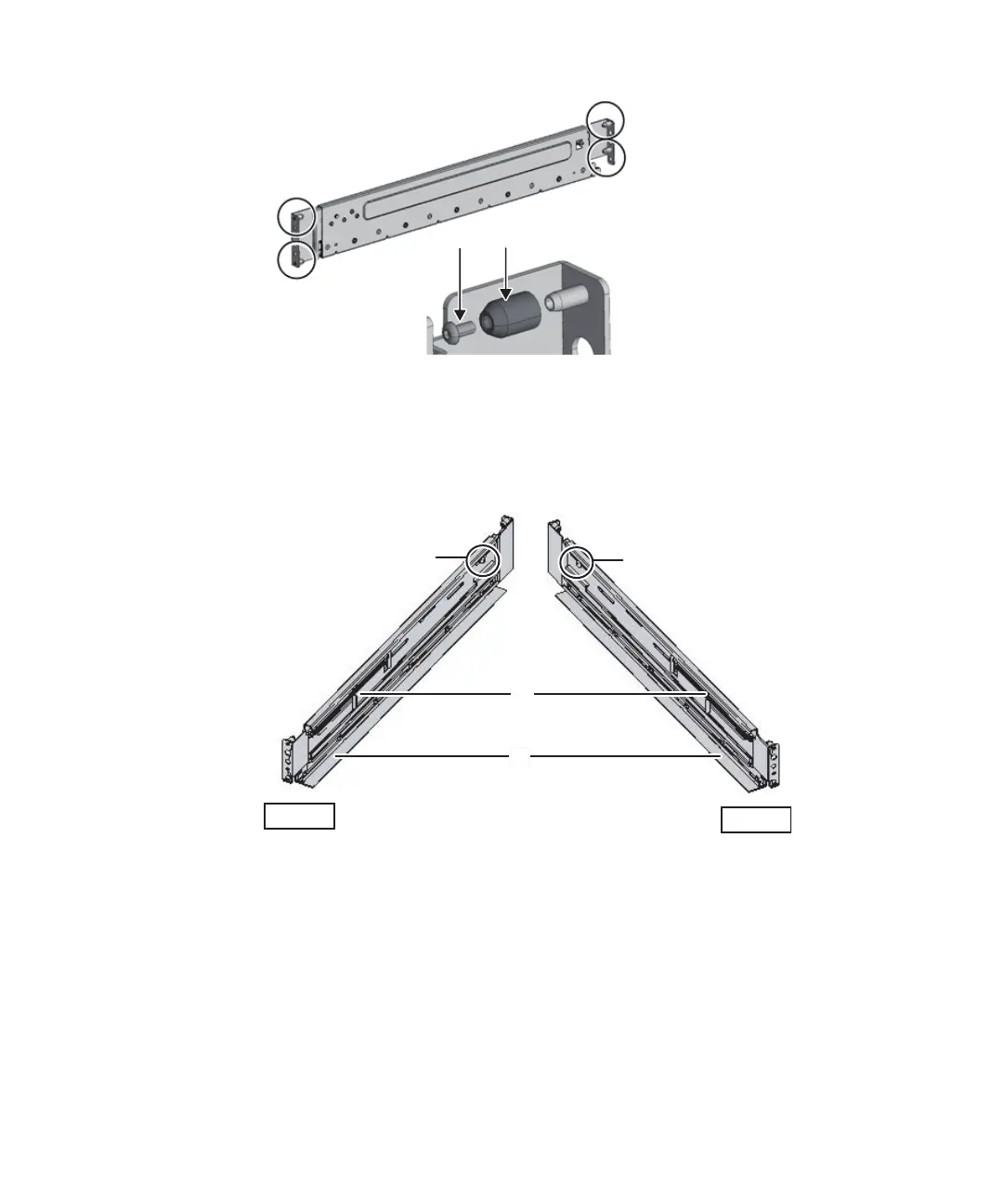

Figure
3-41
　　
Removing
a
rail
pin
5.
Remove
the
one
screw
(A
in
Figure
3-42)
from
the
side
of
the
rail.
The
removed
screw
will
be
used
in
step
8.
Figure
3-42
　　
Screws
on
the
sides
of
rails
6.
Attach
the
rail
to
the
rack.
Attach
the
rail
such
that
the
spring-loaded
side
(B
in
Figure
3-42)
faces
the
front
and
the
flange
(C
in
Figure
3-42)
faces
the
bottom.
a.
From
the
front
of
the
rack,
insert
the
rail
protrusions
into
2U
top
and
1U
top
in
the
front
supporting
column
of
the
rack.
b.
Pull
out
the
rail
to
as
far
as
the
depth
of
the
rack.
c.
Insert
the
rail
protrusions
into
2U
top
and
1U
bottom
in
the
rear
supporting
column
of
the
rack.
d.
Secure
the
rail
with
one
M6
screw
to
the
front
supporting
column
of
the
rack.
The
fixing
location
is
2U
bottom.
e.
Attach
the
other
rail
in
the
same
manner.
Chapter
3
　
Installing
the
System 107
