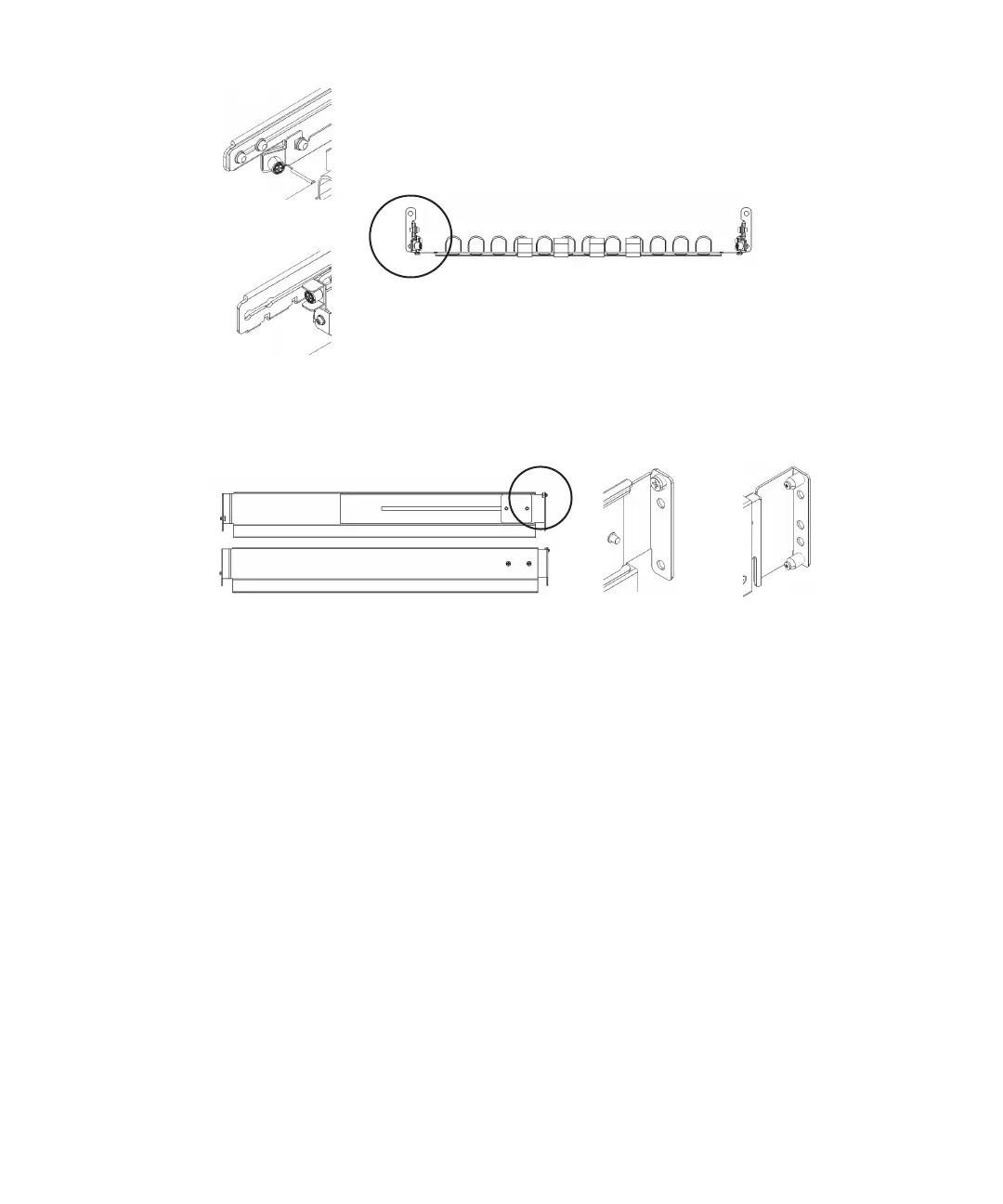

Figure 3-62
Type-2 cable support
Figure 3-63
Type-2 rail
2.
Confirm that the rack is fixed in place to prevent the rack from toppling over.
For details, see "3.3.2 Securing the rack."
3.
Step 3 differs depending on the shape of the supporting column holes of the
rack. Perform the work appropriate to
the shape of the supporting column
holes of the rack.
For racks with supporting columns having angled holes
Attach cage nuts to the left and right supporting columns of the rack.
- Attachment locations in the front supporting columns: (From the bottom) 1U
center and 2U bottom
- Attachment locations in the
rear supporting columns: (From the bottom) 1U
center and 2U center
Fujitsu M10/SPARC M10 Systems Installation Guide
･
July 2015122
