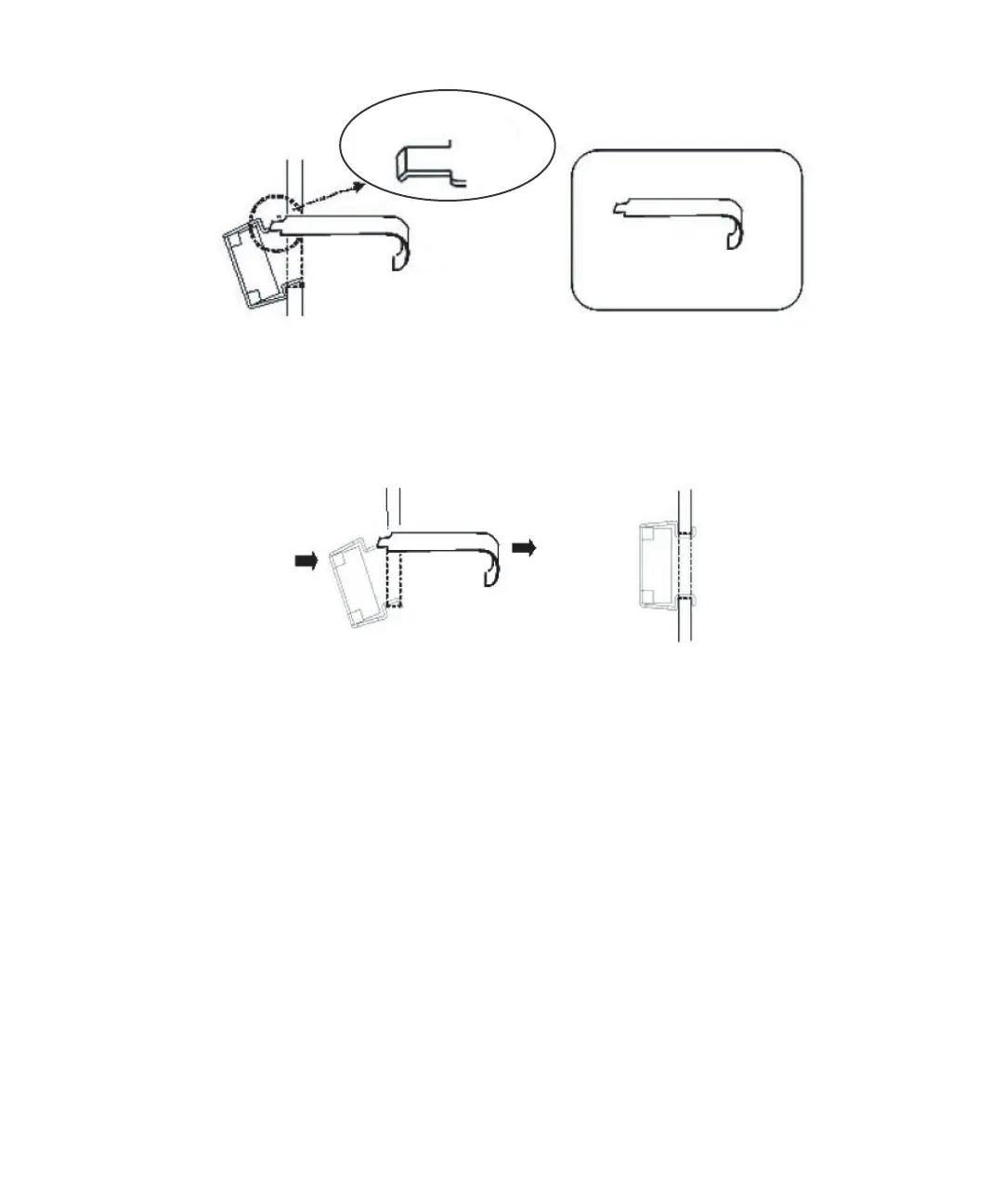

Cage nut attachment tool
Direction of
tool hook tip
A
B
Completed view
Figure 3-66
Using the cage nut attachment tool
c. Pull the tool forward to attach the cage nut.
Push in direction A while simultaneously pulling in direction B as shown in
Figure 3-67.
Figure 3-67
Attaching a cage nut
For supporting columns with M6 screw holes
- For the Type-1 rail
Remove the
pins at the front and rear of the rail.
a. Remove the screw (A in Figure 3-68) securing the rail pin.
b. Remove the pin (B in Figure 3-68).
c. Remove pins from the left and right rails in the same manner.
d. Store the removed pins and screws (eight pins
and eight screws in total) for
future use when the chassis is moved.
Fujitsu M10/SPARC M10 Systems Installation Guide
･
July 2015124
