A
A
B
FRONT
FRONTFRONT
C
Note
-
A
label
with
the
serial
number
of
the
PCI
expansion
unit
is
affixed
to
the
front
cover.
Be
sure
to
attach
the
front
cover
to
the
corresponding
chassis.

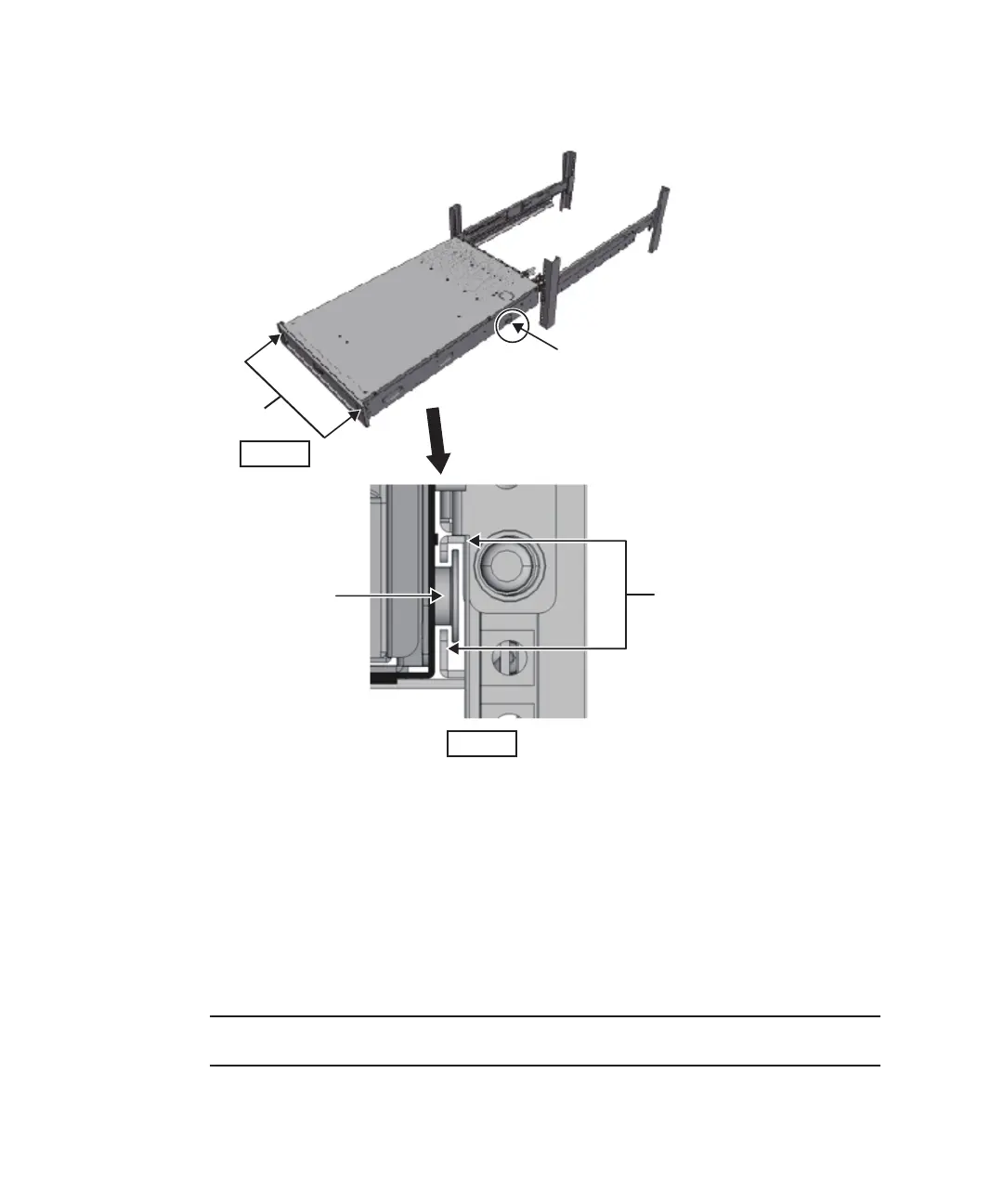

Figure
3-82
　　
Mounting
in
the
rack
9.
Secure
the
PCI
expansion
unit
in
the
rack.
a.
Push
out
the
left
and
right
slide
locks
on
the
front
cover
(C
in
Figure
3-82)
to
release
the
locks,
and
remove
the
front
cover.
b.
Tighten
the
two
M6
screws
at
two
locations
on
the
front
of
the
PCI
expansion
unit
(A
in
Figure
3-83)
to
secure
it
to
the
rack.
c.
Insert
the
left
and
right
hooks
on
the
inside
of
the
bottom
of
the
front
cover
into
the
grooves
at
the
bottom
front
of
the
PCI
expansion
unit
to
attach
the
front
cover.
Fujitsu
M10/SPARC
M10
Systems
Installation
Guide
･
July
2015134
