Table 3-11
Dimensions between the front and rear columns and scale positions (continued)
Dimension between front and rear columns (mm) Scale position
730 2nd
720 3rd
710 4th
700 5th
690 6th
680 7th
670 8th
660 9th
650 10th
Note -
If you have difficulty laying a thick cable into the cable support, move forward the
fixing location of the cable support to make the work easier.
c. Close the rear door of the rack, and confirm that the cable support does not
interfere. If the cable support interferes with the rear door, remove the cable
support. Even if you remove the cable support, leave the rails secured with
the two M6 screws to the rack.

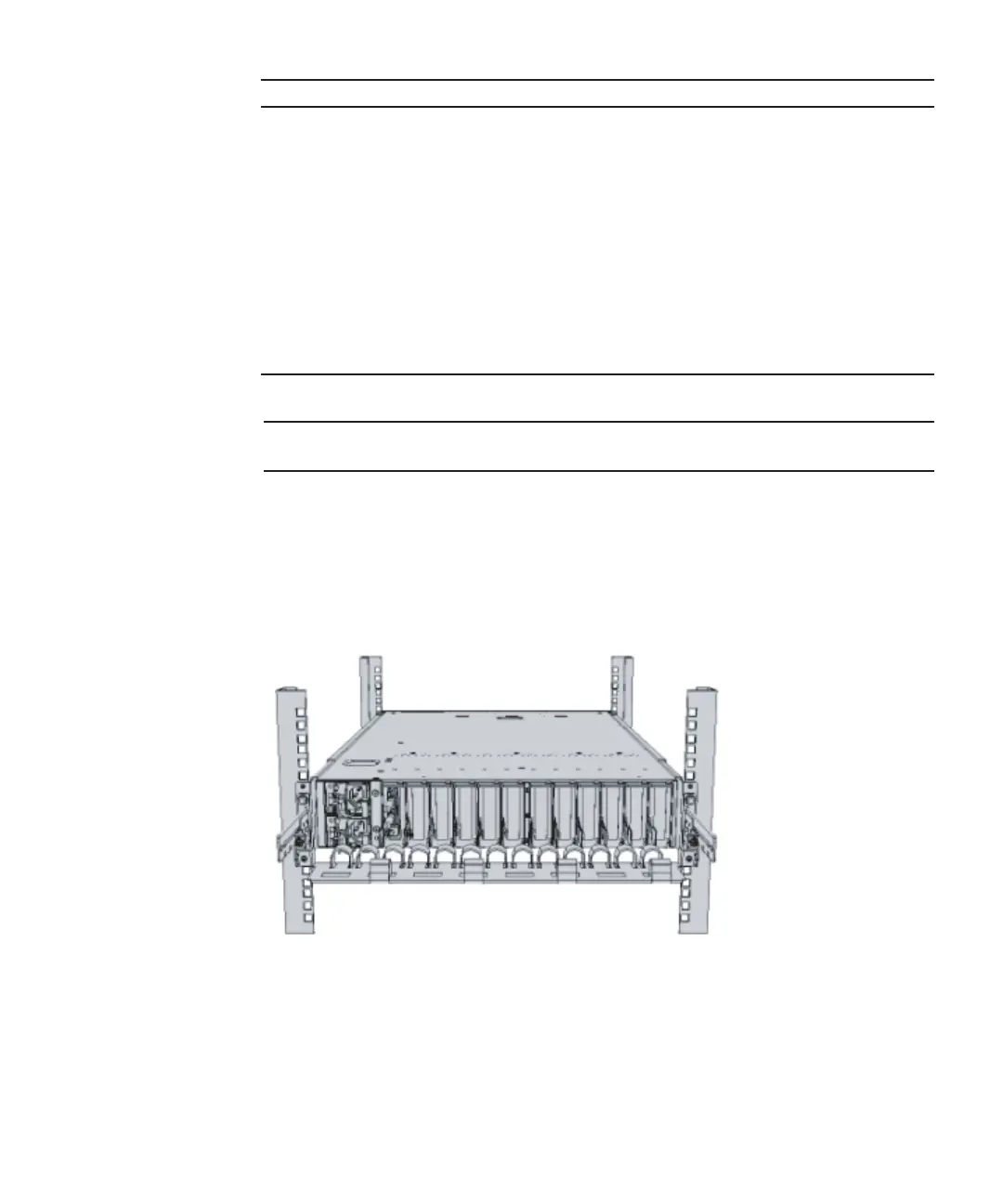

Figure 3-89
Completed cable support attachment
