Fujitsu M10 User Manual

REAR
C
Note -
If the dimension between the front and rear columns of the rack is less than 740 mm,
secure the cable support without sliding it in all the way. The fixing location varies
depending on the dimension between the front and rear columns of the rack. Based on
Figure 3-88, align
the scale marks (E in Figure 3-88) (spacing: 10 mm) on the cable support
with the screws (F in Figure 3-88) of the fixing brackets to secure the cable support.
REAR
Scale position 1st
Scale position 10th
E
F
Scale
position 6th
Table 3-11
Dimensions between the front and rear columns and scale positions
Dimension between front and rear columns (mm) Scale position
740 1st
b. Slide in the cable support all the way, and tighten the four screws (C in Figure
3-87).

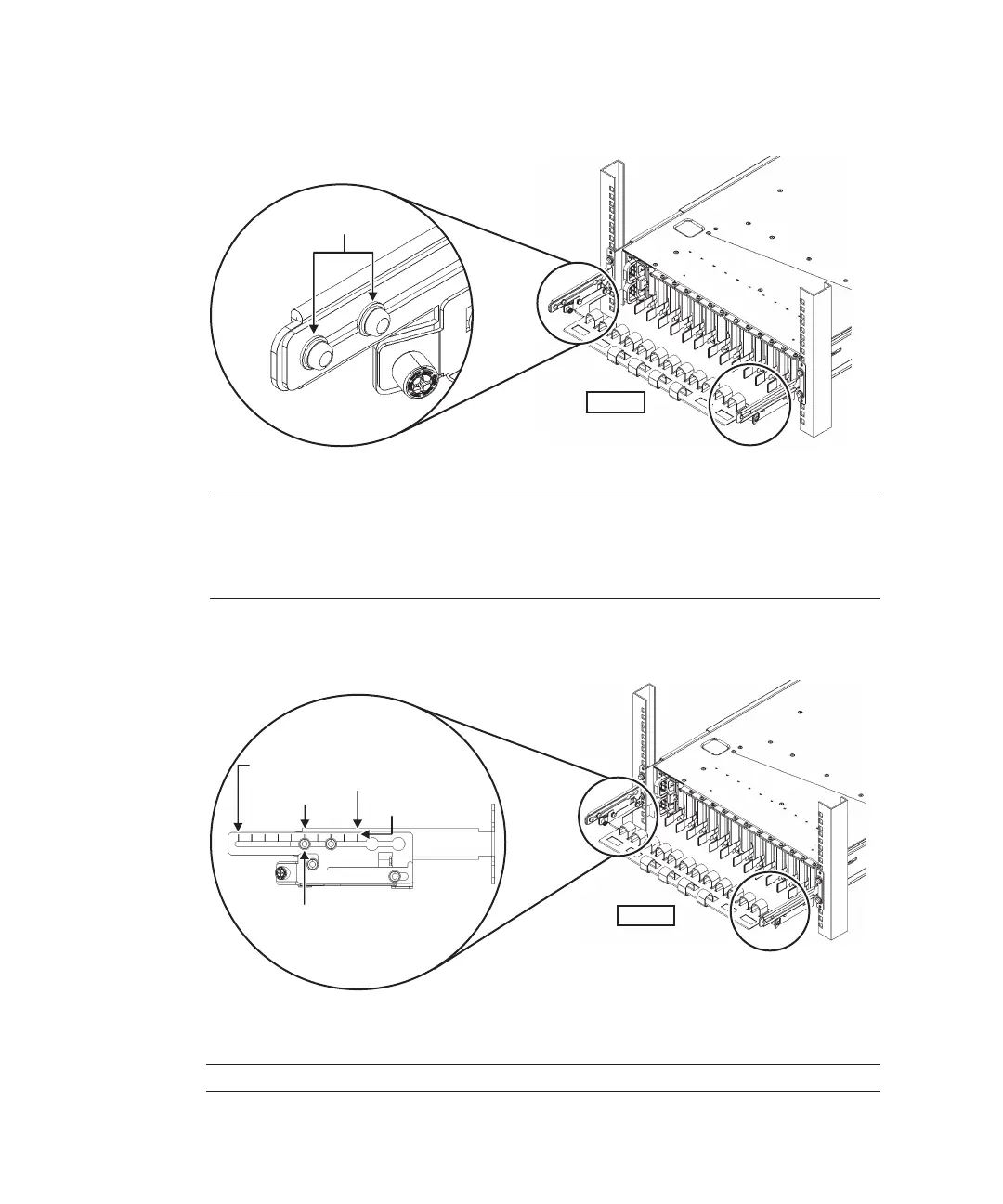

Figure 3-87
Attaching the cable support (2)
Figure 3-88
Attaching the cable support (3)
Fujitsu M10/SPARC M10 Systems Installation Guide
･
July 2015138
