Fujitsu M10 User Manual

A
A

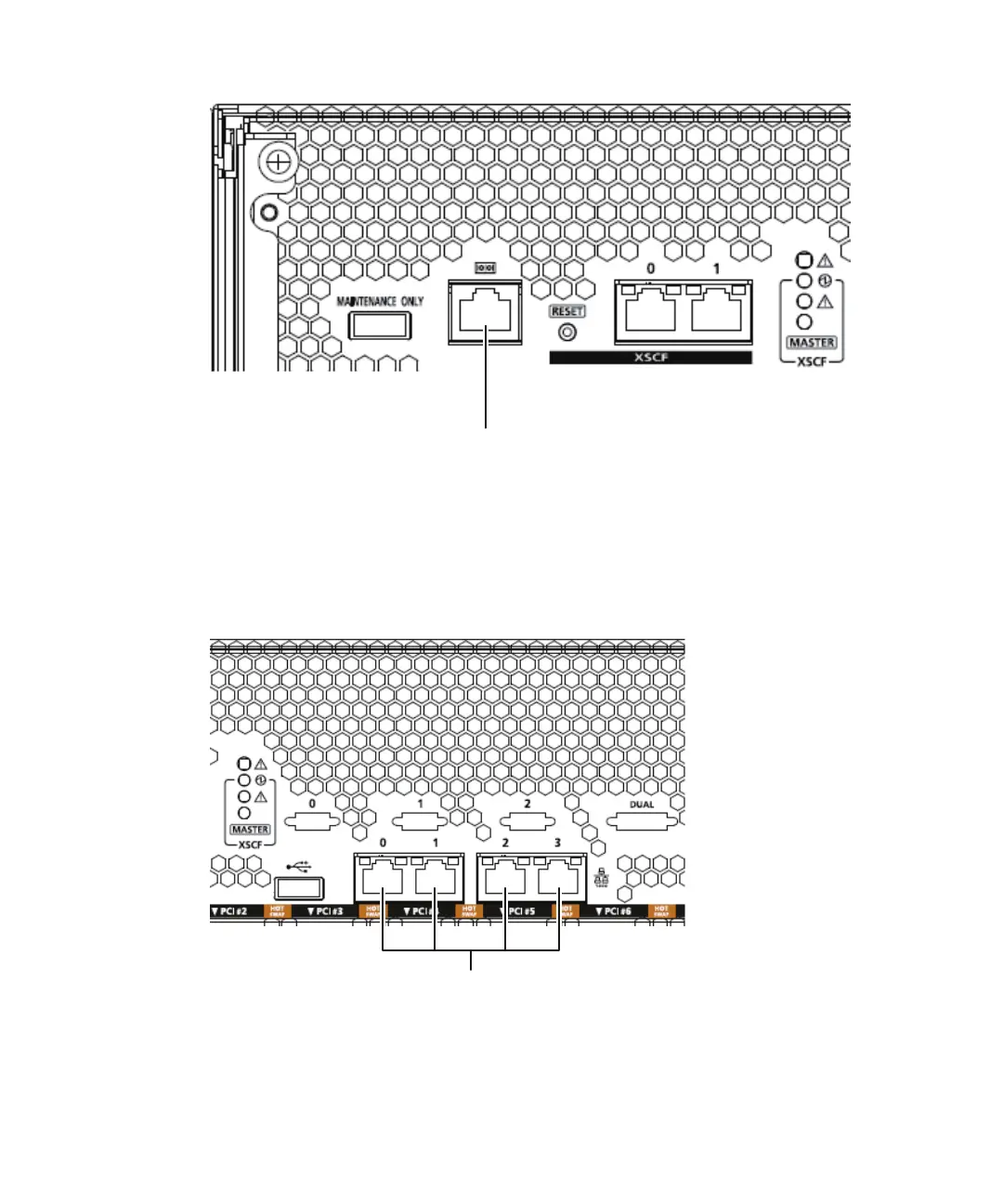

Figure 5-4
Serial port location
2.
Connect a LAN cable of Category 5 or higher from a GbE port (A in Figure 5-5)
to the network switch or hub.
The GbE ports are used for the user network. Connect the other servers, other
PCs, UPS, etc. that are necessary for business via
the network switch or hub.
Figure 5-5
GbE port locations
3.
If a PCIe card is mounted, connect a LAN cable and I/O cable to the respective
ports on the PCIe card.
4.
Secure the cables to the cable support.
While leaving extra length, secure the cables connected to the PCIe card to
the
cable support.
Fujitsu M10/SPARC M10 Systems Installation Guide
･
July 2015166
