labels.
Note
-
The
two
ports
have
the
same
shape
and
so
may
be
incorrectly
connected.
Check
the
labels
at
both
ends
of
each
cable
to
confirm
that
the
cable
is
connected
to
the
correct
ports.
Hold
the
connector
of
the
link
cable
(electrical)
or
link
cable
(optical),
and
insert
it
straight
into
the
opening.
Do
not
hold
the
cable
when
inserting
it.
Note
-
PCI
cassettes
are
mounted
upside
down
in
the
SPARC
M10-4/M10-4S
and
the
PCI
expansion
unit.
Accordingly,
the
port
locations
of
PCI
cards,
including
the
link
card,
are
also
upside
down.
Be
careful
about
this
when
mounting
the
cables.

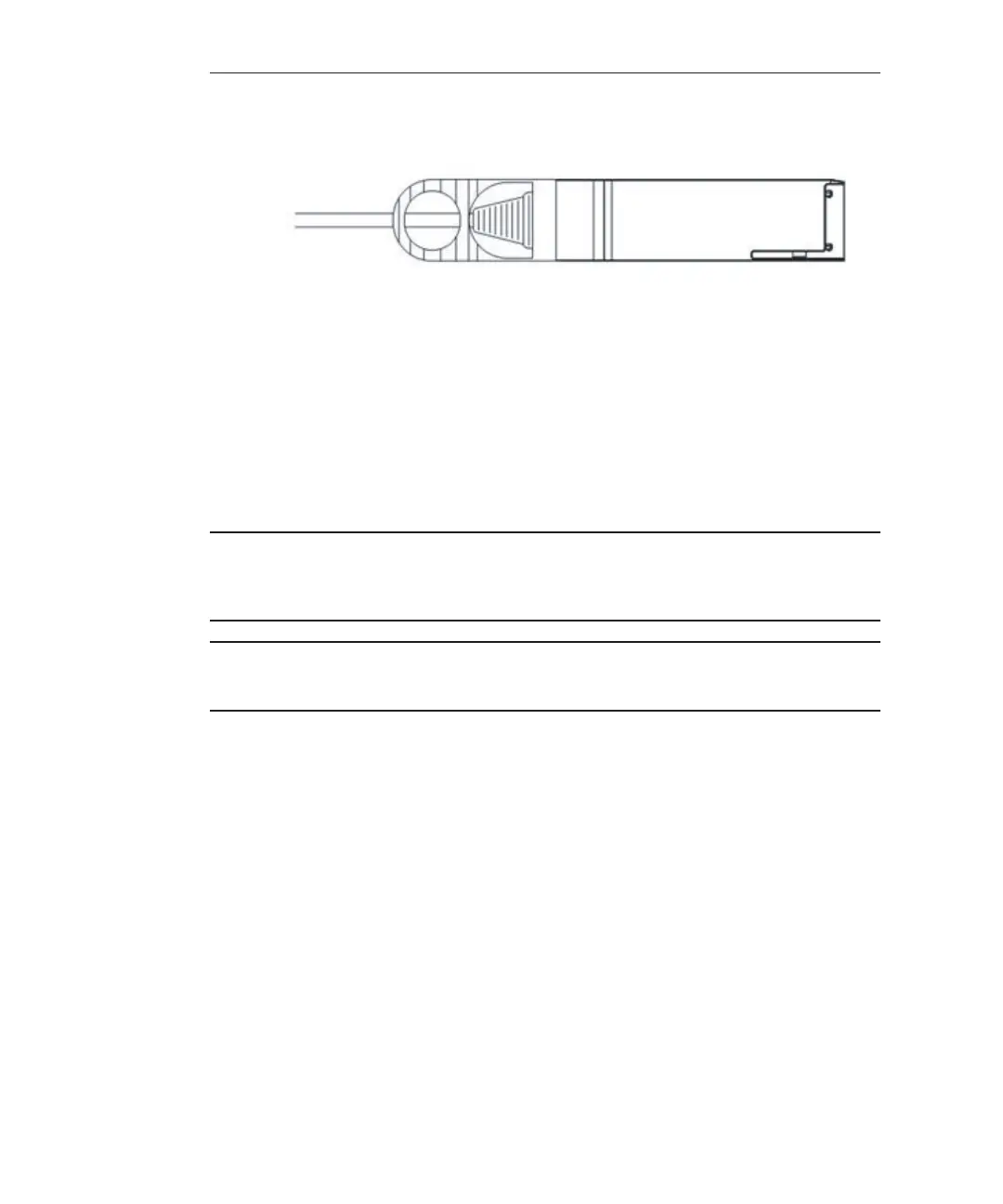

Figure
5-7
　　
Link
cable
(optical)
shape
a.
Connect
one
end
of
a
link
cable
to
the
port
(B
in
Figure
5-8)
on
the
link
board
of
the
PCI
expansion
unit.
b.
Connect
the
other
end
to
the
port
(B
in
Figure
5-9
or
B
in
Figure
5-10)
on
the
link
card
of
the
SPARC
M10
chassis.
　
c.
Connect
one
end
of
the
other
link
cable
to
the
port
(C
in
Figure
5-8)
on
the
link
board
of
the
PCI
expansion
unit.
d.
Connect
the
other
end
to
the
port
(C
in
Figure
5-9
or
C
in
Figure
5-10)
on
the
link
card
of
the
SPARC
M10
chassis.
Fujitsu
M10/SPARC
M10
Systems
Installation
Guide
ï½¥
July
2015168
