BB#00
BB#02
BB#03
BB#01
0L/0R
2L/2R
1L/1R
0L/0R
2L/2R
1L/1R
0L/0R
2L/2R
1L/1R
0L/0R
2L/2R
1L/1R
4.
Place
the
crossbar
cables
connected
to
the
2L
and
2R
ports
of
each
XBU
together
at
the
right
side
as
viewed
from
the
rear
of
the
rack.
5.
If
a
cable
holder
is
supplied
with
the
rack
used,
secure
the
crossbar
cables
placed
together
at
the
right
side
to
the
cable
holder
of
the
rack.

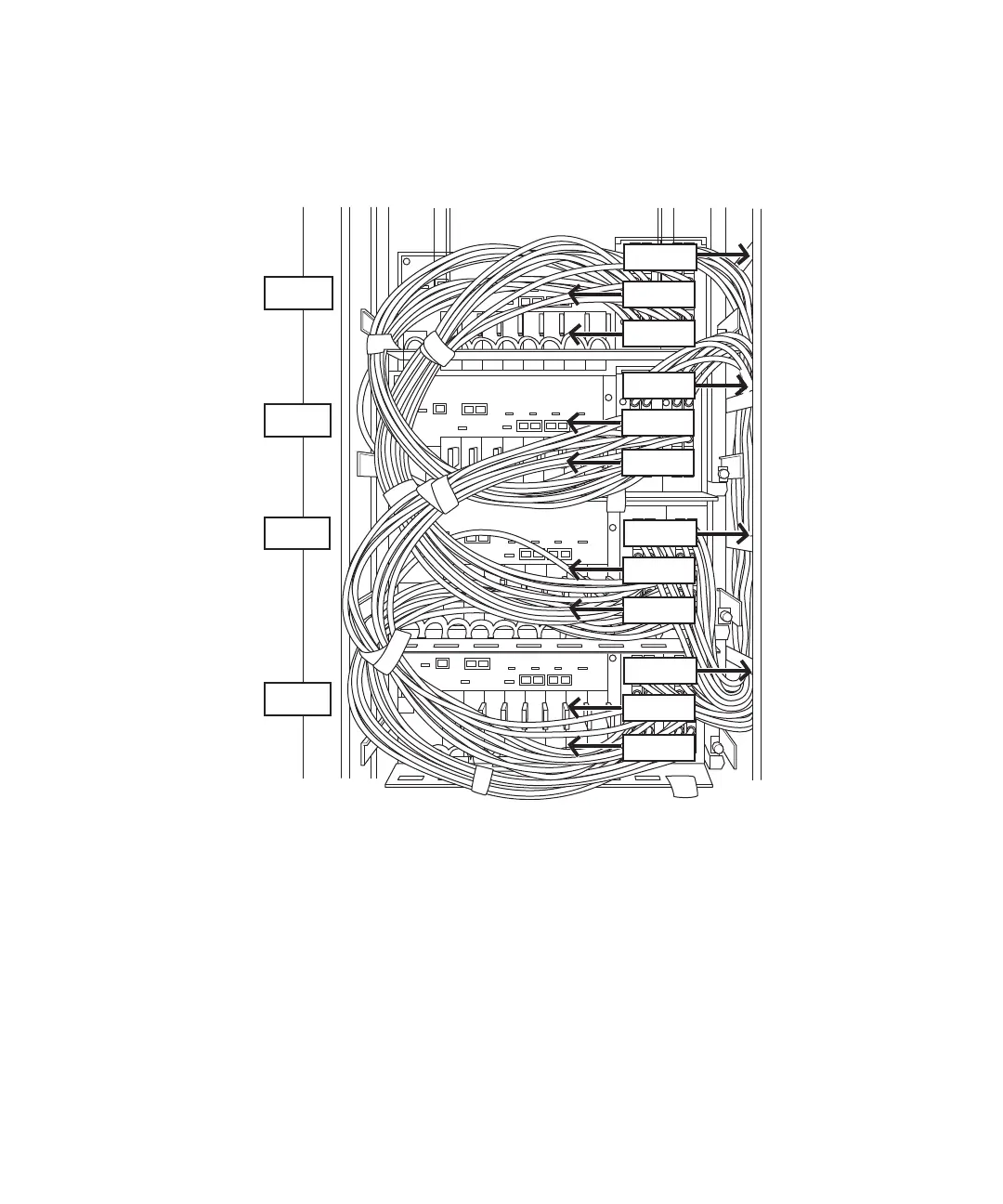

Figure
5-16
　　
Example
of
stored
cables
(4BB
configuration)
3BB
configuration
For
the
3BB
configuration,
place
the
crossbar
cables
connected
to
the
1L
and
1R
ports
of
XBU#0/#1
together
at
the
right
side
as
viewed
from
the
rear
of
the
rack.
Place
the
other
crossbar
cables
together
at
the
left
side
as
viewed
from
the
rear
of
the
rack.
1.
Hang
the
power
cords
from
the
left
side
as
viewed
from
the
rear
of
the
rack.
Place
the
power
cords
over
the
cable
support
fixing
bracket
to
hang
them
there
as
is.
2.
Place
the
crossbar
cables
connected
to
the
0L/0R
and
2L/2R
ports
of
each
XBU
together
at
the
left
side
as
viewed
from
the
rear
of
the
rack.
3.
Secure
the
crossbar
cables
placed
together
at
the
left
side
to
the
cable
Chapter
5
　
Connecting
Cables
to
the
Chassis 175
