support with hook-and-loop fast ener strips.
4.
Place the crossbar cables connected to the 1L and 1R ports of each XBU
together at the right side as viewed from the rear of the rack.
5.
If a cable holder is supplied with the rack used, secure the cross bar cables
placed together at the
right side to the cable holder of the rack.
Figure 5-17

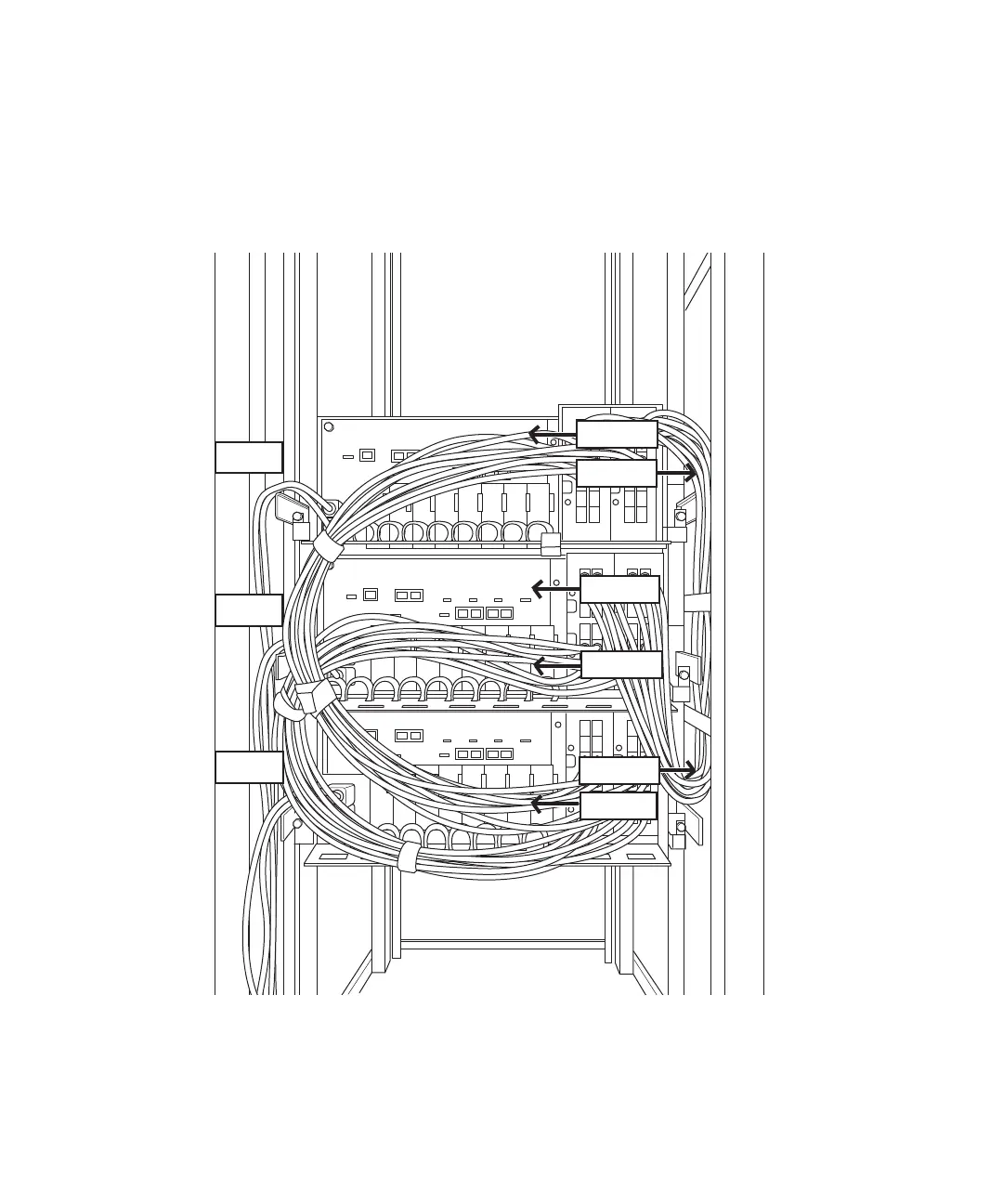

Example of stored cables (3BB configuration)
