192.168.1.z (3)
192.168.2.c (3)
192.168.1.x (1)
192.168.2.a (2)
192.168.1.y (1)
192.168.2.b (2)
XBB0X#80
LAN#0 LAN#1
Master XSCF
XBB0X#81
LAN#0 LAN#1
XSCF (Standby)
Remarks -
For XSCF LAN ports with the same number, set addresses on the same subnet.
- Configure XSCF-LAN#0 of XBBOX#80 and XSCF-LAN#0 of XBBOX#81 on the same subnet.
(See (1) in Figure 7-3.)
- Configure XSCF-LAN#1 of XBBOX#80 and XSCF-LAN#1 of XBBOX#81 on the same subnet.
(See (2) in Figure
7-3.)
Remarks -
Set different network addresses for the IP addresses of XSCF-LAN#0 and
XSCF-LAN#1.
- Configure XSCF-LAN#0 of XBBOX#80 and XSCF-LAN#1 of XBBOX#80 on different
subnets. (See (1) and (2) in Figure 7-3.)
- Configure XSCF-LAN#0 of XBBOX#81 and XSCF-LAN#1 of XBBOX#81 on different
subnets. (See (1) and (2) in Figure 7-3
.)
Remarks -
Set one takeover IP address for each pair of XSCF-LAN#0 and XSCF-LAN#1. (See
(3) in Figure 7-3.)
For details on the settings, see "7.5.3 Setting a takeover IP address."
XSCF>

setnetwork

xbbox#80-lan#0

-m

255.255.255.0

192.168.1.x
XSCF>

setnetwork

xbbox#81-lan#0

-m

255.255.255.0

192.168.1.y
XSCF>

setnetwork

xbbox#80-lan#1

-m

255.255.255.0

192.168.2.a
XSCF>

setnetwork

xbbox#81-lan#1

-m

255.255.255.0

192.168.2.b
- XSCF-LAN#0 of XBBOX#81 (standby XSCF)
- XSCF-LAN#1 of XBBOX#81 (standby XSCF)

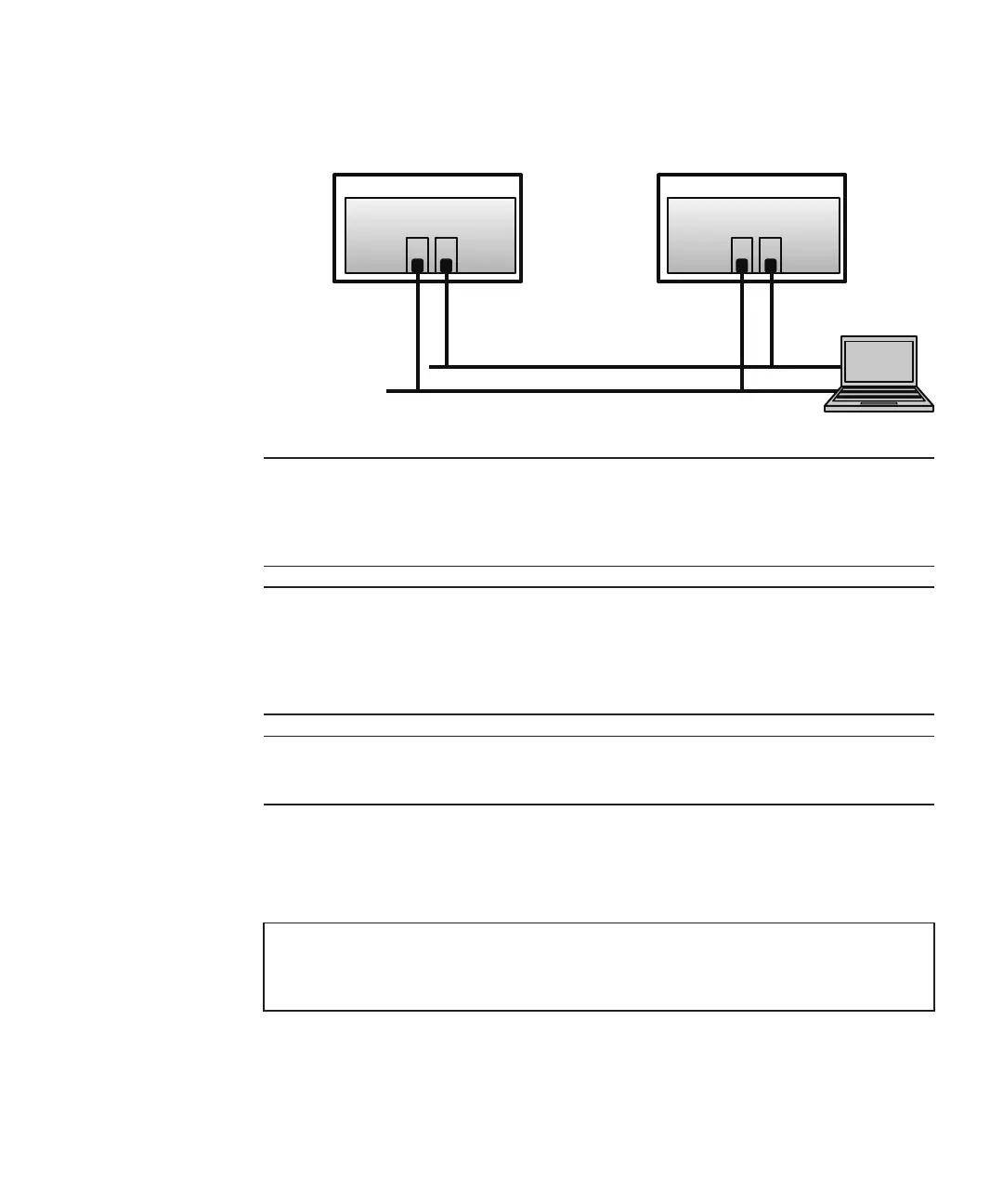

Figure 7-3
Example of XSCF-LAN settings
1.
Execute the setnetwork command with network interface information specified.
The following example sets IP addresses and net masks for XSCF-LAN#0 and
XSCF-LAN#1 of XBBOX#80 and XBBOX#81 to enable them.
Chapter 7 Making the Initial System Settings 207
