Fujitsu M10 User Manual

BB#00
Slave
XSCF
BB#01
Slave
XSCF
XBBOX#82 XBBOX#83
BB#xx
Slave
XSCF
XBBOX#80
#0 #1
Master XSCF
XBBOX#81
SPARC M10-4S (without crossbar box)
#0 #1
XSCF (Standby)
(1) (2)
(3)
(4)
Slave
XSCF
Slave
XSCF
...
SPARC M10-4S (with crossbar box)
BB#02
Slave XSCF
BB#00
#0 #1
BB#03
Slave XSCF
Master XSCF
BB#01
#0 #1
XSCF (Standby)
(1)
(2)
(5)
(5)
SSCP link network ID 3 (See (4) in Figure 7-4.)
■
Group with the master XSCF and standby XSCF:
SSCP link network ID 4 (See (5) in Figure 7-4.)

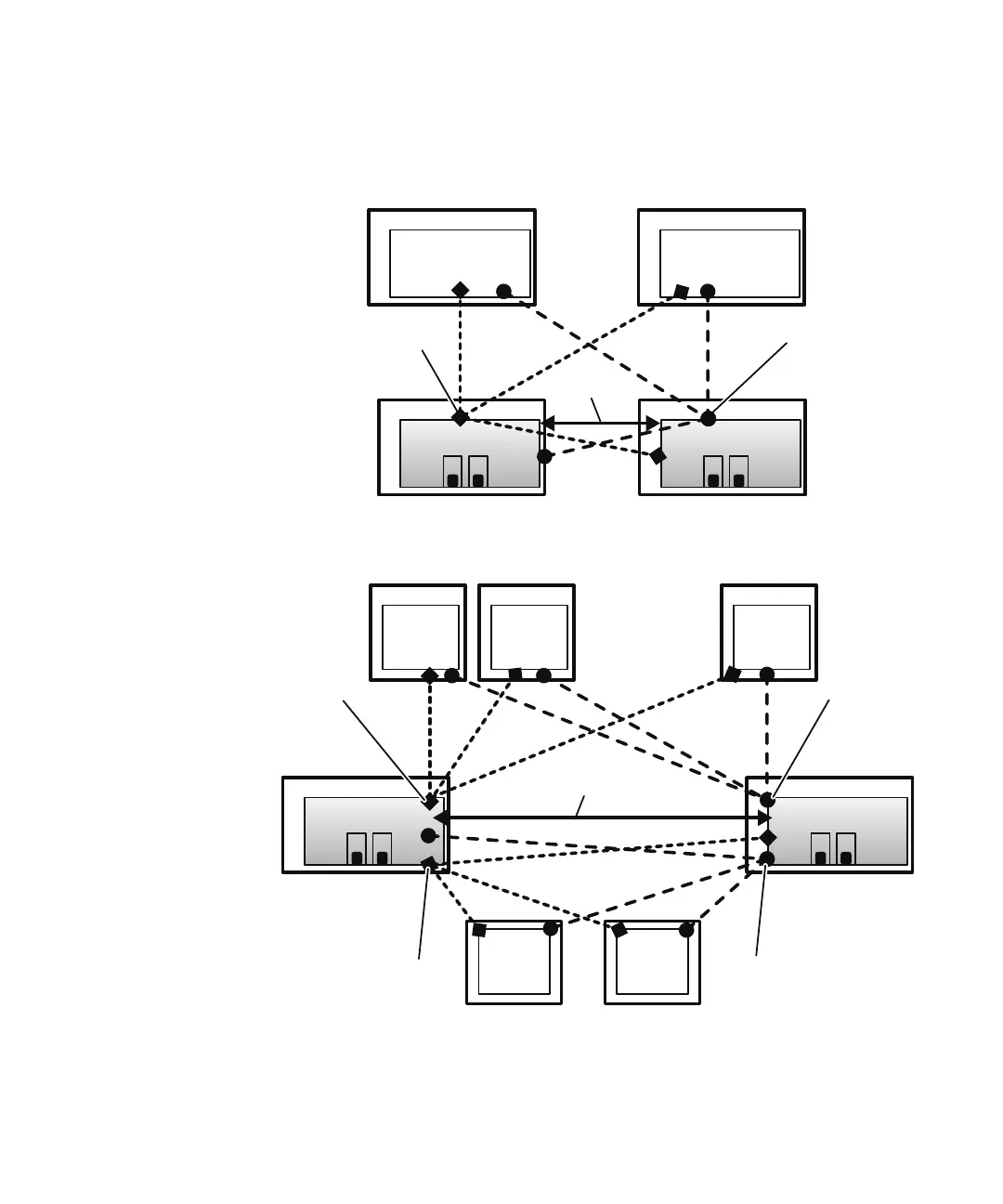

Figure 7-4
XSCF network (SSCP)
1.
Execute the showsscp command to display SSCP address information.
The following example displays information on all SSCP addresses on the
Chapter 7 Making the Initial System Settings 209
