When installing the M10-4S in an existing expansion rack, you need to remove the
protection bracket and blank panel of the mounting space (A in Figure 9-1). Note that there
are cases where no protection bracket is attached, depending on the installation. The blank
panel is secured with two M6
screws. The protection bracket is secured with four M6 screws.
A
breaker of the BB#1.", appears during command execution.
For the mounting procedure, see "3.4.2 Mounting the SPARC M10-4/SPARC
M10-4S in a rack."

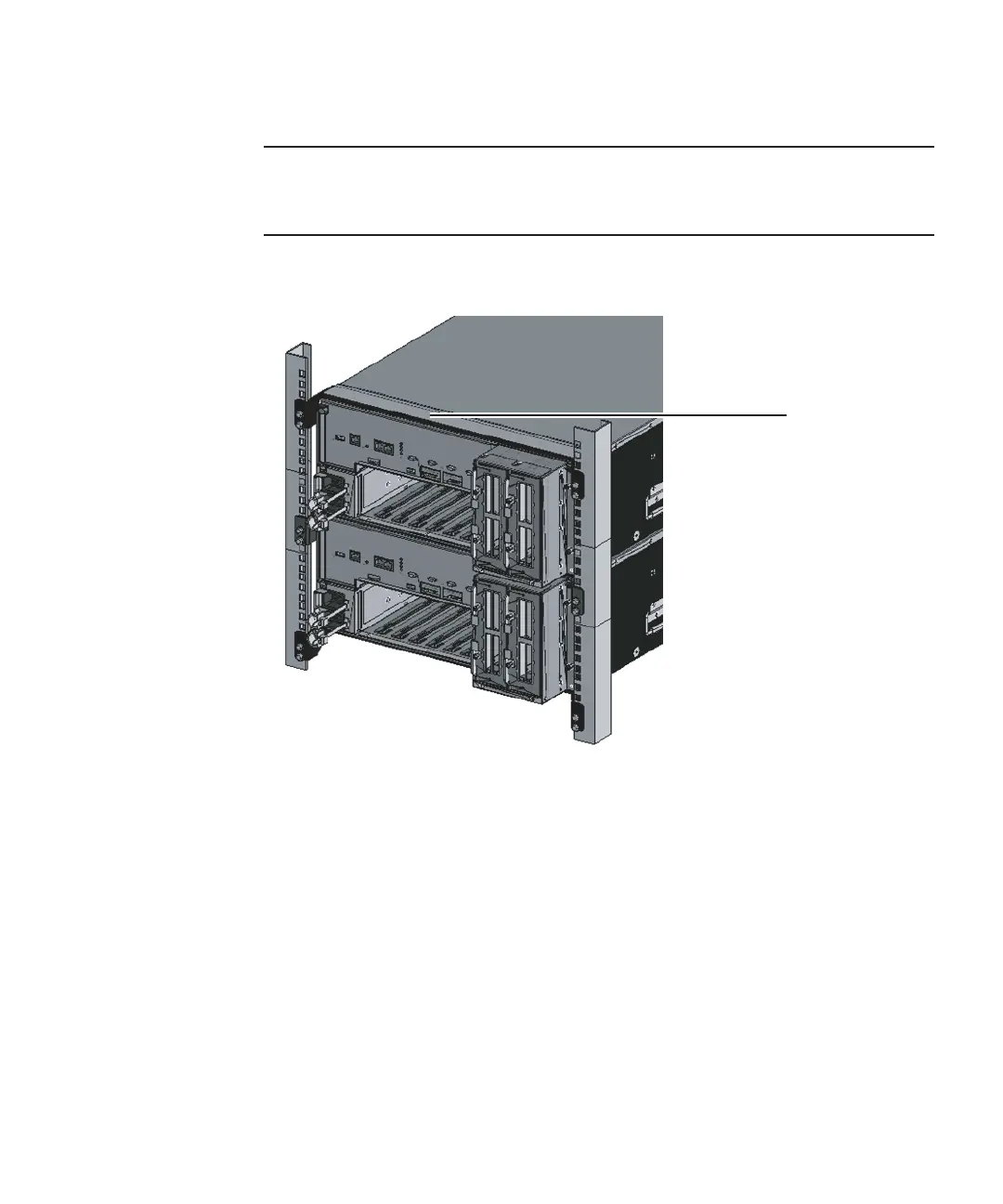

Figure 9-1
Protection bracket
c.
Set the ID of the target SPARC M10-4S.
For details, see "4.1 Setting the ID (BB-ID) Identifying a Chassis."
d.
Connect the additional
crossbar cables.
For a cable routing diagram of connections and a cable list, see "Appendix B
Cable Connection Information on Building Block Configurations."
For details on the connections in direct connections between chassis, see "4.2
Connecting Cables (for Direct Connections between Chassis)."
e.
Connect the additional XSCF BB
control cables.
For a cable routing diagram of connections and a cable list, see "Appendix B
Cable Connection Information on Building Block Configurations."
For details on the connections in direct connections between chassis, see "4.2
Connecting Cables (for Direct Connections between Chassis)."
f.
The insta llation expands the 1BB
configuration to the multiple BB
configuration. So, connect the XSCF DUAL control cable.
Chapter 9 Installing a System with a Building Block Configuration 243
