A
Remarks
- For connections through crossbar boxes, the additional crossbar cables are
secured to the expansion rack. When packed, the cables are tied to a rack column with their
connectors wrapped in a bag. Remove the cable connectors from the rack column and
unpack them. For details, see "Figure 4-13."

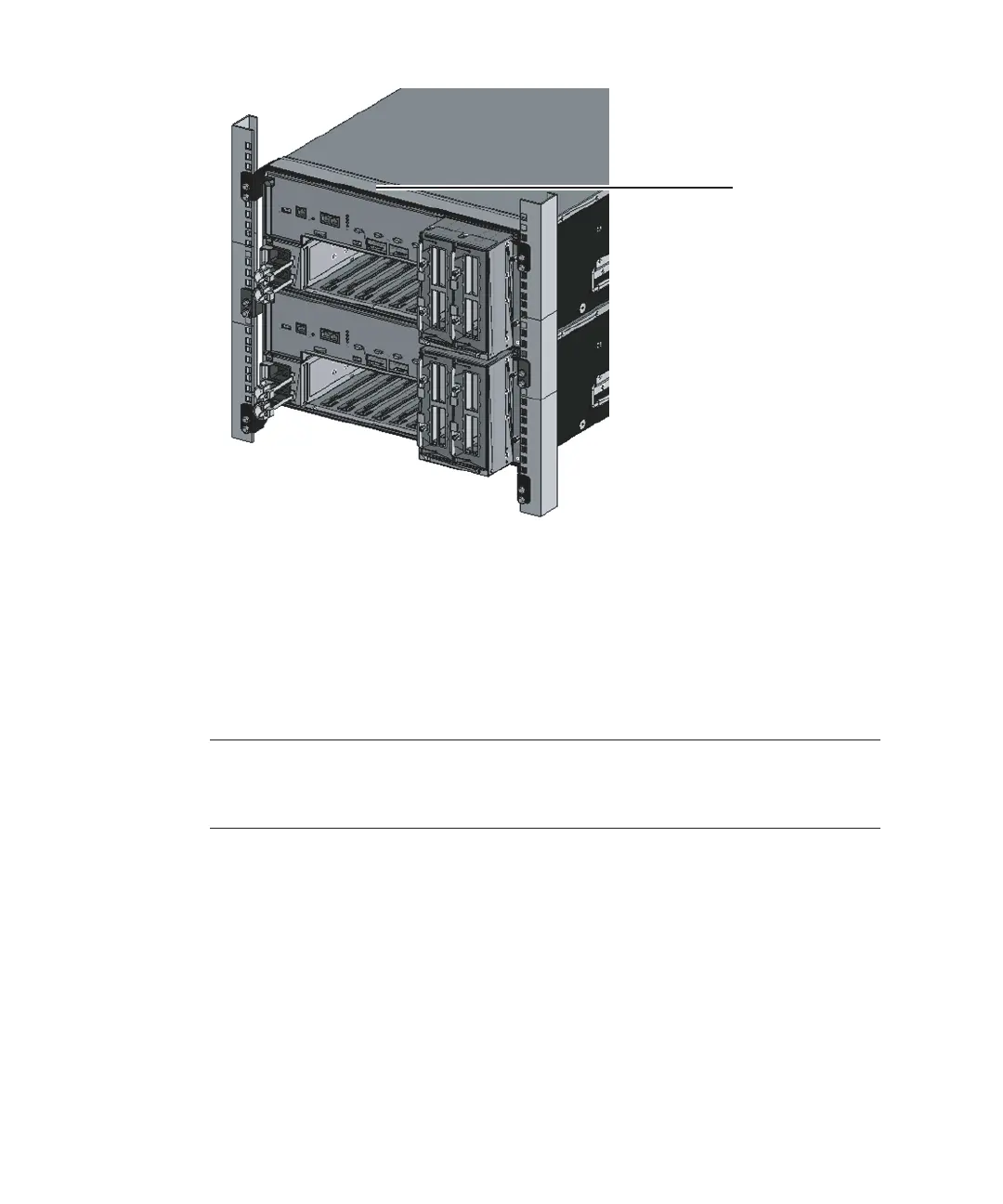

Figure 9-3
Protection bracket
6.
Set the ID of the target SPARC M10-4S.
For details, see "4.1 Setting the ID (BB-ID) Identifying a Chassis."
7.
Connect the additional crossbar cables.
For a cable routing diagram of connections and a cable list, see "Appendix B
Cable Connection Information on Building Block Configurations."
For
details on the connections in direct connections between chassis, see "4.2
Connecting Cables (for Direct Connections between Chassis)."
8.
Connect the additional XSCF BB control cables.
For a cable routing diagram of connections and a cable list, see "Appendix B
Cable Connection Information on Building Block Configurations."
For details on the
connections in direct connections between chassis, see "4.2
Connecting Cables (for Direct Connections between Chassis)."
9.
If the installation expands the 1BB configuration to up to the 4BB configuration
with direct connections between chassis, connect the XSCF DUAL control
cable.
For details, see "4.2 Connecting Cables (for Direct Connections between Chassis)."
10.
Connect LAN cables to the target SPARC M10-4S.
For details, see "5.2 Connecting Cables to the SPARC M10-4/SPARC M10-4S."
