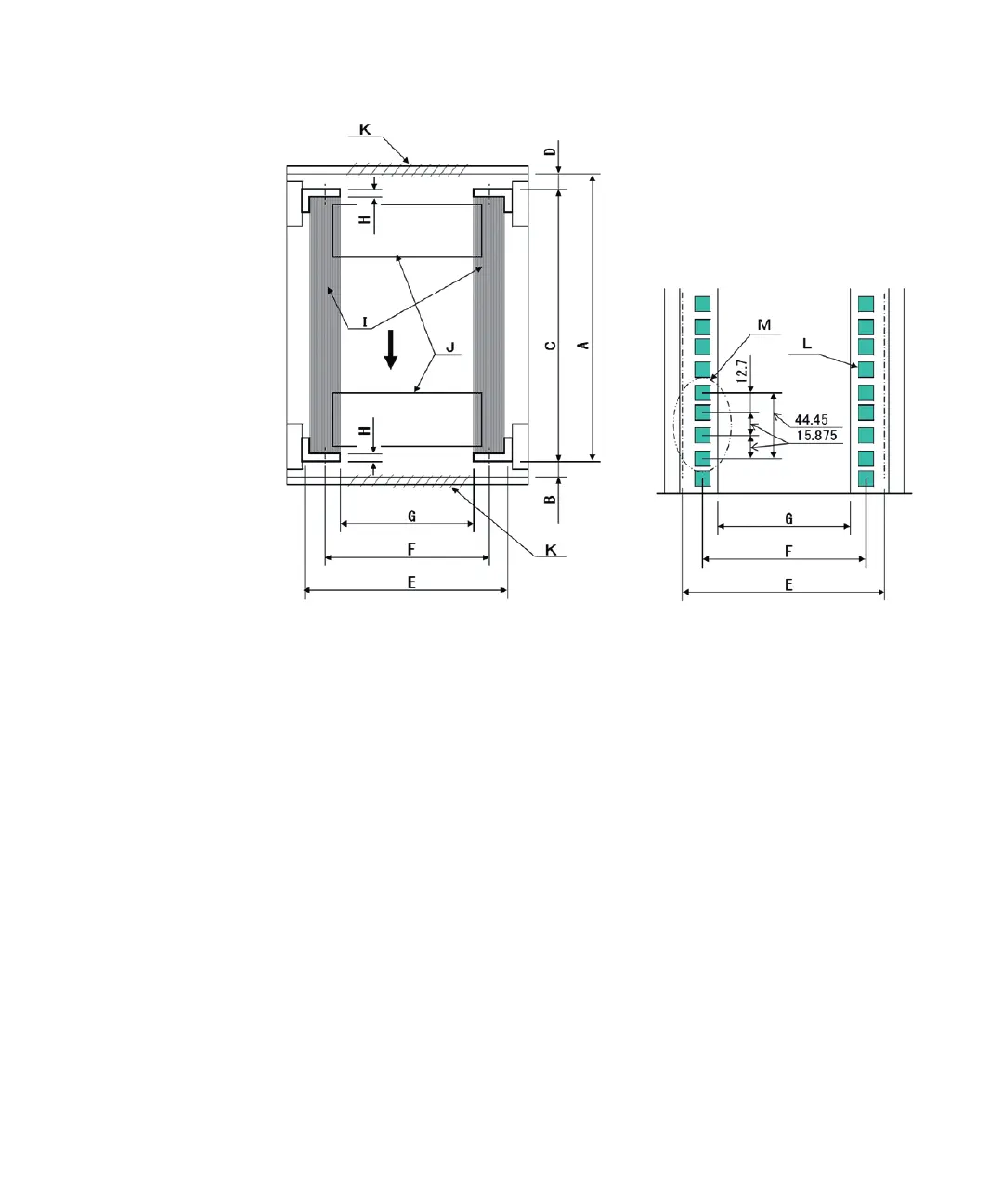

Rack horizontal diagram
(horizontal cross section)
Rack column hole diagram
FRONT
Figure 2-4
Dimensional drawings for third-party rack checks
■
Handling cables inside the rack
For maintenance work on the SPARC M10-1 and installation of its optional
components, the chassis may be pulled out from the front of the rack. If the chassis
is mounted in a third-party rack, the cable management arm may not be attached
to the rack. Even
if it is attached, it may not function normally. If the cable
management arm is not attached, the chassis cannot be pulled out from the rack as
is with cables connected. In such cases, power off the chassis and then disconnect
the cables. After that, pull out the chassis.
■
Mounting on the lowest shelf of the rack
For the SPARC M10-4 and M10-4S, the cable support at the chassis rear moves
underneath the chassis during maintenance, so do not mount the chassis on the
lowest shelf (1U) of the rack. (See Figure 2-3.)
■
Other conditions
In addition to structural conditions, the following condition must be taken into
consideration.
- Install the rack such that the temperature inside the rack meets the temperature
conditions for cooling the chassis when mounted in the rack. For details, see "2.5
Checking Environmental Conditions." Particularly, make sure that exhaust
from the chassis does not re-enter the chassis through the air intakes. This
requires measures such as covering the front and rear of empty spaces inside the
Chapter 2 Planning and Preparing for System Installation 27
