Fujitsu M10 User Manual

Rear service area
Rack
(*1)
(*1)
(*1)
(*1)
Installation area
for stepladder
800 mm
(31.5 in.)
1050 mm
(41.3 in.)
1400 mm
(55.1 in.)
1400 mm
(55.1 in.)
700 mm
(27.6 in.)
1400 mm
(55.1 in.)
1100 mm
(43.3 in.)
800 mm
(31.5 in.)
900 mm
(35.4 in.)
800 mm
(31.5 in.)
1100 mm
(43.3 in.)
Front service area
(*2)
*1 This area is required for using a stepladder, and it differs depending on the stepladder used. Referring to the
above figure, ensure that the service area is appropriate to the stepladder used. This area is required on either the
left or right side.
*2 To mount a chassis on the rack,
an area with a depth of 1,200 mm (47.2 in.) is required in front of the rack.
If there is a possibility that a chassis will be added later, secure an area with a depth of 1,200 mm (47.2 in.) in front
of the rack.
Figure 2-6

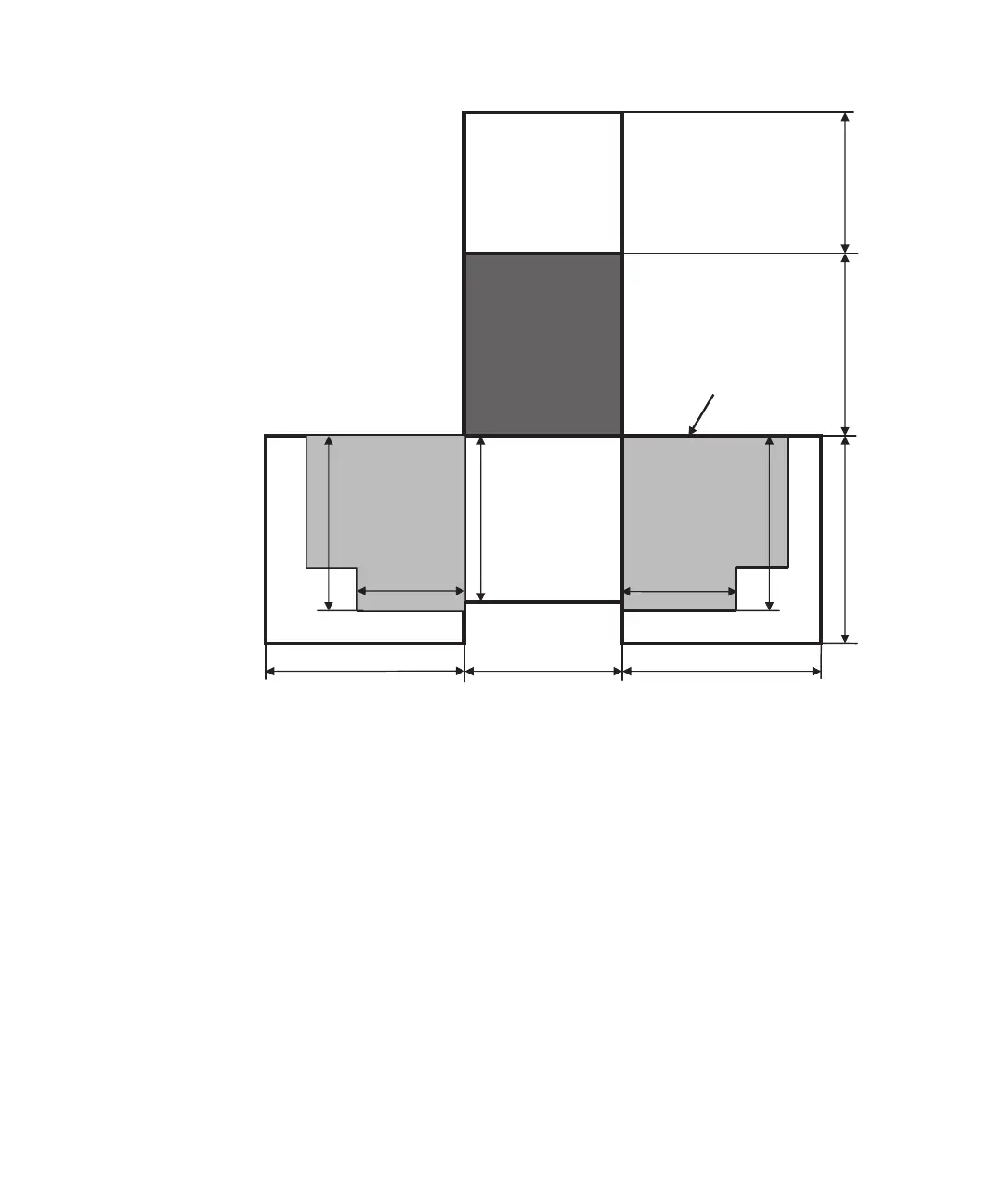

Example of service areas for the SPARC M10-1 when using a
stepladder (top view)
Chapter 2 Planning and Preparing for System Installation 29
