Fujitsu M10 - Page 44

600 mm
(23.6 in.)
700 mm
(27.6 in.)
600 mm
(23.6 in.)
Rear service area
Front service area
Rack
900 mm
(35.4 in.)
1050 mm
(41.3 in.)
1200 mm
(47.2 in.)

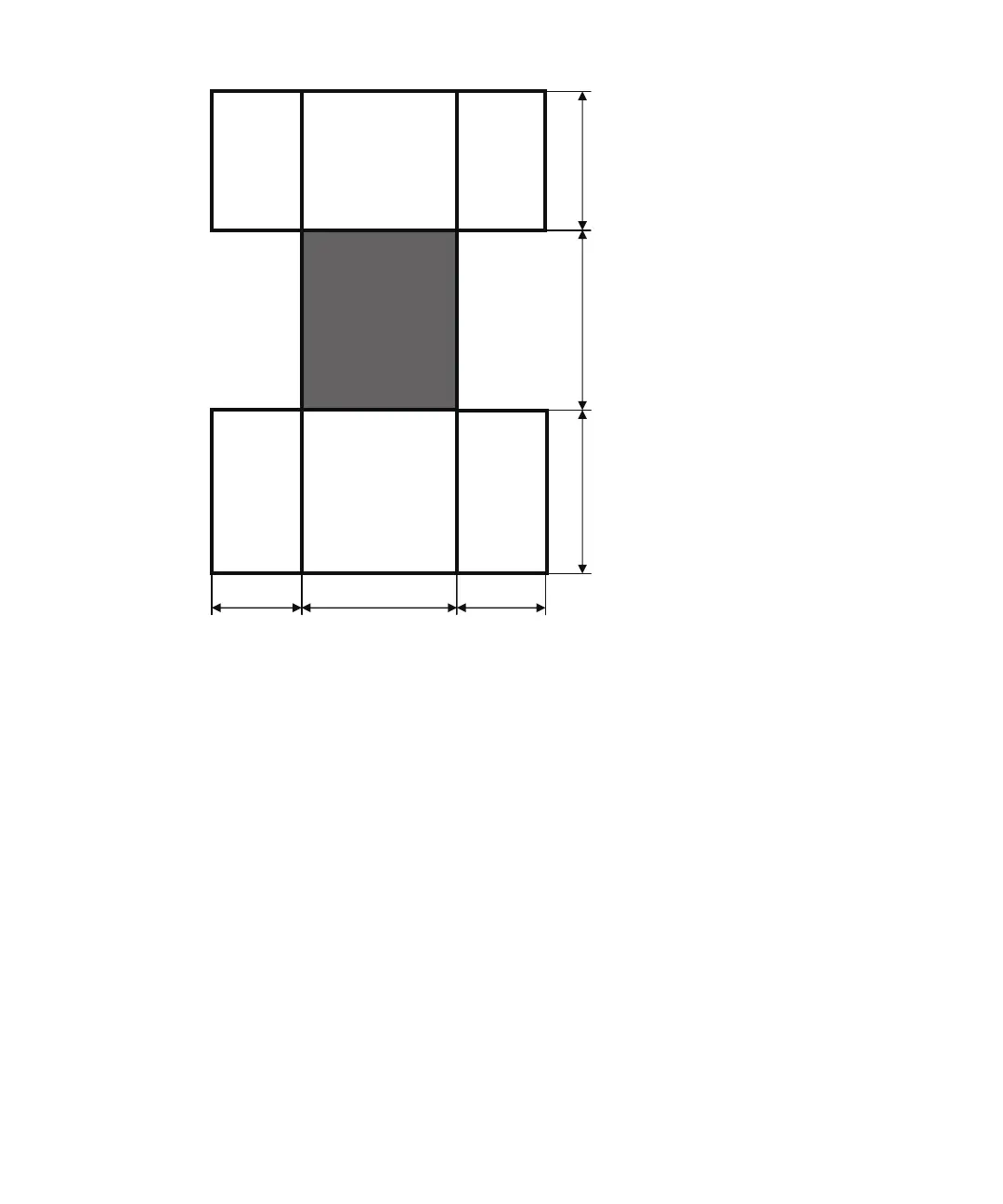

Figure 2-7
Example of service areas for the SPARC M10-4/M10-4S (top view)
Fujitsu M10/SPARC M10 Systems Installation Guide
･
