Hot-plug Hard Disk Drives Installing/Removing a HDD/Dummy Module
Installing the HDD module

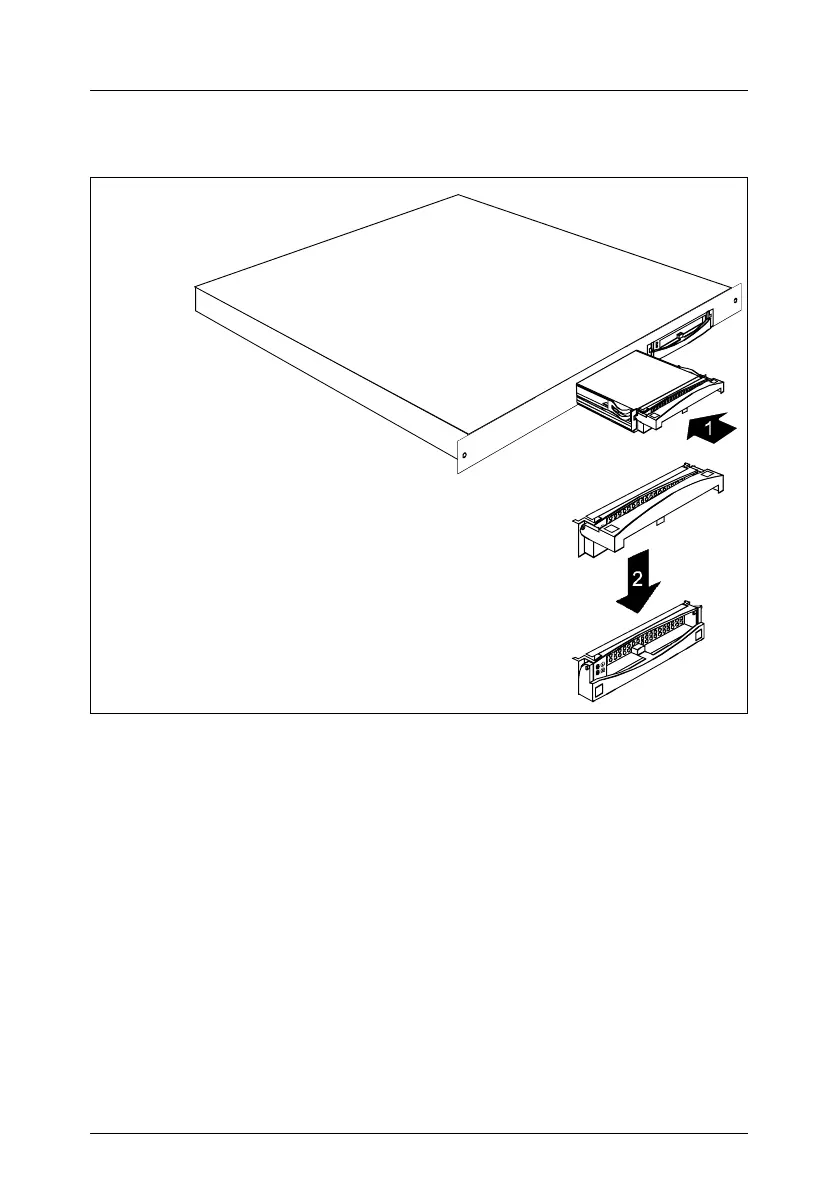

Figure 14: Installing the hot-plug HDD module
Ê Insert the HDD module with the opened handle carefully into the empty slot
(1) until it stops.
Ê Push the module handle completely in the original position (2) until the
locking mechanism engages.
